Overview

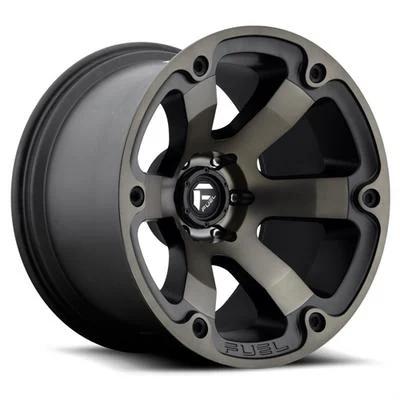

The FUEL Off-Road Beast D564 17×9 is a 17-inch aluminum spoke wheel with a 6 on 5.5 bolt pattern and part number MHTD56417908350. It comes in black with a machined finish and dark tint, measures 9 inches wide and carries an offset of 1.
Brand copy describes Fuel wheels as available in nearly any bolt pattern and offset combination. An offset of 1 places the mounting face close to the wheel’s centerline, so match the 6 on 5.5 pattern and 108 center bore to your hub before mounting.
Key features
- Aluminum construction
- Spoke style with a machined finish
- Black machined finish with dark tint
- 17-inch diameter and 9-inch width
- Offset 1 and backspacing 5
Clearance and spacer choices
Offset controls where the mounting face sits relative to the wheel’s centerline. A low positive figure keeps the wheel closer to the hub, which can change the inner clearance behind the wheel and near the brake caliper. If a wider tire is planned, check the inner edge against suspension parts and the frame before buying.
Wheel spacers are sometimes used to solve clearance problems, but they add leverage on wheel bearings and studs. Consider a different offset or tire size first, and if a spacer is used, confirm stud length and thread engagement.
- Measure hub bore and bolt pattern first
- Check inner clearance at full lock
- Confirm stud length before using any spacer
- Keep the mounting surface clean and free of rust
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD56417908350 |
| Model | Beast D564 |
| Wheel diameter | 17 Inches |
| Wheel width | 9 Inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | 1 |
| Backspacing | 5 |
| Style | Spoke |
| Finish | Machined, black with dark tint |
| Construction | Aluminum |
| Fitment label | Universal Fit |
Vehicle fitment
This wheel has no listed vehicle years, makes or models. The Universal Fit label does not identify a vehicle, so measure a 6 on 5.5 hub and 108 bore on your truck first.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
At an offset of 1, the wheel sits differently in the wheel well than a negative-offset wheel, so check tire and brake clearance with the wheel mounted. If the 108 center bore is larger than your hub, a hub-centric ring fills the gap.
What’s included
One 17×9 wheel is supplied. Tires, lug nuts and center caps need to be sourced separately.
Not included: tires, lug nuts and center caps.
