Overview

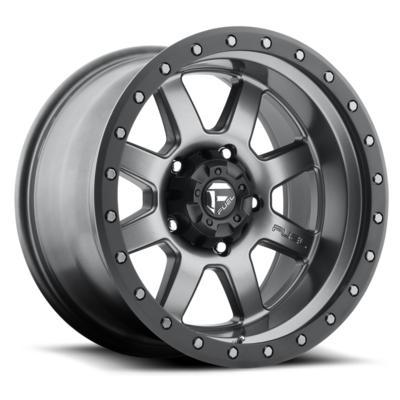

FUEL Off-Road’s D552 Trophy in matte gunmetal, part number MHTD55217858345, is a 17 by 8.5 inch spoke wheel with a 6 on 5.5 bolt pattern. The 108 center bore and -6 offset are the figures to match first.
Backspacing is 4.5 and the construction is aluminum. A negative offset moves the wheel inward toward the suspension, so compare this figure carefully with your current wheels before choosing.
Key features
- 6 on 5.5 bolt pattern
- Center bore of 108
- Offset of -6
- Backspacing of 4.5
- Spoke style in matte gunmetal
- Aluminum construction
Offset and clearance
Offset sets the position of the wheel’s mounting face relative to the hub, and that position changes how the tire sits against the fender and suspension. An offset different from your current wheels can move the tire inward or outward, so compare the figure with what you run now before choosing. Backspacing works with offset to define the inner clearance, which matters for brake calipers and control arms. Matte gunmetal spokes show dirt more than gloss, so plan on regular washing.
Test fitting is the reliable check. Mount one wheel, turn the steering fully both ways, and look for contact at the fender, caliper and suspension. Recheck after any change in tire size or ride height. When buying lug nuts, pick a seat style that suits the wheel’s lug holes, and tighten them evenly in a star pattern. Retorque after the first short drive.
- Test fit one wheel before mounting a set
- Check caliper clearance at full steering lock
- Retorque lug nuts after the first drive
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD55217858345 |
| Wheel diameter | 17 Inches |
| Wheel width | 8.5 Inches |
| Style | Spoke |
| Finish | Gunmetal |
| Construction | Aluminum |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -6 |
| Backspacing | 4.5 |
Vehicle fitment
This is a universal fit wheel, so it is not built for one vehicle. Measure your hub and compare the 6 on 5.5 bolt pattern and 108 center bore before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Select lug nuts whose seat style suits this wheel. Check clearance against the -6 offset and brake calipers before mounting.
What’s included
Plan to buy tires and lug nuts separately from the wheel. Not included: tires and lug nuts.
