Overview

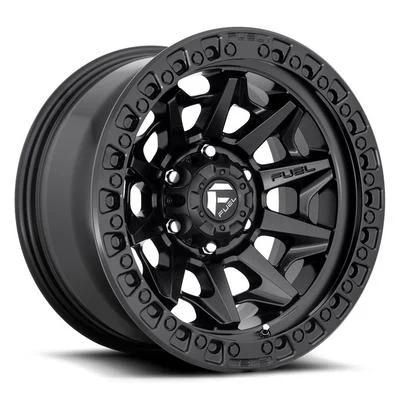

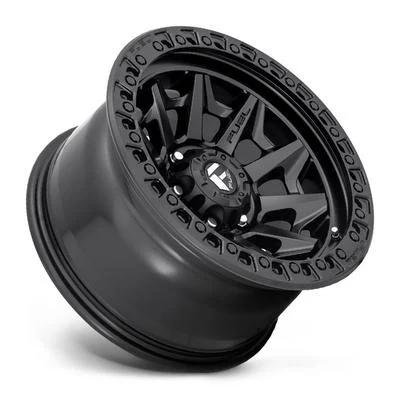

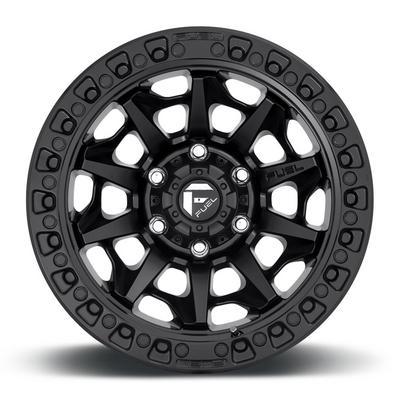

The FUEL Off-Road Covert D694 wheel, part number MHTD69417907550, is a 17-inch by 9-inch aluminum mesh-style wheel in matte black. It has a 5 on 5 bolt pattern and a 72 center bore.
Covert D694 is the model name. This wheel has an offset of 1 and backspacing of 5.04, and the brand offers its wheels in many bolt pattern and offset mixes. Compare the measurements with your hub before deciding.
Key features
- 17 by 9 inch aluminum mesh-style wheel
- Matte black finish
- 5 on 5 bolt pattern
- Center bore of 72
- Offset of 1
- Backspacing of 5.04
Mesh wheels and daily use
Mesh-style wheels show more of the brake components and hardware than solid designs, so the brake caliper and rotor area is visible through the openings. That also means brake dust and road grime can build up in the spaces between the mesh, so a regular rinse keeps the finish looking clean. Matte finishes show scratches differently than gloss, so use a soft cloth and a mild cleaner rather than abrasive pads.
Before a mesh wheel goes on, check the mounting face and bore for damage. Inspect the spokes and barrel lip after trail use for cracks or bends, since debris strikes are common on mesh designs. Torque lug nuts evenly and recheck them after the first drives.
- Rinse between the mesh openings
- Use mild cleaner on matte finishes
- Inspect spokes after trail use
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD69417907550 |
| Model | Covert D694 |
| Wheel diameter | 17 Inches |
| Wheel width | 9 Inches |
| Style | Mesh |
| Finish | Matte Black |
| Construction | Aluminum |
| Bolt pattern | 5 on 5 |
| Offset | 1 |
| Backspacing | 5.04 |
| Center bore | 72 |
Vehicle fitment
No vehicle is confirmed for the Covert D694 in this size. Measure your hub against the 5 on 5 pattern and confirm the year, model and trim before buying.
Confirm your vehicle’s bolt pattern, center bore and offset before ordering.
Installation notes
The 72 center bore must be at least as large as the hub diameter, so confirm that before mounting. Brake and fender clearance depends on the offset of 1 and the 9-inch width.
What’s included
This wheel is sold alone, so lug nuts, center caps and tires are a separate purchase.
