FUEL Off-Road D744 Saber Wheel, 22x10 with 8 on 6.5 Bolt Pattern – Black / Milled – D74422008247

FUEL Off-Road

Shop FUEL Off-Road Wheels 22x10 8x6.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road D744 Saber 22×10 wheel, part number MHTD74422008247
  • 8 on 6.5 bolt pattern with a 125 center bore
  • Offset -18 and backspacing 4.79
  • Universal Fit marking; no vehicle is named

Description

Overview

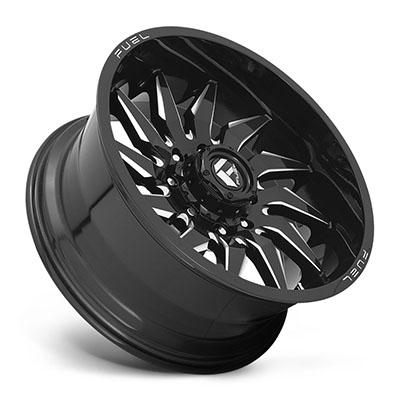

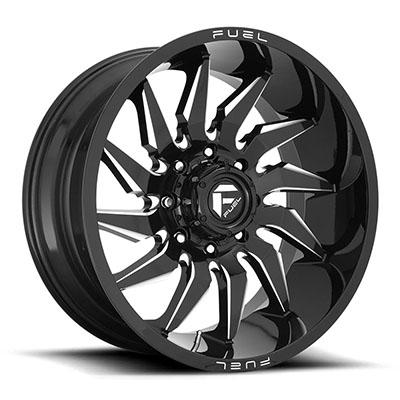

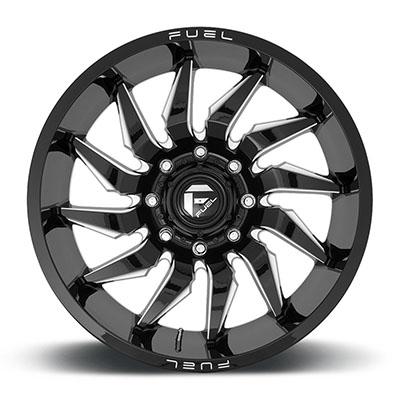

The FUEL Off-Road D744 Saber 22×10 (part MHTD74422008247) is a 22-inch gloss black milled aluminum wheel with an 8 on 6.5 bolt pattern. It is a directional wheel with a center bore of 125, an offset of -18 and a backspacing of 4.79.

FUEL Off-Road lists Universal Fit for this wheel rather than naming vehicles. Because the offset is negative, the mounting face sits further outboard, so fender and suspension clearance should be checked against the hub measurements.

Key features

  • 8 on 6.5 bolt pattern
  • 22-inch diameter and 10-inch width
  • Offset of -18 and backspacing of 4.79
  • Center bore of 125
  • Gloss black milled directional face

Before you buy

A directional wheel is built to turn in one direction, so the tire must be mounted to match the rotation arrow on the sidewall. Mounting it backward can affect water evacuation and noise. Tire shops that work with directional wheels usually check the arrow before balancing. Ask them to mark the sidewall so future rotations keep the tire on the correct side of the vehicle.

Negative offset pushes the wheel outward, so the tire sits closer to the outer edge of the fender and suspension components. Worn ball joints, bushings or a lowered ride height can reduce clearance further over time. Inspect the inner tire edge and the fender liner after the first highway and trail runs to catch rubbing early.

  • Mark the tire sidewall arrow before mounting
  • Re-torque lug nuts after the first few drives
  • Inspect the bead seat for corrosion at each tire change

Specifications

Brand FUEL Off-Road
Part number MHTD74422008247
Series D744 Saber
Style Directional
Finish Gloss Black Milled
Construction Aluminum
Wheel diameter 22 inches
Wheel width 10 inches
Bolt pattern 8 on 6.5
Center bore 125
Offset -18
Backspacing 4.79

Vehicle fitment

No make, model or year is given for this wheel. Universal Fit means the bolt pattern, center bore and offset must match the hub, not a vehicle name.

A wheel with a different offset or bolt pattern will not seat correctly even when the diameter matches. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Measure the 8 on 6.5 pattern and 125 center bore against the hub before mounting. Because the offset is -18, recheck fender and brake clearance once the wheel is on, and turn the steering lock to lock to look for rubbing.

What’s included

This is the wheel only. Source tires, lug nuts and center caps separately and check them before mounting.

SKU: MHTD74422008247 Categories: ,

Questions & Answers

Is part MHTD74422008247 made for a specific vehicle?

No vehicle is named for this wheel, which carries a Universal Fit designation. Match the 8 on 6.5 pattern, 125 center bore and -18 offset to the hub before fitting.

How large is the D744 Saber 22x10?

It measures 22 inches across and 10 inches wide, with a center bore of 125, an offset of -18 and a backspacing of 4.79. The offset is negative, so clearance is worth checking after mounting.

Does the wheel come with tires or fasteners?

No. This is the wheel only. Tire size, lug nuts and caps are not covered here, so check those separately before mounting.

Why does negative offset matter for clearance?

Negative offset places the mounting face further outboard, which can change clearance at the fender, suspension and brake caliper. Check these after the first mount and again at full steering lock.

Should I use hub-centric rings with this wheel?

Often yes, when the center bore is larger than the hub. Rings fill the gap so the wheel centers on the hub rather than on the lug studs, which helps reduce vibration. Confirm the ring size against your hub before ordering.
