Overview

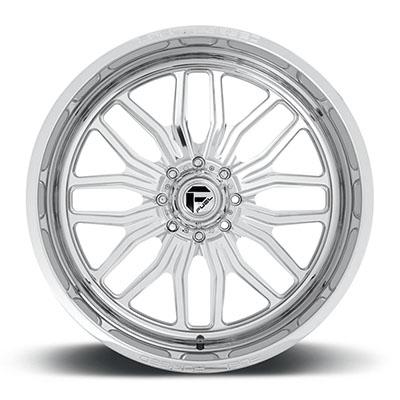

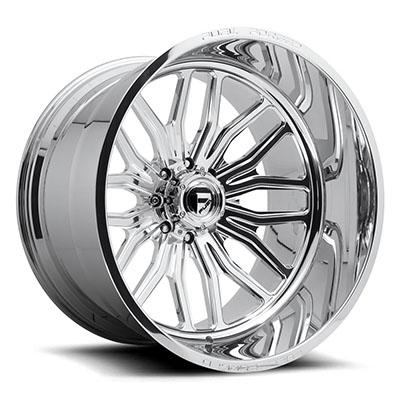

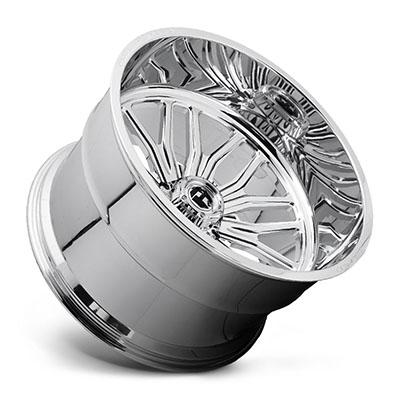

The FUEL Off-Road FFC66 is a 20×8.25 inch polished aluminum wheel with an 8 on 200 bolt pattern and part number MHTDF66208292. It has an offset of 105 and a backspacing of 8.76, and it is made for trucks and SUVs that use that bolt pattern.
Fuel Off-Road says its wheels come in many bolt pattern and offset combinations, and the FFC66 is one of the sizes in that range. Check the bolt pattern, offset and backspacing against your own vehicle before fitting, because those three figures decide whether the wheel sits correctly.
Key features
- Polished finish on aluminum construction
- 20-inch diameter with 8.25-inch width
- 8 on 200 bolt pattern
- Offset of 105 and backspacing of 8.76
- FFC66 style from Fuel Off-Road
Tire size and clearance
Tire size shapes how the FFC66 sits under the vehicle. A larger tire increases overall diameter and can push the tire toward the fender or suspension, while a narrower tire leaves more room but may change the look. Before choosing a tire, compare its diameter and width with the clearance you measured using the current set of tires.
Offset and backspacing work together with tire width. A positive offset keeps the wheel tucked inward, which is common for stock height and street use, while a lower offset pushes the tire outward for a wider stance. Check inner clearance to the control arms and brake components as well as outer clearance to the fender.
Polished aluminum needs regular cleaning to keep its shine. Use a non-acidic wheel cleaner and a soft brush, and rinse with plenty of water to prevent spots. Check the lug nuts after the first few drives and inspect the wheel lip after any curb contact.
- Compare tire diameter with the current set
- Measure inner and outer clearance
- Use a soft brush on polished spokes
- Recheck torque after the first drives
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTDF66208292 |
| Style | FFC66 |
| Wheel diameter | 20 inches |
| Wheel width | 8.25 inches |
| Bolt pattern | 8 on 200 |
| Offset | 105 |
| Backspacing | 8.76 |
| Finish | Polished |
| Construction | Aluminum |
Vehicle fitment
No vehicle list is given for this wheel. The manufacturer labels it Universal Fit, but a universal label does not confirm that an 8 on 200 bolt pattern, offset 105 and backspacing 8.76 suit your truck or SUV.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Offset and backspacing control how far the wheel sits inside or outside the fender and how much room it has around the brakes and suspension, so check clearance with your tire size before mounting.
What’s included
Check the box contents on arrival before mounting the wheel.
