Fox Racing Shox 3.0 Factory Series Bypass Shocks – 883-02-047

Fox Racing Shox

Out of stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 3:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear 3.0 Factory Series bypass shock, part number 883-02-047, sold as a pair
  • Fits 2010–2014 Ford F-150 SVT Raptor
  • Three independently tunable bypass zones; 2.5-inch piggyback reservoir
  • Direct bolt-on; 7/8 inch shaft; Teflon lined spherical bearings

Description

Overview

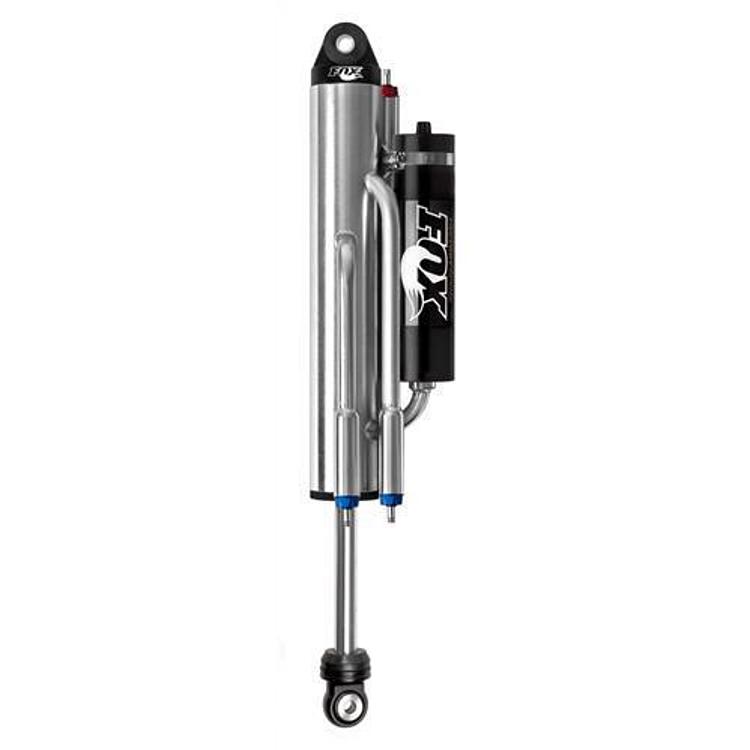

The Fox Racing Shox 3.0 Factory Series Bypass shock, part number 883-02-047, is a rear shock sold as a pair for the 2010–2014 Ford F-150 SVT Raptor. Fox designed it as a direct bolt-on replacement with a 3.0 internal bypass body.

It has three independently tunable bypass zones, so ride control can be adjusted for different terrain. Each shock uses a 2.5-inch diameter piggyback reservoir, Teflon lined spherical bearings and Viton seals.

Many off-road owners pair these shocks with leaf springs and bump stops. Those parts are not included.

Key features

  • Three independently tunable bypass zones
  • 3.0 internal bypass design
  • Piggyback reservoir, 2.5 inch diameter
  • Smooth-bore alloy bodies in anodized 6061-T6 aluminum
  • Teflon lined spherical bearings
  • Viton seals
  • 7/8 inch shaft
  • Direct bolt-on mounting

Off-road use and tuning

Rear shocks on a high-speed truck work hardest on rough, repeated impacts, so the damping setup affects both control and comfort. A bypass design routes fluid through separate passages, which helps the shock keep damping consistent after extended use on rough terrain. Adjusting damping for different surfaces means choosing a setting that suits the terrain you drive most.

Leaf springs and bump stops work with the rear shocks rather than replacing them. A leaf spring upgrade changes load and ride height, so the shocks should be checked afterward to confirm they still have usable travel. Bump stops limit compression at the end of travel, so worn stops can allow a harsh hit.

  • Check shock eyelets and bushings after hard landings
  • Inspect for an oil film on the shaft
  • Keep the reservoir mount free of road debris

Specifications

Brand Fox Racing Shox
Part number 883-02-047
UPC 70000623582
Shock series 3.0 Bypass
Mounting location Rear
Shaft diameter 7/8 inch
Reservoir Piggyback, 2.5 inch diameter
Body Smooth-bore alloy, anodized 6061-T6 aluminum
Bearings Teflon lined spherical
Seals Viton
Hydraulic or gas charged Gas charged
Lift height 0 to 2 in. lift
Fitment type Direct fit
Sold as Pair

Vehicle fitment

It fits the 2010–2014 Ford F-150 SVT Raptor only.

Standard F-150 models from these years are not in this list. Confirm your vehicle’s year, model and trim before ordering.

What’s included

A pair of rear shocks. Not included: the aftermarket leaf springs and bump stop kits often used with these shocks off-road.

SKU: FOX883-02-047 Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 41.00 × 2.50 × 2.50 in
brands

Fitment

VehicleYearsTrims
Ford F-1502010–2014SVT Raptor

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is Fox 883-02-047 a front or rear shock?

It is a rear shock. It is sold as a pair, and it fits the 2010–2014 Ford F-150 SVT Raptor. Its shock series is 3.0 Bypass.

Does it fit a 2012 Ford F-150?

Only the SVT Raptor fits. Standard F-150 models from 2012 are not covered, so confirm fit for your vehicle's year, model and trim before ordering.

Does this shock require other parts?

Installation parts beyond the pair are not included. Aftermarket leaf springs and bump stop kits are often added for off-road use.

Are bump stops needed with bypass shocks?

Bump stops are not a substitute for shocks, but they protect the shock and suspension at the end of compression. Whether a truck needs them depends on the springs and the terrain, so inspect the existing stops before deciding.
