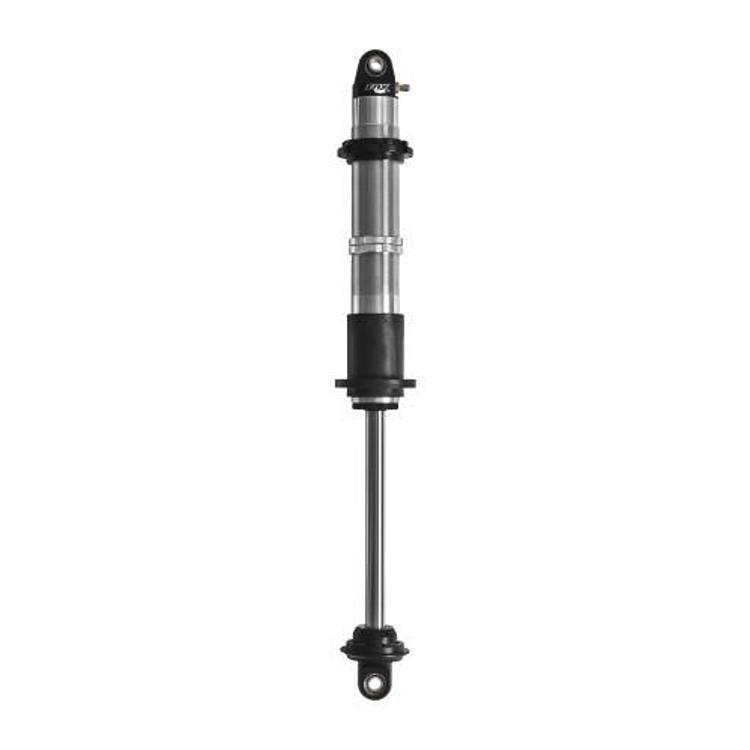

Fox Racing Shox 2.0 Series Coilover Emulsion Shock – 980-02-011

Fox Racing Shox

Shop Fox Racing Shox Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fox Racing Shox 2.0 Series coilover emulsion shock, part number 980-02-011
  • Non-reservoir, gas charged design with 14.0 inches of travel
  • Extended length 35.10 inch, collapsed length 21.15 inch
  • 1/2 inch bolt and Heim mounting, 7/8 inch shaft

Description

Overview

The Fox Racing Shox 2.0 Series Coilover Emulsion Shock, part number 980-02-011, is a non-reservoir gas charged coilover shock with 14.0 inches of travel, a 35.10 inch extended length and a 21.15 inch collapsed length.

Spring and shock pairings are developed with leading spring manufacturers for daily driving through weekend off-road use. It is a universal fit coilover, so measure your mounting points before choosing it.

Key features

  • Non-reservoir design
  • Gas charged construction
  • 14.0 inches of travel
  • 7/8 inch shaft diameter
  • 1/2 inch bolt and Heim mounting

Measuring before you buy

A coilover is only as useful as its fit, so measure the installed length, the shaft diameter and the mount hardware before ordering. Spring rate, ride height and damping work together, and changing one can shift the others. Compare the spring seat and lower mount position on your vehicle before buying a replacement.

Coilover setups are often used with lift or lowering changes, which alter the working length. Recheck clearance at full bump and full droop after any change. If the design uses bushings or Heim joints, keep them free of grit and replace worn joints before they play into the mounting holes.

  • Measure the installed length
  • Confirm shaft diameter and bolt size
  • Check the spring seat and lower mount position

Specifications

Brand Fox Racing Shox
Part number 980-02-011
UPC 70000587657
Series 2.0 Series Coilover Emulsion Shock
Body diameter 2.0 inch
Travel 14.0 inch
Shaft size 7/8 inch diameter
Extended length 35.10 inch
Collapsed length 21.15 inch
Reservoir None (non-reservoir)
Mounting 1/2 inch bolt / Heim
Finish Black and zinc
Charge Gas charged

Vehicle fitment

Vehicle applications are not established for this coilover, so confirm fit for your year, model and trim before ordering. Compare the 35.10 inch extended and 21.15 inch collapsed lengths with your current shock.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check that your mounting points accept a 1/2 inch bolt and Heim joint before installing, and confirm the collapsed and extended lengths leave room for your suspension travel.

What’s included

Check the package contents against your installation before starting.

SKU: FOX980-02-011 Category:

Specification

Shipping weight 15.00 lbs
Package dimensions 30.00 × 4.50 × 2.50 in
brands

Questions & Answers

Is part 980-02-011 a non-reservoir coilover?

Yes. Part 980-02-011 is a non-reservoir Fox Racing Shox 2.0 Series coilover emulsion shock with gas charged construction. It has a 2.0 inch body diameter, a black and zinc finish and UPC 70000587657.

Will this coilover fit my vehicle?

Fit depends on measurement, since no specific vehicles are established for this coilover. Compare the 35.10 inch extended and 21.15 inch collapsed lengths with your current shock, and confirm fit for your vehicle's year, model and trim before ordering.

How much travel and what shaft diameter does it have?

The coilover has 14.0 inches of travel and a 7/8 inch shaft diameter. Its body diameter is 2.0 inches, and it mounts with a 1/2 inch bolt and Heim mounting.

Does the coilover have a reservoir or come with hardware?

It is a non-reservoir design. Check the package contents against your installation before starting, and confirm the 1/2 inch bolt and Heim mounting fits your mounts.

Can I use a coilover with my existing springs?

Usually the spring and shock are matched as a pair. Using unrelated springs can change ride height and damping, so confirm the spring rate and seat position match the coilover before installing it.
