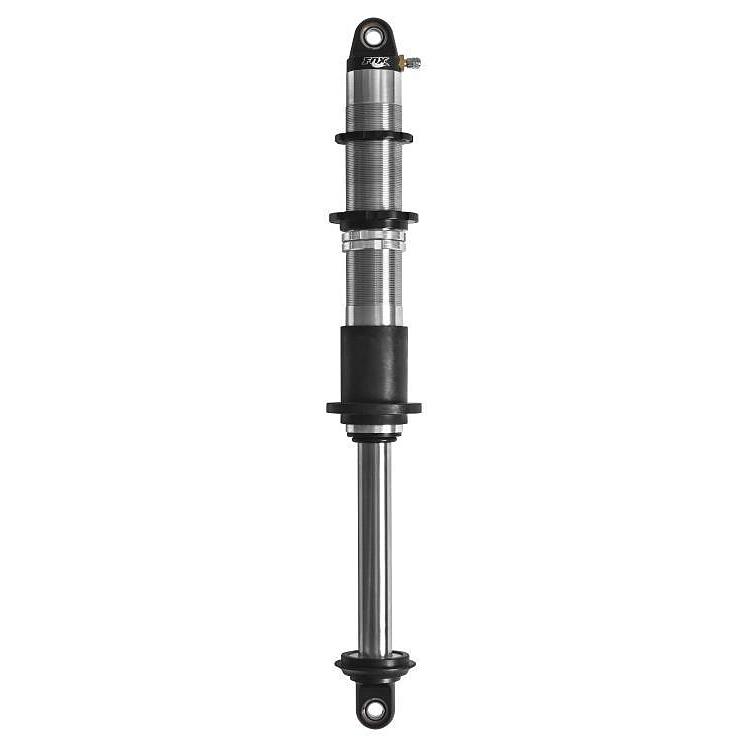

Fox 2.0 Factory Series Smooth Body Reservoir Shock

Fox Racing Shox

Shop Fox Racing Shox Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fox 2.0 Factory Series smooth body reservoir shock, part number 980-02-049
  • Extended length 18.34 in., collapsed length 11.84 in., stroke 6.5 in.
  • Zinc plated seamless alloy body with black anodized aluminum components
  • External reservoir system for heat dissipation
  • Compare dimensions before choosing; confirm fit for your vehicle first.

Description

Overview

The Fox 2.0 Factory Series smooth body reservoir shock, part number 980-02-049, has an external reservoir that helps it dissipate heat during off-road use. Its zinc plated seamless alloy body and black anodized aluminum components are designed for vehicle-specific use.

Compare the 18.34 in. extended and 11.84 in. collapsed lengths with your current shock before choosing this model.

Key features

  • External reservoir system that dissipates heat quickly
  • Zinc plated seamless alloy body
  • Black anodized CNC machined aluminum components
  • Teflon-lined, heat-treated spherical bearings
  • Redundant sealing system for long-lasting performance
  • 100% serviceable and tunable for a longer lifespan

Length, stroke and clearance

Shock length and stroke decide how far the suspension can travel before the shock reaches its limit, and they also decide whether the shock fits between the mounts at ride height. Measuring the existing shock at full compression and full extension gives the clearest reference. Note any spot where the shock body or reservoir could strike the frame, body or tire.

External reservoirs add package size, so check clearance near the steering linkage, exhaust and wheel well. A reservoir that sits too close to moving parts can wear through hoses over time. Protective routing and secure brackets help keep the reservoir clear of trouble.

  • Measure both extended and collapsed length
  • Check reservoir clearance to moving parts
  • Confirm mount hardware before drilling

Specifications

Brand Fox Racing Shox
Part number 980-02-049
UPC 700007193475
Body size 2.0 x 6.5
Finish Black/Zinc
Extended length 18.34 in.
Collapsed length 11.84 in.
Stroke 6.5 in.
Body material Zinc plated seamless alloy
Components Black anodized CNC machined aluminum

Vehicle fitment

Shock length and mounting points must match your vehicle, so measure before fitting.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The external reservoir adds to the shock’s package size. Check clearance to the frame, body and tire at both full compression and full extension before mounting.

What’s included

Check the contents for hardware and mounting brackets before installing.

SKU: FOX980-02-049 Category:

Specification

Shipping weight 21.00 lbs
Package dimensions 28.80 × 5.80 × 5.80 in
brands

Questions & Answers

What is Fox part number 980-02-049?

Part number 980-02-049 is the Fox 2.0 Factory Series smooth body reservoir shock from Fox Racing Shox, with UPC 700007193475. It has an external reservoir, a zinc plated seamless alloy body and an extended length of 18.34 in.

Does the 980-02-049 shock list vehicle fitment?

No vehicles are named for this part. Compare the 18.34 in. extended and 11.84 in. collapsed lengths, plus the 6.5 in. stroke, against your current shock before choosing it.

What material is the body made of?

The body is zinc plated seamless alloy, and the components are black anodized CNC machined aluminum. The build also uses Teflon-lined, heat-treated spherical bearings.

What causes a shock to bind at full travel?

Binding usually comes from incorrect length, a bent mount or worn bushings that let the shock shift sideways. Inspect the mounts and compare lengths before assuming the shock is at fault.

Does heat matter for a reservoir shock?

Yes. Heat changes damping, and a reservoir helps the shock body run cooler on long descents. Keep airflow to the reservoir and avoid routing hoses against hot components.
