Overview

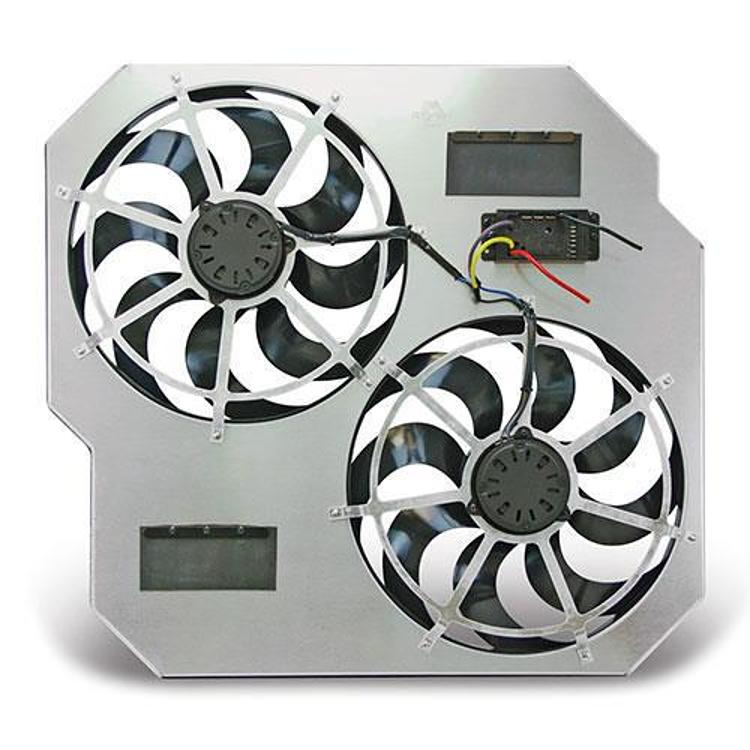

The Flex-A-Lite 264 Full Size Diesel Truck Electric Fan is a dual-fan cooling unit for big trucks, sold under part number 264. It uses two 15 inch fans with an S-blade design and a puller fan style.
The Monster fan is built for the cooling demands of large trucks, with a 5,500 cfm maximum airflow rating. Gains of as high as 17 HP and 20 ft.-lbs. and a 2-3 mpg improvement are associated with equipped vehicles, along with quicker warm-ups and quieter operation.
Key features
- Dual 15 inch diameter fans
- Glass-reinforced nylon shroud
- Variable speed control
- S-blade design with puller fan type
- Rated 5,500 cfm maximum airflow
- All necessary mounting hardware included
Before you install
A dual 15 inch fan assembly takes up much more space than a single fan, so measure the engine bay before committing. Check the distance from the fan to the radiator core, the clearance to the belt, pulleys and the front of the engine, and the hood height when the fan is in place. Small gaps matter, because the fans need to draw air evenly across the core.
Diesel trucks often run heavier cooling loads, especially when towing or idling in traffic. A variable speed control lets the fans run at the speed the engine needs, which can reduce noise at highway speed. Before fitting, confirm that the fuse, relay and power feed are sized for the fan load, and check the ground connection is clean and tight.
Specifications
| Brand | Flex-A-Lite |
|---|---|
| Part number | 264 |
| UPC | 88657002646 |
| Fan diameter | 15 inch, dual fans |
| Blade style | S-blade |
| Fan type | Puller |
| Fan style | Double |
| Shroud | Glass-reinforced nylon |
| Speed control | Variable |
| Maximum airflow | 5,500 cfm |
| Fitment label | Universal Fit |
Vehicle fitment
It is a direct-fit design for big trucks, marked Universal Fit with no year, model or trim named. Confirm your vehicle’s year, model and trim before ordering, and check clearance for the full-size dual fan assembly.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check engine bay clearance and radiator mounting before installation, since this is a full-size dual fan assembly. Wire the variable speed control and power with a fused feed, and keep the leads clear of the blades.
What’s included
All necessary mounting hardware is supplied for installation.
