Overview

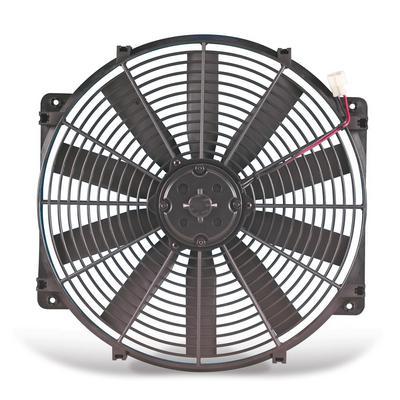

The Flex-A-Lite 104695 is a 16 inch, 24-volt single straight-blade electric cooling fan from the Trimline line. It can be used as a primary fan or as an auxiliary fan, and it is a universal fit.
Trimline fans are economical. Used as a primary fan in place of the stock fan where applicable, they reduce wasted horsepower and can increase gas mileage. Used as an auxiliary fan, they add cooling for an engine that is prone to overheating.
Key features
- 16 inch single electric fan
- 24-volt operation
- Straight blade style
- Can be used as a primary or auxiliary cooling fan
- Universal fit listing
Wiring and fan control
A cooling fan usually runs on a switch or thermostat signal, so the control method matters as much as the fan itself. A relay lets the fan draw its current through a dedicated circuit instead of the switch. Choose a fuse and relay rated for the fan’s current draw, and route the leads away from heat sources and moving parts.
Fan shrouds and mounting brackets keep airflow where the radiator needs it. Check for gaps between the fan and shroud, since air that bypasses the radiator reduces cooling. After installation, run the fan through a warm-up cycle and confirm it switches on and off as expected. Inspect the blades for cracks or bent tips at regular intervals.
- Check the fan’s current draw before choosing a relay
- Inspect blades for cracks
- Confirm shroud seal against the radiator
Specifications
| Brand | Flex-A-Lite |
|---|---|
| Part number | FLX104695 |
| Product type | Electric cooling fan |
| Voltage | 24 volt |
| Fan size | 16 inch |
| Fan style | Single |
| Blade style | Straight blade |
| Fitment type | Universal fit |
Vehicle fitment
It is a universal-fit fan that is not tied to one vehicle. Fit depends on your vehicle’s year, model and trim, so confirm those before ordering.
This is a 24-volt fan, so confirm that your electrical system and wiring suit it. Check that the 16 inch size fits the space available behind the radiator or in front of it. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Wire auxiliary lights with a fused, relayed circuit sized for the load, using weatherproof connectors and secure routing away from heat and moving parts. If you are unsure about the wiring, have a qualified installer do it. For a cooling fan, use a fused and relayed circuit rated for the fan’s current draw, and keep wiring away from the blades and heat.
- Mount the light securely and aim it so it does not dazzle other drivers.
- Check your local regulations for auxiliary lighting use on public roads, and cover or switch off lights where required.
- Disconnect the battery before working on the wiring.
- Re-check mounting hardware and connections after the first miles of driving.
What’s included
Verify any package extras against your wiring plan before starting.
Not included: Wiring, relay, thermostat or temperature switch, and mounting hardware may need to be sourced separately.
