Overview

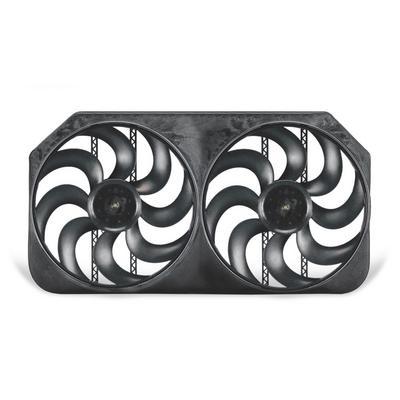

The Flex-A-Lite Dual S-Blade 15-inch Electric Fans, part number FLX116591, is a reversible dual electric fan system with a full shroud measuring 31 7/8 x 17 inches. It is universal fit, so it is not tied to one vehicle. Check the shroud and radiator space before choosing it.
Two 15-inch electric S-Blade fans run under a Variable Speed Controller that changes speed between 60-100 percent depending on radiator temperature. The system moves up to 6,000 cfm of airflow and is designed to replace a stock clutch fan assembly, helping to recover horsepower and improve fuel economy.
Key features
- Reversible S-Blade design
- Two 15-inch electric fans in a double configuration
- Full shroud measuring 31 7/8 x 17 inches
- Variable Speed Controller that changes fan speed from 60-100 percent with radiator temperature
- Up to 6,000 cfm of airflow
Measuring for a reversible shroud
A full shroud directs air through the radiator core and keeps the fan from pulling air around the edges, so its fit matters as much as the fan itself. Measure the radiator opening, the depth between the core and the fan location, and the clearance to hoses, belts and the bumper before deciding on a shroud size.
Reversible blades let you choose between pulling air through the radiator and pushing it from the engine side, depending on how the fans are arranged. Confirm the fan direction before wiring, and check that the blades clear the shroud when the fans turn by hand. Inspect the shroud for cracks or loose mounting tabs after rough trail use, since vibration can work fasteners loose. Keep the shroud seal clean so air does not bypass the radiator core.
Specifications
| Brand | Flex-A-Lite |
|---|---|
| Part number | FLX116591 |
| Blade style | Reversible S-Blade |
| Fan style | Double |
| Fan size | 15 inch |
| Shroud size | 31 7/8 x 17 inches |
| Airflow | Up to 6,000 cfm |
| Fan speed control | 60-100 percent, varied by radiator temperature |
Vehicle fitment
It is universal fit and is not tied to one vehicle. Fit depends on your radiator and shroud space.
Measure the available space against the 31 7/8 x 17 inch shroud before ordering. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Two 15-inch electric S-Blade fans and a Variable Speed Controller make up the system. Confirm whether mounting hardware is supplied before installing.
