Overview
The Firestone Ride-Rite 2542 is a rear air helper spring kit for the 2009–2014 Ford F-150. It mounts between the frame and the suspension of light trucks, vans and motorhomes, using heavy-duty convoluted air springs to level the rear under load.
Its main purpose is to keep the vehicle level and handling properly while hauling and towing heavy loads. The kit levels off-center loads, reduces suspension fatigue and bottoming out, and improves stability. Load carrying capacity runs between 3,200 and 5,000 lbs. per set, depending on the application.
Match part number 2542 against your truck’s year, model and trim, since the application can vary. Many kits in this line use a quick, no-drill bolt-on installation.
Key features
- Rear air helper spring set for leveling loads on light trucks, vans and motorhomes.
- Load carrying capacity between 3,200 and 5,000 lbs. per set.
- Heavy-duty convoluted air springs handle leveling needs.
- Includes brackets, air helper springs, hardware, air line and inflation valves.
- Many kits in the line use a quick, no-drill bolt-on installation.
- Direct fit for the rear position.
Choosing the right setup
Air helper springs work best when they are matched to how the truck is used. A kit that levels a light load may feel firm when the bags are inflated for a heavy trailer, so adjust pressure to the load instead of setting it once and forgetting it. The air line should be routed away from heat and moving parts, and its fittings should be checked after the first fill.
Helpers are often replaced alongside shock absorbers, bump stops and worn rear bushings, since those parts share the same load. An air compressor and gauges are useful for setting pressure accurately, and a worn air spring should be replaced rather than patched, especially if it leaks at the bead or sags when the truck is parked.
Specifications
| Brand | Firestone Ride-Rite |
|---|---|
| Part number | 2542 |
| UPC | 767555143339 |
| Position | Rear |
| Load capacity | 3,200 to 5,000 lbs. per set |
| Installation type | Quick bolt-on, no drilling on many kits |
| Included hardware | Brackets, air helper springs, hardware, air line, inflation valves |
| Fitment type | Direct fit |
Vehicle fitment
The manufacturer fitment list covers 2009–2014 Ford F-150 trucks in the FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL and XLT trims. Those trim names are the only ones listed.
Other Ford trucks and F-150 model years outside 2009–2014, including 2015 and newer F-150 trucks, are not in the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Many kits in this line use a quick bolt-on installation. Because the application can vary, check the included brackets and hardware against your F-150 before starting.

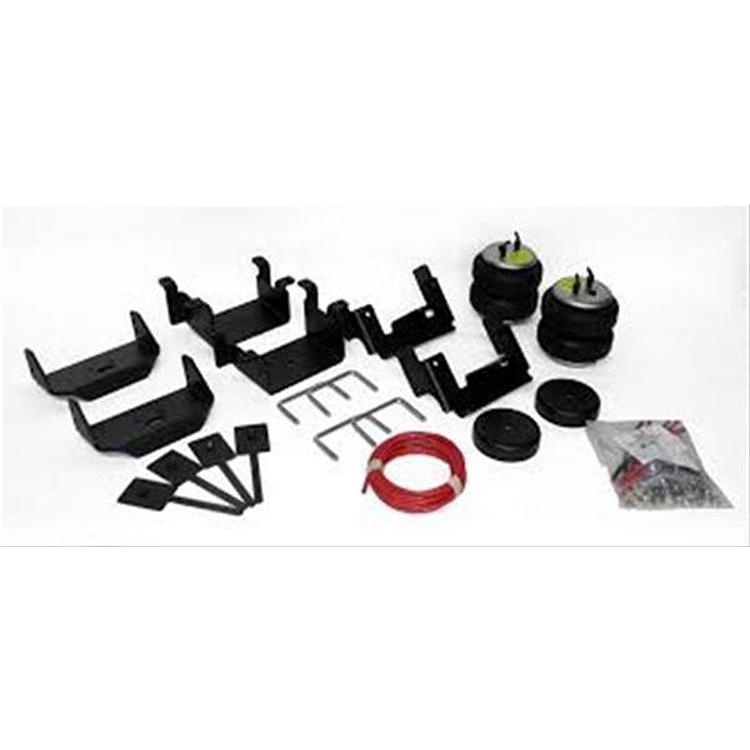

What’s included
The kit includes brackets, air helper springs, hardware, an air line and inflation valves.
