Overview

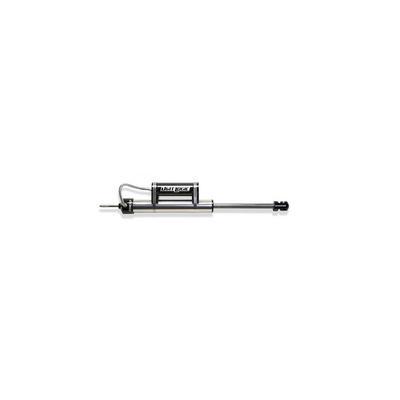

The Fabtech Dirt Logic 2.25 Resi Shock, part FTS801392, is a rear reservoir shock in the Dirt Logic 2.25 series. It is designed to match Fabtech part numbers K7069DL, K7070DL, K7071DL and K7072DL.
Confirm the damping and gas charge against the parts it is matched with before installing. Confirm the vehicle, year and chassis before ordering.
Key features
- Dirt Logic 2.25 series reservoir shock
- Rear position
- Matched to Fabtech part numbers K7069DL, K7070DL, K7071DL and K7072DL
Reservoir shocks explained
A reservoir shock places the gas charge and extra oil in a separate chamber connected by a hose. That separation helps the shock keep damping consistent during long runs, because heat and oil foaming are reduced in the main body. The reservoir also gives the shock more oil capacity, which can help with repeated hard compression on rough terrain.
Because the reservoir sits off the body, it needs room for mounting and for the hose to move with the suspension. Check that the hose is routed clear of tires, frame edges and moving parts. Inspect the hose, clamps and reservoir mount regularly for leaks, cracks and rubbing.
- Route the reservoir hose clear of moving parts
- Confirm clearance around the tire and frame
- Inspect hose clamps and mounts for wear
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FTS801392 |
| Series | Dirt Logic 2.25 Resi |
| Position | Rear |
| Compatible with | Fabtech K7069DL, K7070DL, K7071DL, K7072DL |
Vehicle fitment
Check the matching Fabtech part numbers against your existing setup before installing.
Check the Fabtech part numbers against your existing setup before installing. Confirm your vehicle’s year, model and trim before ordering.
