Overview

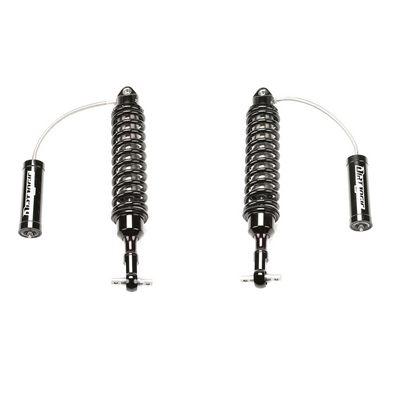

The Fabtech Dirt Logic 2.5 Coilover Reservoir Shock Absorber Set, part FTS21260, is a front coilover shock set with a reservoir. Fabtech developed the Dirt Logic 2.5 from its desert racing experience for use in a variety of coilover applications.
The Dirt Logic 2.5 is built for strong dampening capacity in aggressive off-road driving. The set is gas charged, and the position is front.
Confirm the body diameter, mounts and vehicle fit before matching the set to a coilover spring.
Key features
- Front coilover reservoir shock set
- Gas charged monotube coilover design
- Developed from Fabtech desert racing experience
- Strong dampening capacity for aggressive off-road use
Setting up a coilover reservoir
A reservoir shock moves the gas charge and extra damping fluid into a separate tube connected by a hose. That separation gives the damper more room to cool and reduces foaming when the shock works hard. On a coilover setup, the spring sits on the body, so the spring perch height and the shock’s length have to be set together. Measuring the body at full extension and full compression before fitting helps avoid bottoming out or running out of travel.
Check the hose and reservoir mount for rubbing against tires, brake lines and the frame at full travel. Heat cycling can loosen fittings over time, so inspect them after the first few trail runs. Oil seepage at the shaft or reservoir cap points to a seal that needs attention.
- Route the reservoir hose away from heat sources
- Confirm the spring rate matches the shock setup
- Recheck mounting hardware after initial use
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FTS21260 |
| Series | Dirt Logic 2.5 Coilover |
| Position | Front |
| Shock type | Coilover, reservoir |
| Charge | Gas charged |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering, including the coilover spring and mounts.
Check the coilover spring and mounts for your vehicle before installing the set. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Check the package contents against your installation before starting.
