Overview

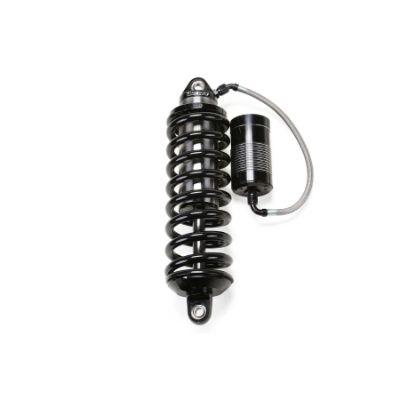

The Fabtech FABFTS835122 is a front Dirt Logic 4.0 piggyback reservoir coilover shock with a 4.0 inch body and eyelet mounts at both ends. It is gas charged. No vehicle is named for this unit.
The Dirt Logic 4.0 is a large-body coilover built for offroad dampening with comfortable highway driving. It is intended for full size vehicles that need a bolt-on coilover.
The shock carries a universal fit label, but a unit this size is matched to specific vehicles. Confirm the make, model, year and trim against your truck before ordering.
Key features
- Front position
- 4.0 inch body diameter
- Eyelet top and bottom mounts
- Piggyback reservoir design.
- Gas charged
- Bolt-on configuration for full size vehicles
Choosing a reservoir coilover
A piggyback reservoir moves the gas chamber away from the shock body, which gives the damping more room to work during long off-road travel. Piggyback designs are common on larger trucks and off-road builds where heat build-up becomes a concern on rough terrain. The hose and reservoir mount need clearance from the frame and tires before the shock is locked in place.
Because a unit this large is matched to specific vehicles, measure the compressed and extended lengths against the original front coilover before buying. Check the reservoir routing so the hose does not rub or pinch as the suspension moves. Replacing both front shocks at the same time keeps the two sides balanced in damping. Inspect the eyelet bushings and hardware each time you service the front suspension.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FABFTS835122 |
| Series | Dirt Logic 4.0 Coilover |
| Location | Front |
| Shock type | Coilover |
| Body diameter | 4.0 inches |
| Top mount | Eyelet |
| Bottom mount | Eyelet |
| Charge | Gas charged |
| Fitment type | Universal label, no vehicles named |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering, since no vehicle is named for this unit.
Installation notes
Check the mounts and overall length against the original front setup before fitting, since this bolt-on design still needs measuring. Work on a securely supported vehicle.
What’s included
One front coilover shock. Check the package contents against your installation before starting, as the spring and quantity need confirming.
