Trail Gear Winch Mount (Bare Steel) – 120116-1-KIT

Trail Gear

Out of stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 10:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Gear 120116-1-KIT bare steel winch mount plate
  • Bolts on in the factory frame holes; 1/4 inch CNC bent steel
  • Predrilled for easy winch mounting
  • Fits 1990–1995 Toyota 4Runner SR5 and 1989–1995 Toyota Pickup

Description

Overview

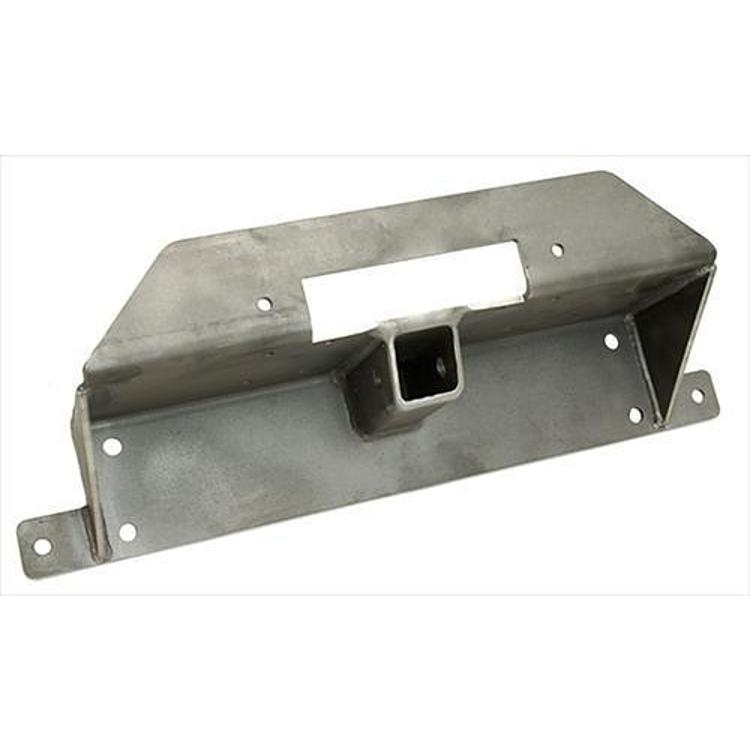

The Trail Gear 120116-1-KIT is a bare steel winch mount plate for building your own front bumper. The plate bolts on in the factory frame holes and is made from CNC bent 1/4 inch steel. It fits 1990–1995 Toyota 4Runner SR5 and 1989–1995 Toyota Pickup in Base, DLX and SR5 trims.

Two inch receiver tubing lets a receiver shackle serve as a pull point or recovery point. The holes are predrilled for winch mounting. If you can bend tube, the plate alone covers the core of a custom bumper.

Key features

  • CNC bent 1/4 inch steel plate
  • Bolts on in the factory frame holes
  • Two inch receiver tubing for a receiver shackle pull or recovery point
  • Predrilled for winch mounting
  • Bare steel finish

Building a custom front bumper

A bare plate gives you a starting point, and the rest of the bumper is up to you. Plan the framework around the plate’s bolt locations and the grille clearance your winch needs. Two inch receiver tubing can serve as a pull point, so position it where a receiver shackle can pull straight without binding.

Measure twice before cutting or welding, and test-fit the winch before final assembly. Steel tubing and plate should be cleaned and primed or painted once fabrication is complete, since bare steel rusts in wet conditions. Keep the bumper’s mounting points clear of the frame’s moving parts and check clearance at full steering lock.

  • Test-fit the winch before welding
  • Prime or paint bare steel after welding
  • Check steering clearance with the bumper fitted

Specifications

Brand Trail Gear
Part number 120116-1-KIT
UPC 70000621512
Material Steel
Plate thickness 1/4 inch
Tubing Two inch receiver tubing
Finish Bare steel
Mounting Bolts into factory frame holes
OE bumper Not an OE bumper
Fitment type Direct fit

Vehicle fitment

It fits 1990–1995 Toyota 4Runner (SR5) and 1989–1995 Toyota Pickup (Base, DLX, SR5).

Jeep models and Toyota years outside these ranges are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The plate bolts on in the factory frame holes. Some winches may require slight trimming or clearance of the grille, so check that before the winch is mounted.

What’s included

The bare steel winch mount plate is the item in this package. Mounting bolts are not included with the plate.

Not included: A winch, bumper tubing and a receiver shackle are needed and are not included.

SKU: TGI120116-1-KIT Category:

Specification

Shipping weight 32.00 lbs
Package dimensions 30.00 × 13.00 × 13.00 in
brands

Fitment

VehicleYearsTrims
Toyota 4Runner1990–1995SR5
Toyota Pickup1989–1995Base, DLX, SR5

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Trail Gear 120116-1-KIT bolt onto the factory frame?

Yes. It bolts on in the factory frame holes and serves as a starting point for a custom front bumper. The kit is the plate itself, so plan the bumper build around it.

Which vehicles fit the Trail Gear 120116-1-KIT?

It fits the 1990–1995 Toyota 4Runner SR5 and 1989–1995 Toyota Pickup in Base, DLX and SR5 trims. Jeep Wrangler models are not covered, so confirm your year, model and trim before ordering.

What is the Trail Gear plate made from?

It is a CNC bent 1/4 inch steel plate in bare steel, with two inch receiver tubing for a receiver shackle pull point or recovery point. Confirm the winch and hardware you need before ordering.

Do I need to modify the grille for a winch?

Some winches may need slight trimming or clearance of the grille. Check the winch's body and mounting position against the grille before mounting the plate. Make any trimming decisions before drilling or welding anything.
