Overview

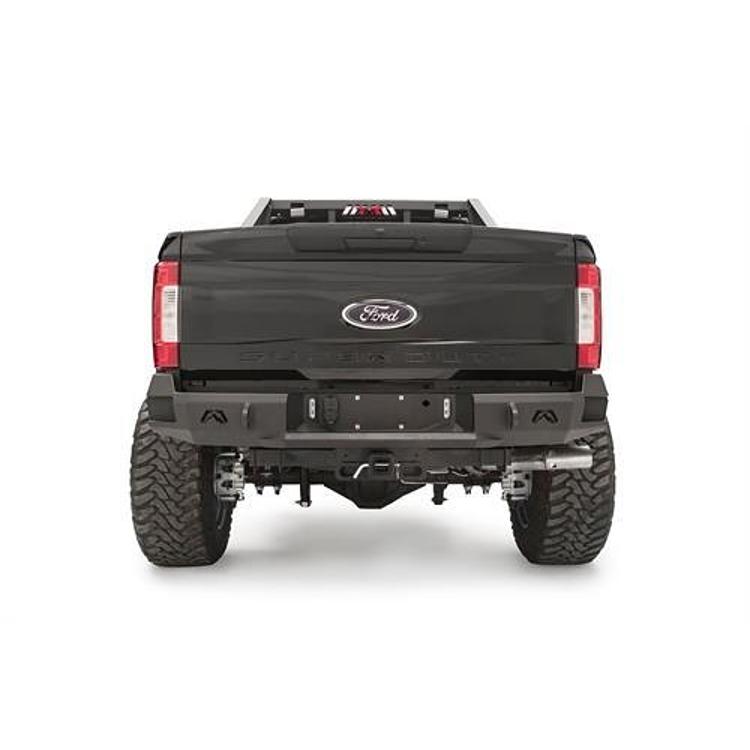

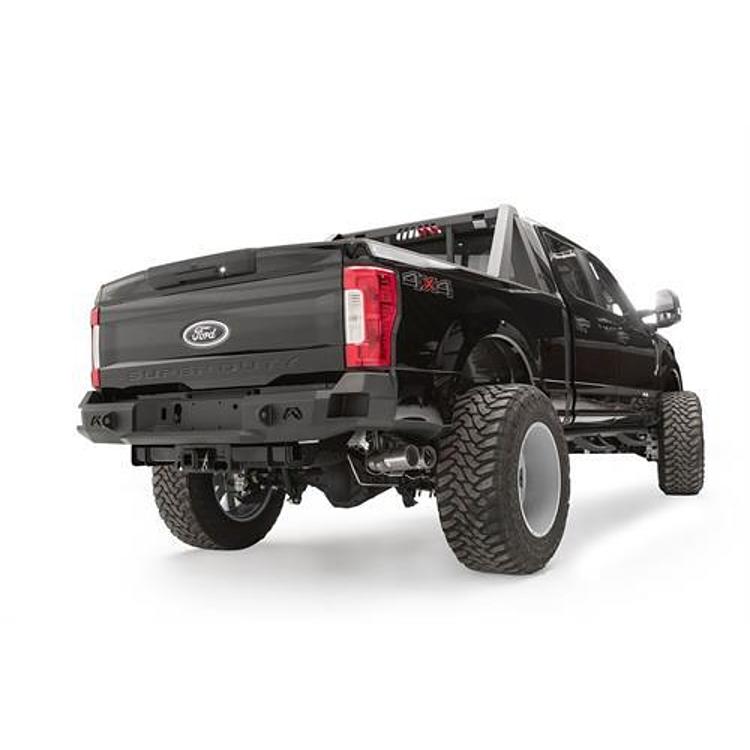

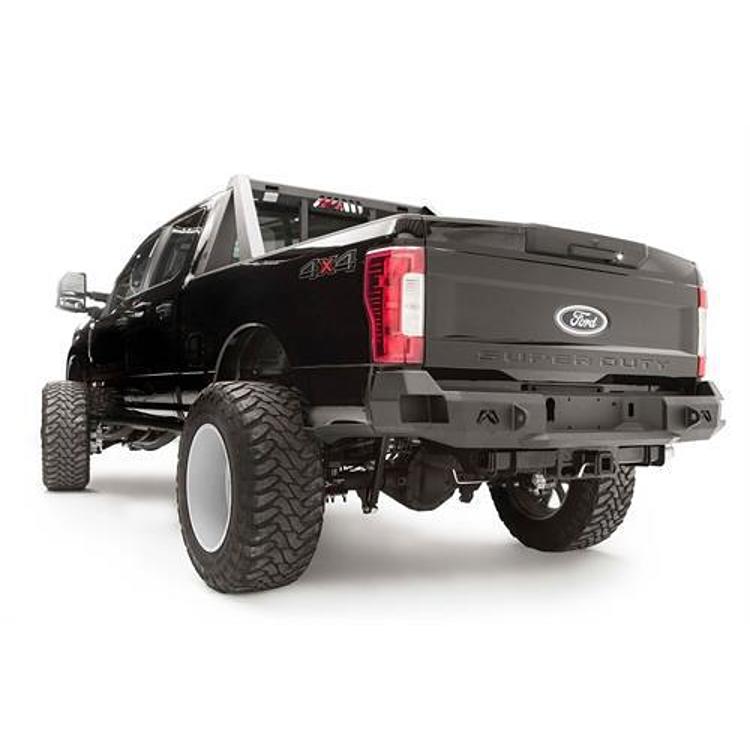

The Fab Fours Premium Rear Replacement Bumper, part number FS17-W4150-1, is a black powder-coated rear bumper for the 2017 Ford F-250 Super Duty and F-350 Super Duty. It integrates the existing receiver hitch and adds lower steps and recovery points.
The design is functional rear-end protection. It is built from 3/16-inch U.S. steel with a 2 stage black powder coat and weighs 115 lb.
Key features
- 3/16-inch U.S. steel construction
- Fab Fours 2 stage black powder coat
- D-rings cut from 3/4-inch steel, accepting shackles up to 7/8-inch
- Lower steps and recovery points added to the rear
- Keeps the OEM receiver hitch and wiring location
- 100% made in the USA
Using the recovery points
Rear recovery points are most useful for pulling a stuck truck straight back or for securing a chain or strap during a tow. Use rated shackles and a strap or chain rated for the load, and keep the pull angle as straight as possible to avoid bending the bumper. The D-rings should be inspected for cracks and deformation after any heavy use.
The lower steps help with access to the bed and a hitch, but they also add weight near the rear. Keep the steps clear of mud and ice, and check the bumper’s welds and mounting bolts periodically. A receiver hitch carried over from the factory location should be checked for fit and clearance with the bumper.
- Use shackles rated for the load you plan to recover
- Pull straight back to protect the bumper’s mounts
- Check welds and bolts after heavy use
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | FS17-W4150-1 |
| UPC | 5810112356 |
| Product type | Rear replacement bumper |
| Finish | 2 stage black powder coat |
| Steel thickness | 3/16 in |
| D-ring steel | 3/4 in, accepts up to a 7/8 in shackle |
| Weight | 115 lb |
| Position | Rear |
| Fit type | Direct fit |
| Origin | Made in the USA from U.S. steel |
Vehicle fitment
Fab Fours lists part FS17-W4150-1 for the 2017 Ford F-250 Super Duty and 2017 Ford F-350 Super Duty.
The list is limited to model year 2017, so Super Duty trucks from 2016 and earlier or from 2018 and later are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a 115 lb part, so plan on a second person or a transmission jack when raising it. The factory receiver hitch and wiring location carry over unchanged.
What’s included
One rear bumper with D-ring recovery points.
Not included: Shackles.
