Overview

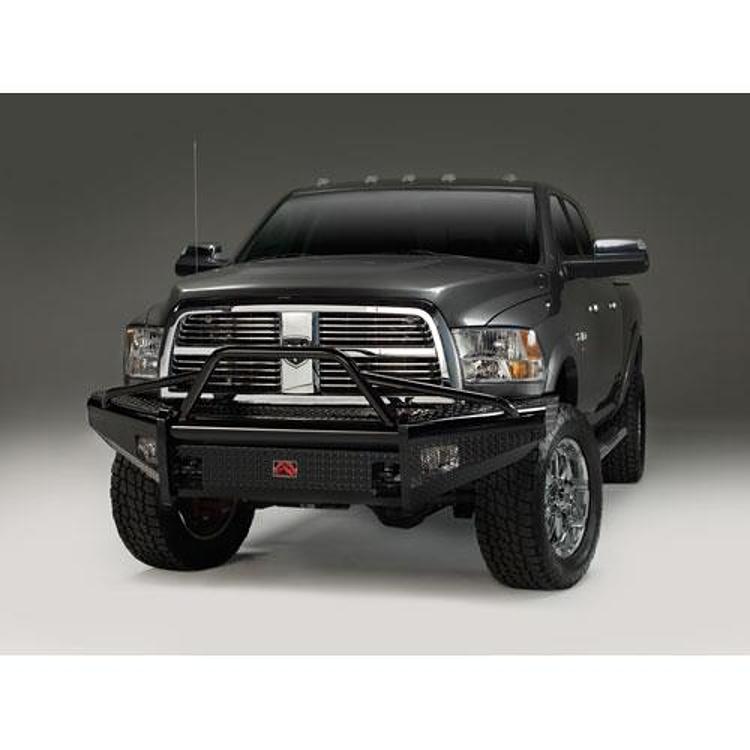

The Fab Fours DR03-S1062-1 is a pre-runner front ranch bumper with tow hooks, built from pipe and tread plate and finished in black powder coat. Fab Fours designed the ranch bumper to carry the look of its plate bumpers, with tapered edges and no vertical flanges.
This version adds bolt-on tow hooks and keeps light mounts for the factory fog lights. It can be fitted with a bolt-on winch mount for winches up to 16,500 lb, 1″ D-ring mounts or a 2″ receiver, all offered as options. Fab Fours shapes every bumper to follow the body lines of the truck it is made for.
Key features
- Pipe and tread plate construction in a pre-runner style
- Tapered edges with no vertical flanges
- Bolt-on tow hooks included
- Light mounts for factory fog lights
- Optional bolt-on winch mount for winches up to 16,500 lb or smaller
- Optional bolt-on 1″ D-ring mounts and optional bolt-on 2″ receiver
- Gloss black powder coat or bare steel (-B instead of -1)
Choosing optional mounts
Optional mounts change what the bumper can do, so decide on them before installation. A winch mount needs a clear route for the cable and a rated winch sized for the vehicle. D-ring mounts suit recovery straps, and a receiver adds a hitch point for towing or accessories. Each option bolts on, which lets you add it later.
Tow hooks and fog light mounts are included, so the bumper is usable right away for basic recovery. Mount hardware should be checked after the first trail runs, especially where a winch or receiver puts a load on the bumper. Keep the tread plate free of dents that can crack the weld seams.
- Match the winch rating to the vehicle
- Plan cable routing before mounting
- Check receiver bolts after towing
- Inspect weld seams after rock strikes
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | DR03-S1062-1 |
| UPC | 5810102326 |
| Type | Pre-runner front ranch bumper with tow hooks |
| Construction | Pipe and tread plate |
| Material | Steel |
| Finish | Gloss black powder coat (-1) or bare steel (-B) |
| Tow hooks | Bolt-on, included |
| Winch mount | Optional, bolt-on, up to 16,500 lb |
| D-ring mounts | Optional, bolt-on, 1″ |
| Receiver | Optional, bolt-on, 2″ |
Vehicle fitment
This ranch bumper is designed as a direct fit for one truck’s body lines. Check the year, model and trim against your vehicle before ordering.
Check Fab Fours’ specifications for DR03-S1062-1 to find which truck this ranch bumper was made for. Confirm your vehicle’s year, model and trim before ordering.
What’s included
- Pre-runner front ranch bumper
- Bolt-on tow hooks
- Light mounts for the factory fog lights
Not included: the winch mount, D-ring mounts and 2″ receiver, which are optional bolt-on parts.
