Overview

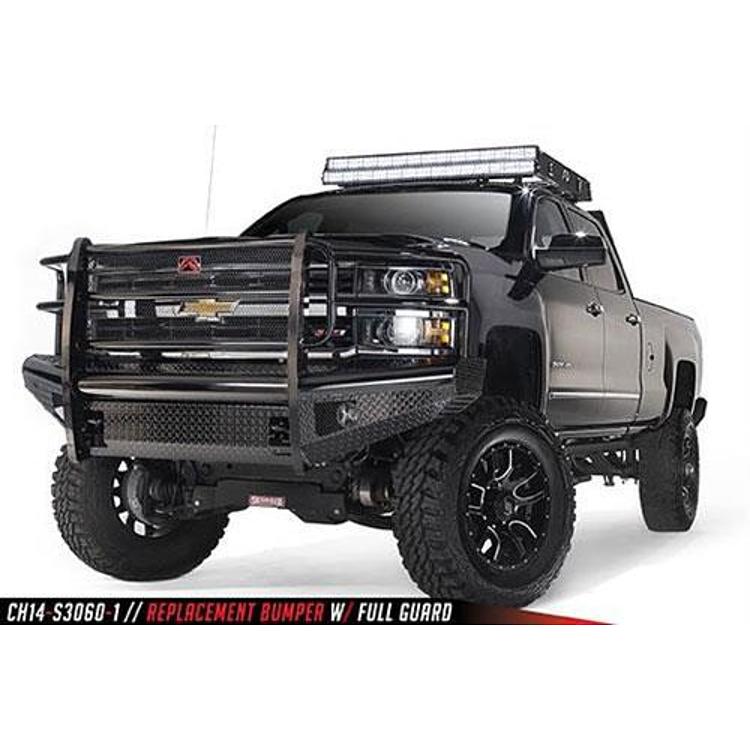

The Fab Fours Black Steel Front Ranch Bumper with Grille Guard in black, part number CH14-S3060-1, is a steel ranch-style front bumper for the 2015–2018 Chevrolet Silverado 2500 HD and 3500 HD. It combines pipe and tread plate construction with a grille guard and a gloss black powder-coat finish.
The ranch bumper takes the styling of the heavy-duty plate bumpers, with no vertical flanges and tapered edges. Each bumper is matched to the body lines of the truck.
Key features
- Black steel ranch bumper with a grille guard
- Combination of pipe and tread plate construction
- Gloss black powder coat; bare steel uses -B instead of -1
- Bolt-on tow hooks included
- Light mounts for the factory fog lights
- Optional bolt-on winch mount for winches up to 16,500 lb
- Optional bolt-on 1 inch D-ring mounts
- Optional bolt-on 2 inch receiver
Ranch bumpers and clearance
A ranch-style bumper sits low and wide, so approach angle and ground clearance are the first things to check after a front-end swap. The tapered edges and lack of vertical flanges help the bumper blend with the body lines, but the lower corners can still meet obstacles. Take a slow, straight test drive over a parking lot curb to judge clearance.
A grille guard protects the radiator core and headlight area from brush, gravel and small impacts. Keep the grille mesh clear of mud and leaves, since blocked airflow raises engine temperatures under load. Wash the bumper regularly so road salt does not sit in the powder coat seams.
- Check approach angle after installation
- Clear grille mesh of debris after off-road use
- Look for chips in the powder coat at the edges
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | CH14-S3060-1 |
| UPC | 5810108045 |
| Product type | Black steel ranch front bumper |
| Guard style | Grille guard |
| Position | Front |
| Width | Full |
| Material | Steel |
| Construction | Pipe and tread plate |
| Finish | Gloss black powder coat |
| Tow hooks | Bolt-on, included |
| Light mounts | Included, for factory fog lights |
| Winch mount | Optional bolt-on mount accepts up to 16,500 lb |
| D-ring mount | Optional 1 inch bolt-on mounts |
| Receiver | Optional 2 inch bolt-on receiver |
| Fitment type | Direct fit |
Vehicle fitment
Fitment covers the 2015–2018 Chevrolet Silverado 2500 HD and 3500 HD.
Other Silverado years and the Silverado 1500 are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Bolt-on tow hooks are part of the bumper. A winch mount, D-ring mounts and a receiver can be added as optional bolt-on accessories.
What’s included
The ranch front bumper with grille guard, bolt-on tow hooks and factory fog light mounts.
Not included: The optional winch mount, 1 inch D-ring mounts, 2 inch receiver and the winch.
