Overview

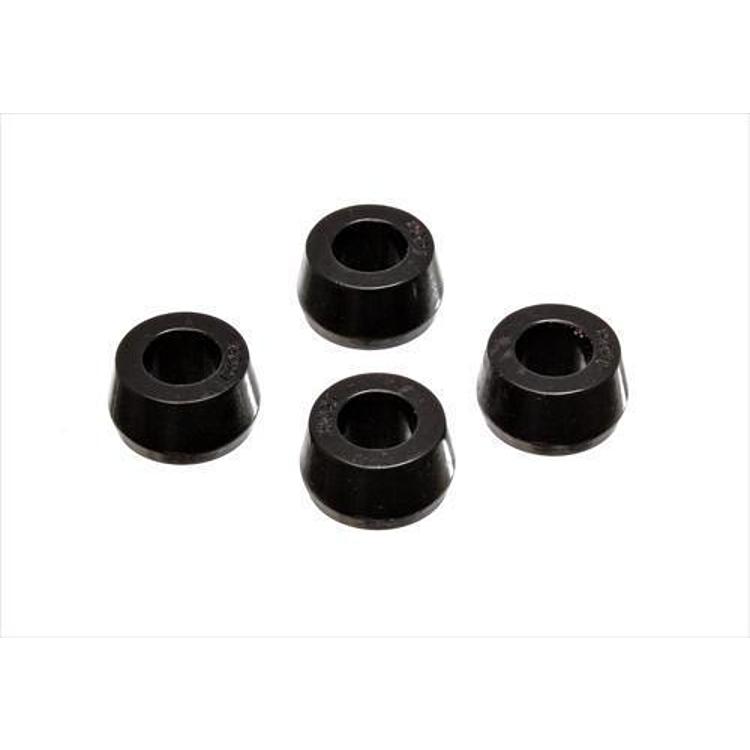

The Energy Suspension 9.8143G is a black polyurethane shock eye made in the half bushing style for large race hourglass eyes. It is labeled universal fit, so the hourglass eye on your shock, with its 0.75 in. ID and L-13/16 in. length, decides whether it is the right size.
The set includes 4 bushings, and the design is aimed at large race hourglass shock eyes rather than at any single vehicle.
Key features
- Half bushing style
- Built for large race hourglass eyes
- 0.75 in. inside diameter
- L-13/16 in. length
- 4 bushings included
- Polyurethane, black
Matching the eye on your shock
A shock eye bushing is the small sleeve that sits inside the mounting eye at each end of a shock absorber. It absorbs the rotation and small side loads that come from suspension travel, and it keeps metal from contacting metal at the pivot. When the bushing wears, the shock can clunk, rattle or feel loose over bumps, and the eye itself can become scored from movement.
Choosing the right bushing starts with measuring the eye. Half bushings suit hourglass eyes, which are narrower in the middle than a straight eye, so the eye shape matters as much as the bore. Measure the inside diameter and the width of the eye, then compare those figures with the bushing before buying. Shock mounts often wear together, so inspect the mounting hardware and the other end of the shock while the old bushings are out.
- Check for cracked or flattened bushings
- Inspect the eye for wear or scoring
- Replace bushings on both ends when one is worn
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 9.8143G |
| UPC | 703639416050 |
| Material | Polyurethane |
| Style | Half bushing for large race hourglass |
| ID | 0.75 in. |
| Length | L-13/16 in. |
| Bushings | 4 |
| Color | Black |
Vehicle fitment
No vehicle fitment is shown for this shock eye. Its universal fit label means the hourglass eye and bore on your shock must match the listed dimensions.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a half bushing for hourglass eyes, which differs in shape from a straight eye. Confirm the eye’s shape and measure its bore before ordering.
What’s included
4 bushings are included with the 9.8143G.
