Overview

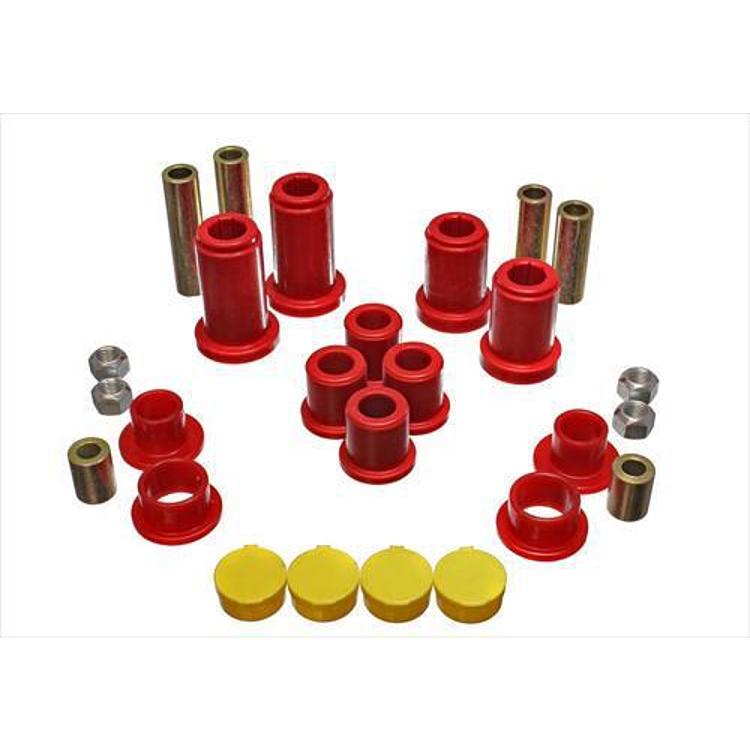

The Energy Suspension 3.3190R is a red polyurethane control arm bushing set, sold as a half set, for vehicles that already run an aftermarket control arm with polyurethane bushings at the front upper or rear lower location. The bushings press into the remaining stock control arms so that every control arm on the vehicle uses polyurethane.
The stated purpose is to give you the full benefit of polyurethane bushings on all control arms, without replacing the stock arms themselves.
Key features
- Polyurethane bushings for stock control arms
- Half set for vehicles with an aftermarket control arm at the front upper or rear lower location
- Red finish
- Energy Suspension part number 3.3190R
Pressing bushings into stock arms
Pressing bushings into stock control arms means the arms come off the vehicle, so the job takes longer than a simple bolt-on. Plan for a press, a suitable adapter and clean mounting bores. Support the vehicle on stands and never rely on a jack alone, since the work involves loosening load-bearing parts.
Old rubber can bond to the sleeve and the bore, so cleaning is important. Inspect each arm for cracks near welds and check that the ball joint is tight. After reassembly the vehicle should be aligned, because new bushings change suspension geometry slightly and the tires will show it if they are not set right.
- Remove the arm and label its position
- Clean the bore thoroughly before pressing
- Check ball joints and welds before reinstalling
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 3.3190R |
| UPC | 703639063735 |
| Color | Red |
| Material | Polyurethane |
| Type | Half bushing set |
| Application | Stock control arms at the remaining locations |
Vehicle fitment
This half set goes into stock control arms at the remaining positions, so the arm locations on your vehicle decide fit more than a general fit label. Match those locations before ordering.
The set fits only vehicles that already have a polyurethane-bushed aftermarket control arm at the front upper or rear lower location. Vehicles without one fall outside its use. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bushings are pressed into the stock control arms, so the arms come off the vehicle and a press is generally needed to seat them. Support the vehicle on stands before working under it.
What’s included
A red polyurethane bushing set for stock control arms, sold under part number 3.3190R.
Not included: control arms. The set fits the arms you already have.
