Overview

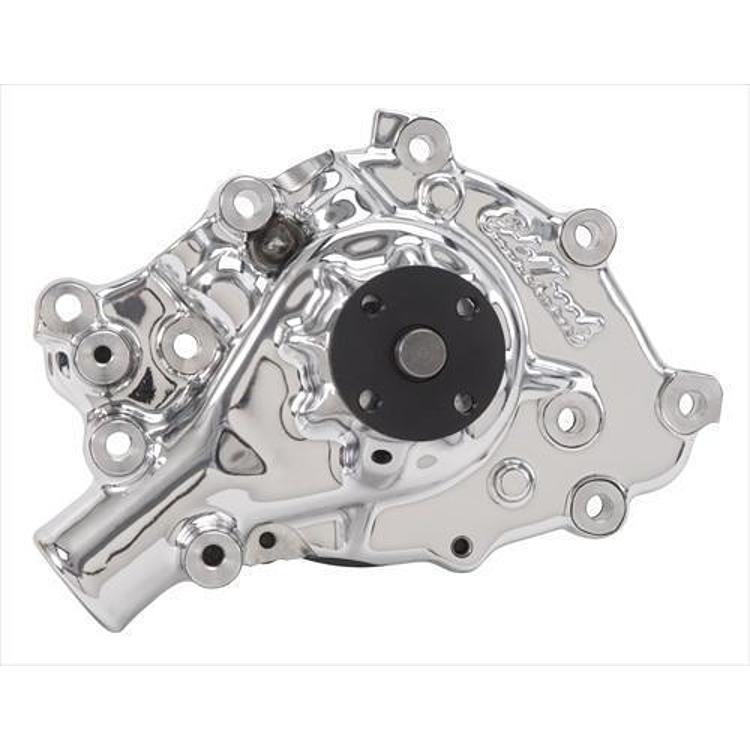

The Edelbrock 88414 is an aluminum Victor Series water pump with an Endura finish. It is a performance replacement for Ford 65-68 289, 68-69 302 and 69 351W engines. It has a right-hand inlet, a back plate and a 5/8 in. pilot shaft.
Edelbrock balanced the internal passages so coolant reaches both sides of the block evenly. The impeller is larger than many standard pumps, which Edelbrock says raises pressure, and the vanes are designed to increase flow rate. The pump moves coolant in one direction only, which the brand says improves efficiency.
Key features
- Balanced internal passages for even flow to both sides of the block
- Larger impeller that Edelbrock says increases pressure
- Vanes designed to increase flow rate
- One-direction flow for efficiency
- Aluminum construction with Endura finish, for street and racing engines
Choosing the right setup
A water pump moves coolant through the block, radiator and heater core, so its condition affects how evenly the engine holds temperature. On a small-block Ford, the pump sits at the front of the engine and is driven by the belt, so a failing bearing often shows up as a whine or a wobble at the pulley before any coolant leaks. Check the pilot shaft, the block surface and the inlet orientation before buying, since those three points decide whether the pump bolts up cleanly without modifying the hoses.
Replacing the pump is a good time to inspect related parts. Hoses that have softened, a thermostat that sticks, and a belt with glazing or cracks are all reached through the same work area. Keep the old gasket surfaces clean and use new gaskets, since a small seep at the mounting face is often the first sign of a poor seal. Refill the system slowly and bleed any air pockets so the new pump is not running dry at startup.
- Inspect the belt and pulleys for wear before fitting
- Replace hoses that feel soft or swollen
- Use the coolant type suited to your engine
Specifications
| Brand | Edelbrock |
|---|---|
| Part number | 88414 |
| UPC | 85347884148 |
| Series | Victor Series |
| Type | Water pump, performance replacement |
| Material | Aluminum |
| Finish | Endura |
| Pilot shaft | 5/8 in. |
| Inlet | Right-hand inlet with back plate |
| Block surface to hub | 5.42 in. |
| Listed applications | Ford 65-68 289; 68-69 302; 69 351W |
Vehicle fitment
It is a direct fit for Ford 289, 302 and 351W engines in the year ranges above. Engines outside those applications are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the 5/8 in. pilot shaft and 5.42 in. block-surface-to-hub measurement with your engine before fitting the pump. Because the inlet is right-hand with a back plate, check that it lines up with your radiator hose layout. Drain the coolant before removing the old pump.
What’s included
The pump with right-hand inlet and back plate. Not included: gaskets and mounting hardware; check what your installation needs before starting
