Overview

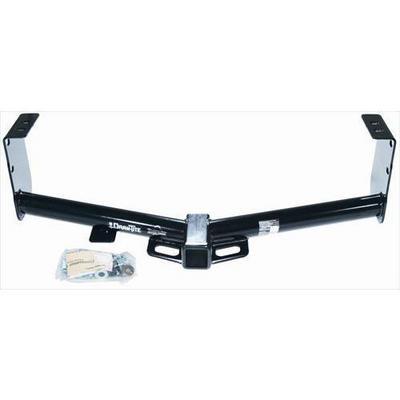

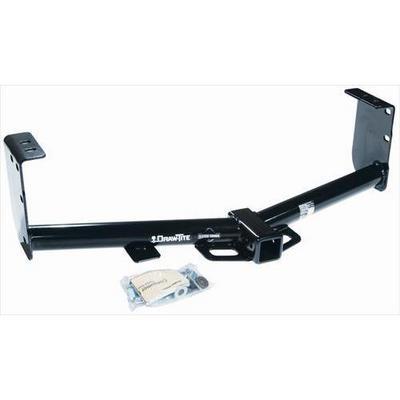

The DrawTite DRA75527 is a Class III/IV round tube Max-Frame trailer hitch with a 2 Inches X 2 Inches receiver, made for the 2007–2012 Toyota Tundra in the Base, Limited and SR5 trims. The hitch uses a round tube design, and it is a rear-mounted receiver for towing.
The hitch is built to fit the specific vehicle directly, with no adapters, which is why the Tundra fit is limited to the years and trims shown here. Compare the receiver size, weight class and trim before choosing the part.
Key features
- Round tube Max-Frame design
- Class III/IV weight class
- 2 Inches X 2 Inches receiver size
- Rear-mounted receiver for towing
- It is a direct fit with no adapters.
- Does not fit with a roll pan
- Nation wide lifetime warranty from DrawTite
Towing with a round tube hitch
A round tube receiver transfers towing loads into the vehicle frame through its welded mounting body. The receiver opening accepts a standard ball mount, and the pin and clip hold the mount in place during every tow. Because the rating is set by the receiver and the vehicle together, match the ball mount and trailer to the Class III/IV rating rather than to the tube shape alone.
Regular checks help a rear hitch last. Look at the welds and the mounting bolts after rough trails or road trips, and watch for play in the receiver when the ball mount is installed. A worn pin or a cracked clip should be replaced before the next tow, since either can allow the mount to shift under load.
- Match the ball mount to the receiver opening
- Check the pin and clip before every tow
- Inspect welds after rough road use
- Re-tighten mounting bolts after the first tows
Specifications
| Brand | DrawTite |
|---|---|
| Part number | DRA75527 |
| Tube style | Round tube |
| Receiver size | 2 Inches X 2 Inches |
| Weight class | Class III/IV |
| Mounting position | Rear |
| Roll pan compatibility | Does not fit with roll pan |
| Fitment type | Direct fit |
| Warranty | Nation wide lifetime warranty |
Vehicle fitment
It fits the 2007–2012 Toyota Tundra in Base, Limited and SR5 trims only.
Other Toyota models, other Tundra years, and trims not named in the list are not covered. Confirm your vehicle’s year, model and trim before ordering.

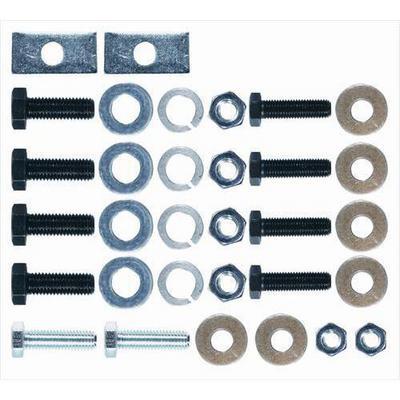

What’s included
Check the package contents against your installation before starting.
