Overview

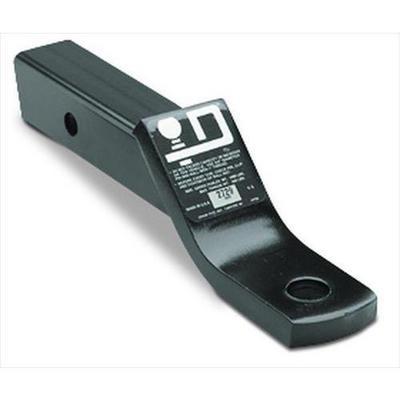

The DrawTite Class III/IV ball mount in black, part number DRA2923, is a steel drop mount with a 2 inch drop. It has a 2 inch by 2 inch shank and a 1 inch ball hole.
The 2 inch drop suits a truck and trailer with a small height difference. It is a universal fit mount, so the Class III/IV rating, the 2 inch drop and the receiver size decide whether it suits your truck. Confirm the tow rating for your setup before towing.
Key features
- 2 inch drop
- Steel construction
- 2 inch by 2 inch shank
- 1 inch ball hole
- Black finish
Before you buy
A drop mount lowers the ball so a trailer can sit level behind a truck with a higher receiver. Measure the receiver height and the trailer coupler height before buying, then compare the difference with the drop. A drop that is too large can tilt the trailer nose up or down, which affects steering and braking, so test the setup on level ground before a longer trip.
Steel mounts should be inspected for cracks at the welds and bends, especially after heavy loads or rough trail use. Check the hitch pin and clip each time, and re-check the ball nut after the first few tows. Replace a mount that shows bending, deep rust or a loose fit, since damage to the shank can fail under load.
- Check the receiver for rust before fitting
- Keep the pin clip with the mount
Specifications
| Brand | DrawTite |
|---|---|
| Part number | DRA2923 |
| Hitch class | Class III/IV |
| Drop | 2 inch |
| Shank size | 2 inch by 2 inch |
| Ball hole size | 1 inch |
| Material | Steel |
| Finish | Black |
| Fitment | Universal Fit |
Vehicle fitment
No vehicle fitment is listed. The mount is not limited to a particular make, model or year, so compare the 2 inch drop and Class III/IV rating against your truck’s receiver height and your trailer.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A small drop still changes the ball height, so measure the receiver and coupler heights before attaching a trailer.
What’s included

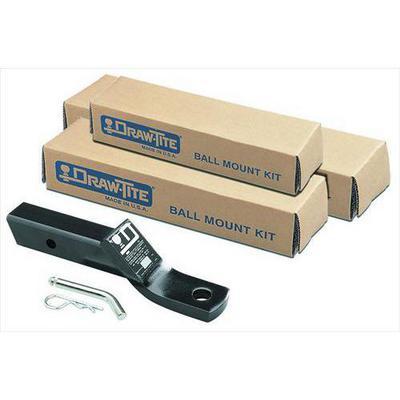

The black drop ball mount, part number DRA2923.
