Overview

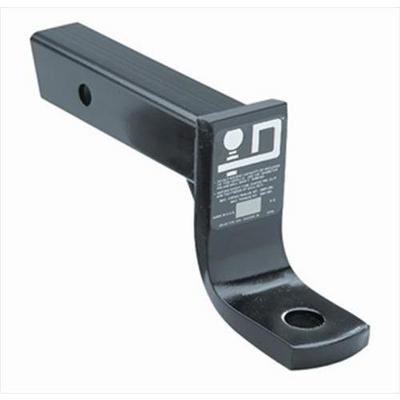

The DrawTite Class III/IV ball mount in black, part number DRA2793, is an all-steel drop mount that lowers a trailer ball by 8 inches. It is built with a 2 by 2 inch shank and a 1 inch ball hole, and the product is marked Universal Fit.
The 8 inch drop suits a lifted truck towing a trailer that sits lower than the hitch. Confirm the tow rating against your truck and trailer before towing.
Key features
- All-steel construction
- 8 inch drop
- 2 by 2 inch shank
- 1 inch ball hole
- Black finish
Measuring for drop
A drop mount lowers the ball to match a coupler that sits below the receiver. Before buying one, measure the height of the receiver opening and the height of the trailer coupler when both are on level ground. The difference tells you how much drop the job needs, and it is the first step in choosing a mount.
Drop changes how the trailer sits. A mount that lowers the ball too far can tilt the trailer nose-down, which shifts weight to the tow vehicle and can affect braking and steering. Level the trailer after hookup and recheck the height after loading, since cargo changes the balance.
- Measure receiver and coupler heights on level ground
- Check that the trailer sits level after hookup
- Recheck the height after loading the trailer
Specifications
| Brand | DrawTite |
|---|---|
| Part number | DRA2793 |
| Hitch class | Class III/IV |
| Drop | 8 inch |
| Shank size | 2 inch by 2 inch |
| Ball hole size | 1 inch |
| Material | Steel |
| Finish | Black |
| Fitment | Universal Fit |
Vehicle fitment
It is Universal Fit, so it is not tied to one make, model or year. The Class III/IV rating and receiver size decide the match with your truck.
Drop mounts change the ball height, so measure the gap between your receiver and trailer coupler before choosing the 8 inch drop.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure the receiver and coupler heights first, then confirm the drop closes that gap. Before towing, confirm the tow rating for your truck and trailer combination.
What’s included
The black drop ball mount, part number DRA2793. Check the package contents against your installation before starting.
