Overview

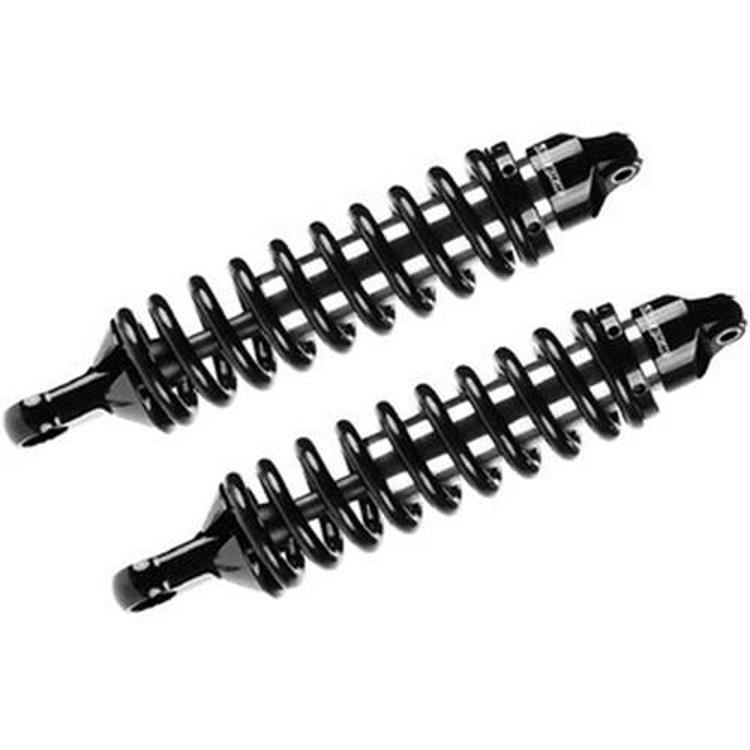

Part FTS22263 is Fabtech’s Dirt Logic 2.5 coil over shock absorber, built for the front of 2015–2017 Ford F-150 trucks set up with a 4 in. lift.
The springs can go solid without breaking, settling or bowing, and the unit is preset with proper preload. It bolts on without extra adjustment.
Key features
- Front-position coil over shock
- Designed for a 4 in. lift
- Springs said to tolerate going solid without breaking, settling or bowing
- Preset with proper preload
- Matched to PN K2258DL
Lift height and preload
Lift height changes the geometry of the front end, so the shock length and mounting positions need to suit the amount of lift. Confirm that the matched kit is the one you plan to use before the shock goes in, because the pairing affects spring height.
Preset preload means the spring is already set at the factory, but it should still be seated correctly in both perches. Check that the spring sits square and the top mount turns freely, then tighten all nuts to the correct torque.
After installation, check the front alignment and look for rubbing at full compression. Road-test the truck at low speed on uneven pavement and listen for knocks or binding before returning to normal use.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FTS22263 |
| UPC | 674866105560 |
| Position | Front |
| Lift height | 4 in. |
| Shock type | Coil over |
| Compatible kit part number | K2258DL |
| Fitment type | Direct fit |
Vehicle fitment
The fitment Fabtech lists is the 2015–2017 Ford F-150 in King Ranch, Limited, Lariat, Platinum, SSV, XL and XLT trims.
Super Duty, earlier years and other Ford models are not part of this fitment. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the PN K2258DL pairing against your lift before installing. A front alignment check is a sensible step after changing ride height.
What’s included
This package is one coil over shock absorber. Confirm any hardware you need before installation.
