Overview
The Bombshell cover is made to protect the gears, locker and cover bolts from rock and trail hazards. Its ramp profile helps the vehicle slide over obstacles, and its thickest section sits where rocks most often strike.
The Bombshell cover is intended to protect the gears, locker and cover bolts from rock and trail hazards. Its profile is a ramp that helps the vehicle slide over obstacles, and the bolt ring is the thickest part of the cover where rocks are most likely to strike.
Differential covers matter most on the trail because the cover is the lowest part of the axle housing and the part most likely to meet rock. The ring and pinion gears, the locker and the carrier bearings sit behind it, so a cover that holds up keeps those parts protected and the gear oil in place.
The kit includes one cover for each axle, so a Dana 30 and a Dana 44 can be done together. Each cover comes with its own gasket, and gear oil is included in a quantity of four.
Key features
- Bombshell covers for Dana 30 and Dana 44 differentials
- Recesses that protect the cover bolt heads from trail damage
- Ramp profile to help the vehicle slide over obstacles
- Gaskets for both covers
Fluid and fill checks
Installing a new cover is also a good time to check the gear oil. Clean both mating surfaces fully before fitting the gasket, and check for old sealant or grit that could cause leaks. Use the synthetic 75W-90 gear oil in the kit, and fill to the level mark so the gears run in oil at the right height.
After the first drives, check the cover for seepage around the bolts and gasket. Fresh oil spots after a trail run are a sign the bolts need a recheck. Tighten evenly across the cover so the gasket compresses without warping the flange.
A cover that takes a hit should be looked at before the next trip. Dents near the bolt ring can distort the flange, and cracks near the bolt holes can let oil escape.
- Clean mating surfaces before fitting the gasket
- Fill to the level mark with the included oil
- Recheck bolts after the first drives
Specifications
| Brand | Genuine Packages |
|---|---|
| Part number | JKD30D44DIFC2 |
| Axle location | Front and rear |
| Axle manufacturer | Dana |
| Oil capacity | Standard |
| Finish | Natural |
| Gear oil | Synthetic 75W-90, quantity 4 |
Vehicle fitment
The covers are sized for Dana 30 and Dana 44 axles, so measure your axle before ordering.
Installation notes
The material is given as both aluminum and cast ductile nodular iron, so confirm which one the cover is made from before ordering.
What’s included

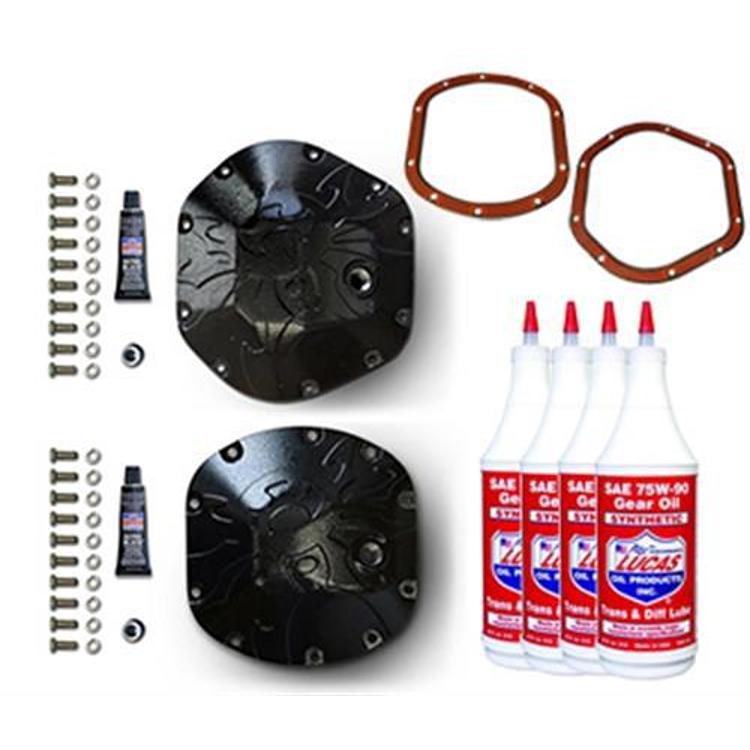

Dana 30 Bombshell differential cover, Dana 44 Bombshell differential cover, Dana 44 differential cover gasket, Dana 30 differential cover gasket and synthetic 75W-90 gear oil, quantity 4.
