Daystar 3 Inch Suspension Lift Kit – KJ09153BK

Daystar

In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 2:30 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3-inch suspension lift kit with front and rear coil spacers
  • Front and rear shocks included
  • Front track bar bracket, rear sway bar brackets and bump stop extensions included
  • Maximum tire size 35×12.50

Description

Overview

The Daystar KJ09153BK is a 3-inch suspension lift kit with front and rear coil spacers, bump stop extensions, front and rear shocks, a front track bar bracket and a hardware kit. It fits 2-door and 4-door models and accepts a maximum tire size of 35×12.50. Before ordering, confirm fit against your vehicle’s year, model and trim.

The kit raises ride height within the factory suspension design, so few other modifications are needed. Rear sway bar brackets are included. Any extra parts a given vehicle may need, such as longer shocks, should be confirmed before installation.

Key features

  • 3-inch lift height
  • Front and rear coil spring spacers
  • Front and rear shocks
  • Front track bar bracket
  • Rear sway bar brackets
  • Bump stop extensions

Before you install the kit

A suspension lift changes the geometry the factory parts were built around, so the front end and driveline deserve attention alongside the spacers. Coil spacers raise the body without changing the spring rate, which is why a spacer kit is often paired with shocks suited to the new ride height. Check brake lines, steering linkage and driveline clearance once the kit is in place.

Bump stop extensions limit how far the axle can compress, so they matter most on rough ground where the suspension travels its full range. Worn ball joints, tie rod ends and bushings carry more load at a higher ride, so inspect them before the install and replace any with play.

  • Re-torque spacer and bracket hardware after the first few drives
  • Look for cracks or shifting in the coil spacers after hard trail use
  • Recheck the track bar position whenever the front end is serviced

Specifications

Brand Daystar
Part number KJ09153BK
UPC 814423019453
Lift height 3 inches
Front Coil spring spacers, track bar bracket, shocks
Rear Coil spring spacers, sway bar brackets, bump stop extensions, shocks
Max tire size 35×12.50
Body style 2-door and 4-door

Vehicle fitment

The kit covers a lift range of 3 to 4.99 inches and suits 2-door and 4-door bodies. Check fit for your year, model and trim before you order.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit includes a front track bar bracket, so check the track bar position after the spacers and brackets are installed. Recheck the alignment once the lift is complete.

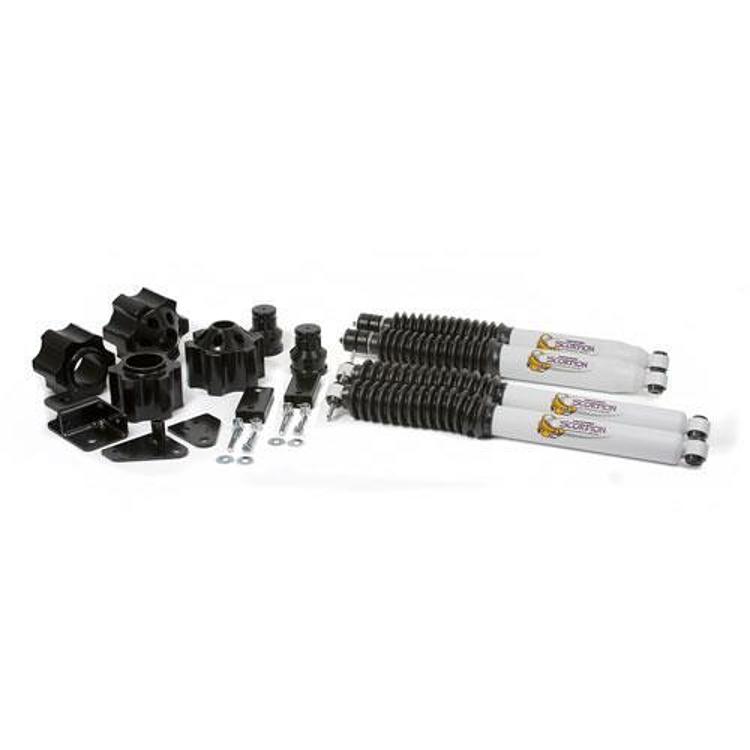

What’s included

Front and rear coil spring spacers, front and rear shocks, a front track bar bracket, rear sway bar brackets, bump stop extensions and a hardware kit.

SKU: DAYKJ09153BK Category:

Specification

Shipping weight 38.25 lbs
Package dimensions 22.00 × 17.00 × 6.00 in
brands

Questions & Answers

How much lift does the KJ09153BK give?

3 inches, using front and rear coil spacers. The kit also includes bump stop extensions and a front track bar bracket, which need checking against the track bar position.

Are shocks included?

Yes. Front and rear shocks are included with the kit. A hardware kit is also supplied, so the mounting parts are in the box.

Does it include a track bar bracket?

Yes. A front track bar bracket comes with the kit, and rear sway bar brackets are included as well. Check the track bar position after installation and recheck alignment.

Which vehicles does it fit?

It fits 2-door and 4-door vehicles and gives a lift range of 3 to 4.99 inches. Check fit against your vehicle's year, model and trim before you order.

Do worn ball joints need replacing with a spacer lift?

Often yes. A lift puts more load on ball joints, tie rod ends and bushings, so inspect them before installing the kit and replace any that show play or cracking. Replacing them during the install avoids pulling the kit apart later.

How often should the lift hardware be checked?

Check the bolts after the first few drives and again after any hard trail use. Look for loosened brackets, shifted spacers and worn bump stops. Retightening is quick and catches problems before they affect steering or braking.
