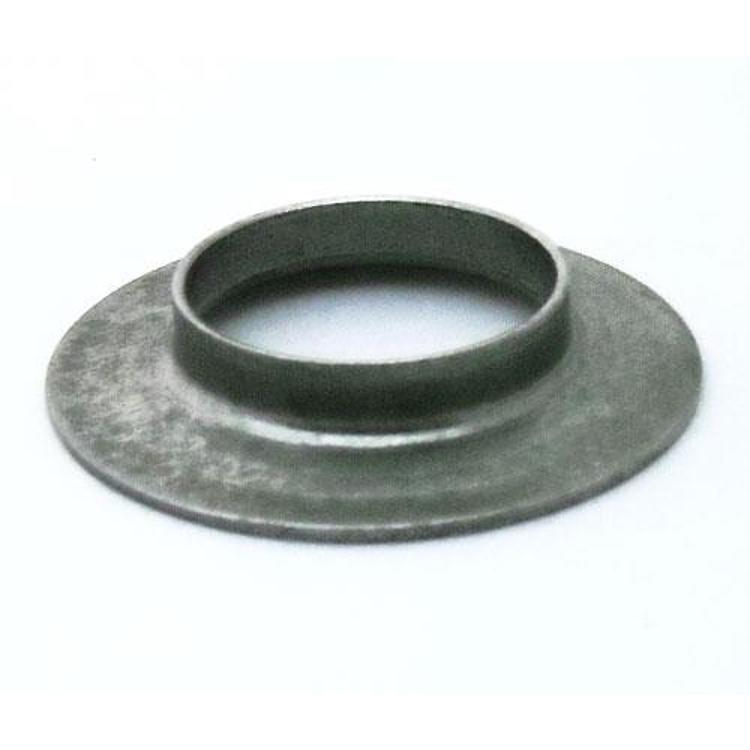

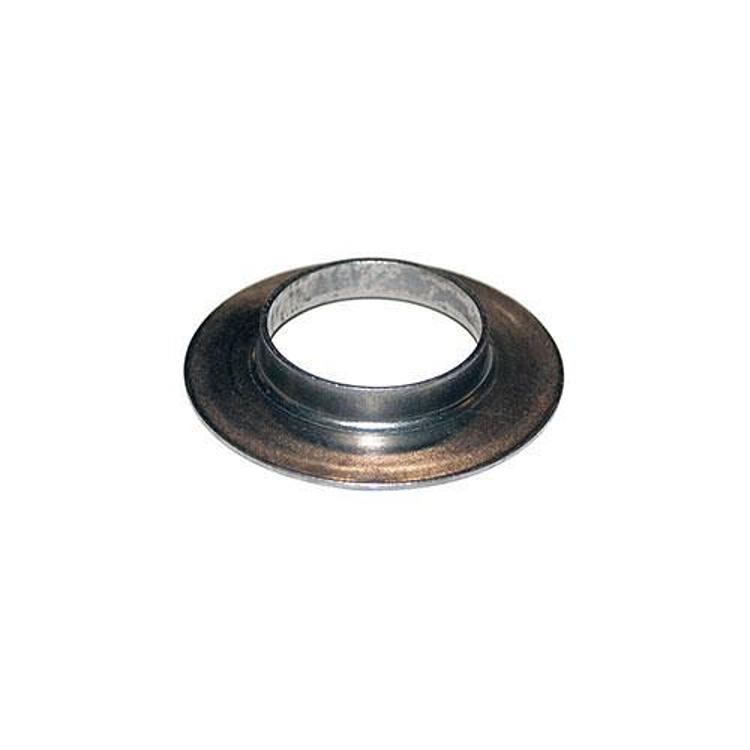

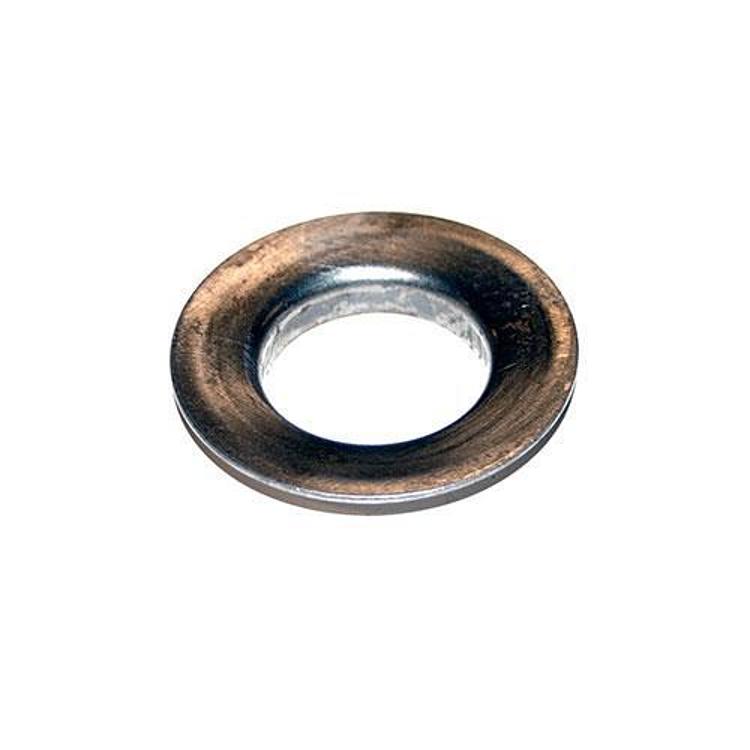

Dana Spicer Inner Axle Dust Shield – 35168

Dana Spicer

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Dana Spicer inner axle dust shield for front Dana 30 Standard axles
  • Part number 35168, UPC 259759762305
  • Helps keep dirt and debris out of the axle tube

Description

Overview

The Dana Spicer 35168 is an inner axle dust shield for front Dana 30 Standard axles. It is a simple slinger that helps keep dirt and debris out of the axle tube, protecting the inner axle seals from damage.

Key features

  • Helps keep dirt and debris out of the axle tube
  • Protects the inner axle seals
  • Front axle location
  • Dana 30 Standard axle type

Signs the inner seal needs attention

Inner axle seals keep lubricant in and dirt out of the axle tube, and a dust shield helps by limiting debris that reaches them from the outside. Grease or gear oil on the inside of the wheel, the brake parts or the tire is a common sign the seal is leaking. A dust shield can also be bent or cracked, which lets grit in faster than the seal can handle.

When servicing the area, check the shield for dents, cracks and a loose fit against the axle housing. Clean the surrounding area before reassembly so debris does not get trapped under the shield. Replacing a damaged shield along with a worn inner seal keeps the new seal from being exposed to the same contamination.

  • Look for grease on the brake or hub area
  • Check the shield for dents and cracks
  • Clean debris before reassembly

Specifications

Brand Dana Spicer
Part number 35168
UPC 259759762305
Axle location Front
Axle type Dana 30 Standard
Fitment Universal fit

Vehicle fitment

It is universal fit and made for front Dana 30 Standard axles.

Axle type is not a vehicle model, so check which vehicles use a Dana 30 Standard front axle before ordering. Confirm your vehicle’s year, model and trim before ordering.

What’s included

The dust shield is the only item in the package.

Specification

Shipping weight 1.00 lbs
Package dimensions 6.00 × 6.00 × 4.00 in
brands

Questions & Answers

Does the Dana Spicer 35168 fit a Dana 30 Standard axle?

Yes. It is made for front Dana 30 Standard axles and is universal fit. Confirm the axle type on your vehicle before ordering.

What does the inner axle dust shield protect?

It helps keep dirt and debris from getting into the axle tube, which protects the inner axle seals. It works as a simple slinger on the front axle.

What are the part number and UPC for this shield?

The part number is 35168 and the UPC is 259759762305, both from Dana Spicer. Compare the part number with your current shield before ordering.

How do I tell if the inner axle seal is leaking?

Look for grease or gear oil on the inside of the wheel, brake components and tire. Check the seal lip for cracks, hardening or flat spots. A leak that returns after a fresh seal often points to a damaged shield or a problem in the axle tube.
