Overview

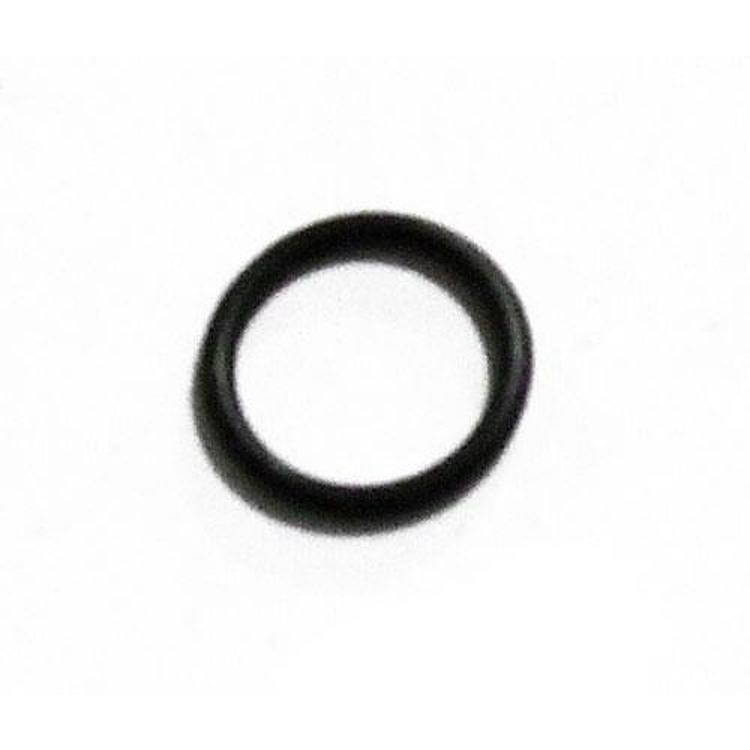

The Dana Spicer 620980 is an O-ring for an axle disconnect actuator, sold as an O.E.M. replacement for a Dana 30 Reverse axle. It is meant for owners who want to replace or recondition a disconnect system that has stopped working properly.
Dana Spicer marks this O-ring as universal fit by axle type. It is not tied to a specific vehicle model, so match the Dana 30 Reverse axle type to your axle before fitting it.
Key features
- Original equipment manufacturer part from Dana Spicer
- O-ring for the axle disconnect actuator
- Made for the Dana 30 Reverse axle type.
- Part number 620980 for matching during a rebuild
Disconnect actuator seal wear
A disconnect actuator uses seals to hold lubricant and keep the shift mechanism working. Over time, rubber O-rings harden, flatten and lose their grip, which can let fluid seep past. Seal failure is often first noticed as a light film of fluid around the actuator body. When the actuator is opened for service, the O-ring is normally replaced along with other seals in that assembly, since an aged ring can leak again soon after the rebuild.
Before fitting a replacement, clean the groove and inspect it for nicks that could cut a new ring. Lubricate the O-ring lightly with the fluid used in the axle so it seats without pinching. While the actuator is apart, check the disconnect hub and shift fork for wear, because a worn component can damage a fresh seal. Keep the old ring for comparison if the fit is in doubt.
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 620980 |
| UPC | 70000007874 |
| Component | O-ring for axle disconnect actuator |
| Axle type | Dana 30 Reverse |
| Fitment listed | Universal fit |
Vehicle fitment
This O-ring is not vehicle-specific. It is universal fit for the Dana 30 Reverse axle type, with no vehicle years or models named, so check the axle type before fitting it.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One O-ring for the axle disconnect actuator, part number 620980. Confirm how many you need before fitting.
