Overview

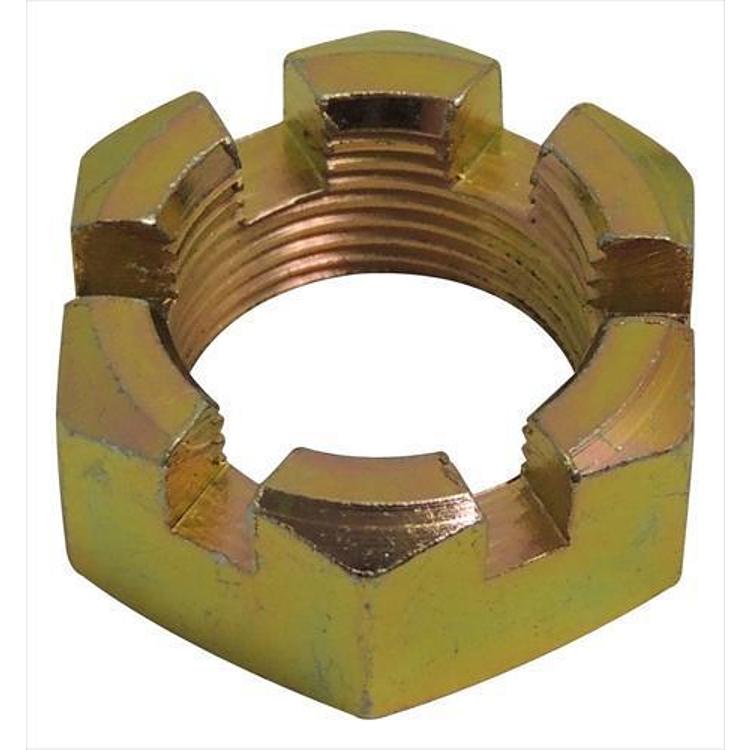

The Crown Automotive J8130364 is a castle nut for Model 18 transfer cases, for front or rear output. A castle nut holds the output yoke or flange on the shaft, so confirm the Model 18 application and output position before ordering.
Part number J8130364 and UPC 848399070255 identify the nut. The fitment type is Direct Fit.
Key features
- Castle nut for Model 18 transfer cases
- Made for front or rear output
- Direct Fit fitment type
- Identified by part number J8130364
Torquing and retaining the nut
A castle nut clamps the output yoke or flange onto the shaft, and its slots allow a cotter pin to lock it in place. Because the nut sets the clamp load, tighten it to the value given in the vehicle’s service procedure rather than by feel. Backing off the nut to line up a slot can reduce preload, so tighten to the next slot that lines up instead.
Inspect the shaft threads and nut before reuse. Burrs, stretched threads or damaged slots call for replacement. Use a new cotter pin, and bend its ends neatly so they cannot rub the boot or nearby parts. After the first drive, check the nut for movement and look for seepage around the output seal.
- Inspect shaft threads for damage before fitting
- Use a new cotter pin at each assembly
- Check for movement and seepage after the first drive
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J8130364 |
| UPC | 848399070255 |
| Component | Castle nut |
| Transfer case | Model 18 |
| Output position | Front or rear |
| Fitment type | Direct Fit |
Vehicle fitment
No vehicles are named for this castle nut. The Model 18 transfer case is the application stated, so check that your unit is a Model 18 before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The castle nut, part number J8130364.
Not included: The output yoke or flange and other transfer case hardware are separate parts.
