Overview

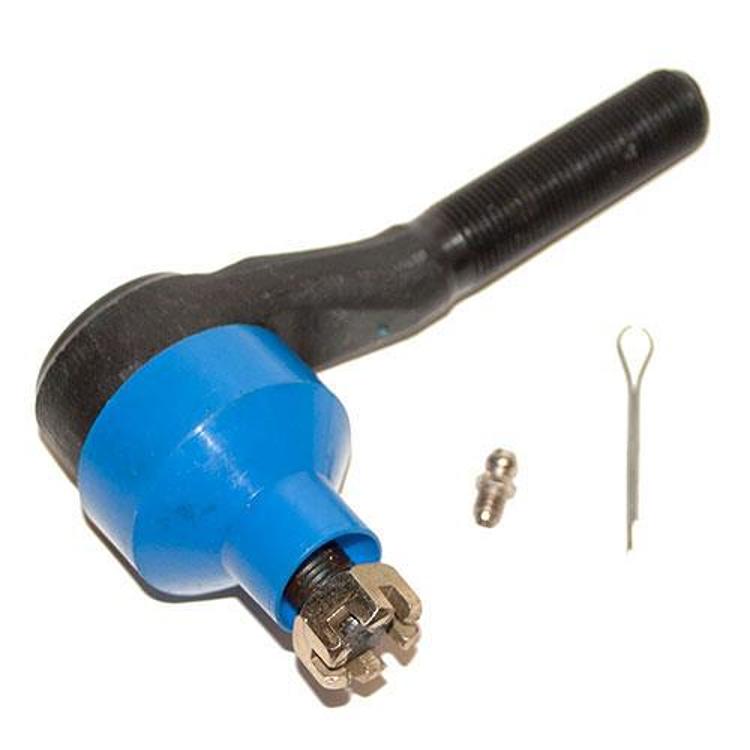

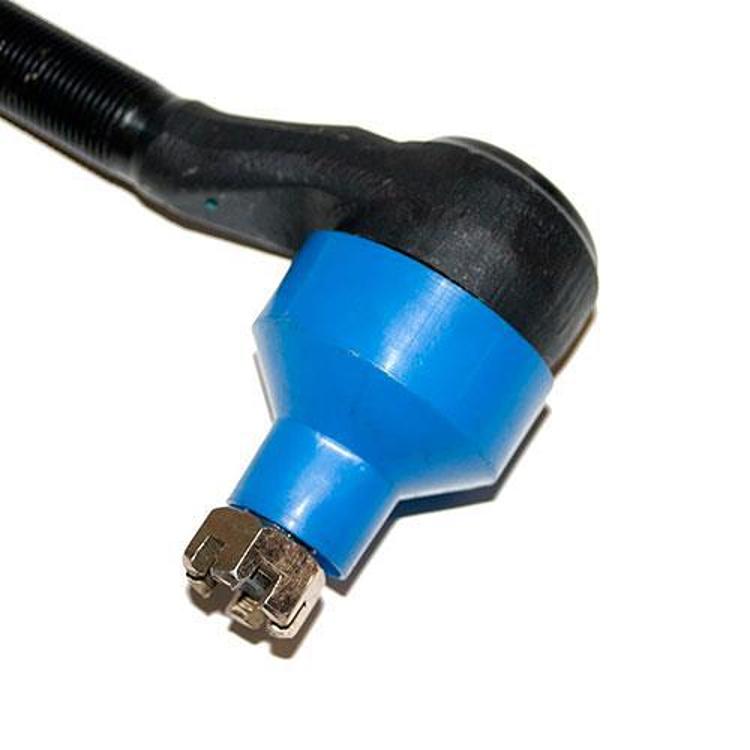

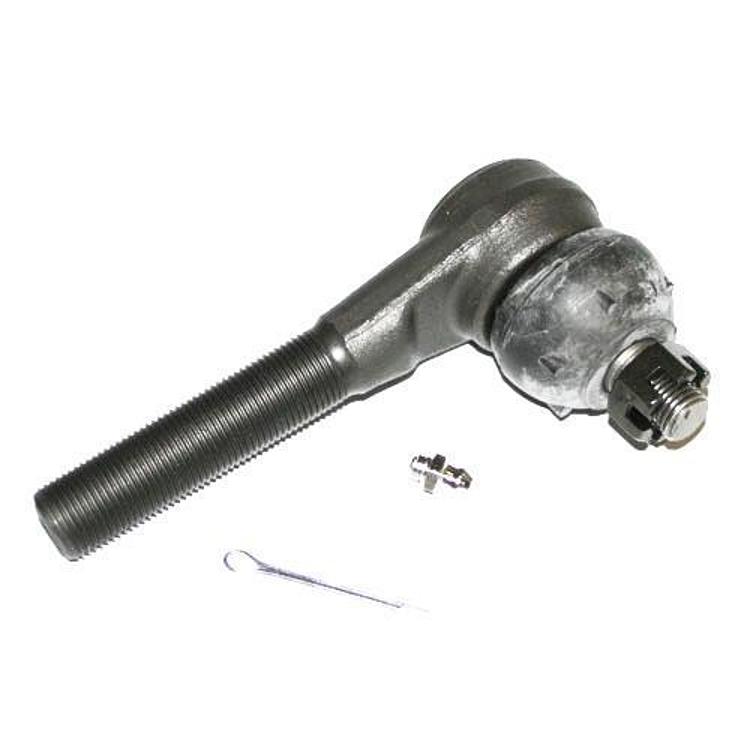

The Crown Automotive 52000598 is a tie rod end that mounts to the pitman arm. It is a replacement steering part for Jeep vehicles.
It mounts at the pitman arm and carries UPC 848399012408. No vehicle years, models or trims are tied to it.
Key features
- Mounts to the pitman arm
- Replacement tie rod end
- Part number 52000598
- Direct fit replacement tie rod end
Pitman arm steering parts
The pitman arm converts steering box movement into side-to-side motion, and a tie rod end attached there carries that motion to the steering linkage. Because the joint takes the full steering load, play at the end feels like vague steering, wandering on the road or uneven tire wear. A replacement end should be chosen for the position it occupies, since the arm, drag link and inner ends each carry different loads.
When replacing this type of end, check the boot, the threaded stud and the grease fitting if one is fitted, and compare the stud length with the old part. Plan to have the alignment set afterward, and look at the steering centre and tire wear within the first few drives.
- Check for play at the stud by hand
- Inspect the boot for tears or dried grease
- Compare stud length and thread before fitting
- Replace the cotter pin or nut when the end is removed
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 52000598 |
| UPC | 848399012408 |
| Type | Tie rod end |
| Mounts to | Pitman arm |
| Fitment | Direct fit, no vehicle named |
Vehicle fitment
It is a direct fit Jeep part, with no year, model or trim tied to it. Compare the pitman arm connection with your original part before installing.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because this end attaches to the pitman arm, check the connection and stud size against the original part before removing it. Have the steering alignment checked once the new end is in place.
What’s included
One tie rod end. No other parts are listed with it.
