Overview
The 4723367MK is a rear brake shoe master kit for 9 inch x 2.5 inch brakes, including shoes, lining and hardware. It fits the 1990–1999 Jeep Cherokee (XJ), the 1997–2000 Wrangler (TJ) and the 1990–1995 Wrangler (YJ).
A master kit puts the shoes, lining and hardware in a single package, so the rear brakes can be rebuilt without gathering separate small parts.
Key features
- Rear brake shoe master kit
- Includes shoes, lining and hardware
- Made for 9 inch x 2.5 inch brakes
- Direct-fit replacement design
Rebuilding the rear drum brakes
A shoe kit replaces the friction surfaces that wear against the drum, along with the small hardware that holds the shoes in place. Before installing new shoes, measure the drum and check that it is smooth and round, because worn drums can cause new lining to wear unevenly. Springs and hold-down hardware should be checked for stretching or heat damage.
Inspect the wheel cylinders and the adjuster while the drums are off, since a leaking cylinder can soak new lining within a short time. Lubricate the contact points on the backing plate lightly, and keep grease off the lining. Adjust the shoes to the drum once the assembly is complete, then road test the brakes at low speed before normal driving.
- Measure and inspect the drum before assembly
- Replace springs that show heat discoloration
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 4723367MK |
| UPC | 848399075861 |
| Part type | Brake shoe master kit |
| Brake size | 9 inch x 2.5 inch |
| Position | Rear |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1990–1999 Jeep Cherokee (XJ), the 1997–2000 Wrangler (TJ) and the 1990–1995 Wrangler (YJ).
The covered years end at 1999 for the Cherokee and at 2000 for the TJ. Confirm fit for your vehicle’s year, model and trim before ordering.

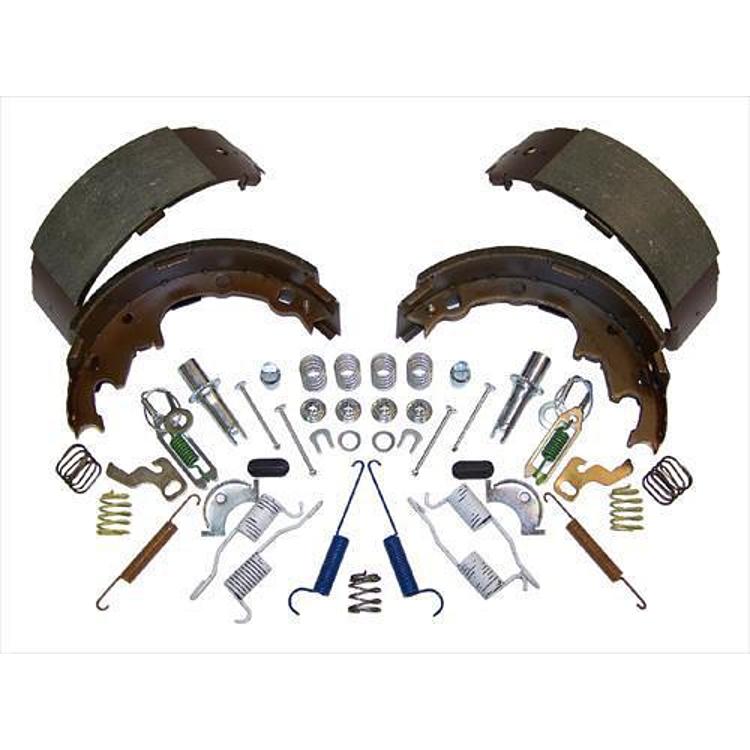

What’s included
- Brake shoes
- Lining
- Hardware
