Overview

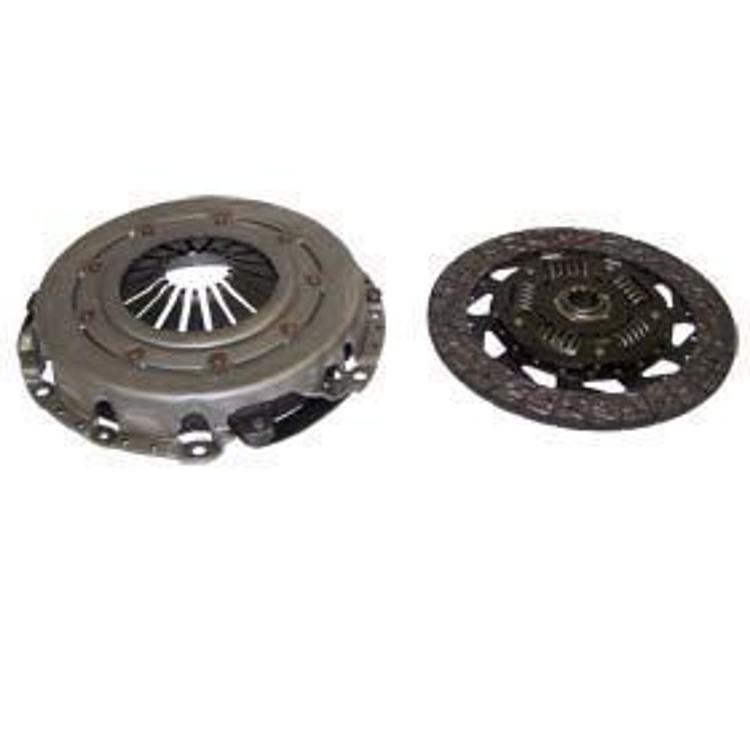

The Crown Automotive clutch kit, part 52104732AB, fits the 2007–2011 Jeep Wrangler (JK) with the 3.8L V6 engine, in 2-door and 4-door models.
The kit is a pressure plate and clutch disc set. It replaces the friction and clamping components and does not include a release bearing.
Key features
- Pressure plate and clutch disc
- For the 3.8L V6 engine
- For 2-door and 4-door Wrangler JK models
- Crown Automotive part number 52104732AB
Release and pilot bearing
A clutch kit wears as a set, and the pressure plate and disc share the load every time the pedal is pressed. Wear shows up as slipping under load, a burning smell, a high engagement point or shudder when pulling away. The release bearing and pilot bearing sit outside the friction surfaces but are reached in the same job, so they are commonly inspected while the transmission is out.
Check the flywheel face for heat cracks, scoring or glazing, and resurface or replace it if needed before the new disc goes in. Inspect the release bearing for rough rotation and the pilot bearing for play, and replace either one that shows wear. Clean the splines of the input shaft so the new disc slides freely.
- Slipping under load
- Burning smell after hard use
- Shudder when pulling away
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 52104732AB |
| UPC | 848399085358 |
| Product type | Clutch kit |
| Includes | Pressure plate and clutch disc |
| Engine | 3.8L V6 |
| Body | 2-door and 4-door |
Vehicle fitment
It fits the 2007–2011 Jeep Wrangler (JK).
The fit ends at 2011, so 2012 and later Wrangler JK years fall outside the range given. Check your year, model and trim against this kit before ordering.
Installation notes
Because the kit does not include a release bearing, inspect the release bearing and pilot bearing while the transmission is out, and order them separately if they show wear.
What’s included
The kit includes the pressure plate and clutch disc only.
Not included: The release bearing is not included in this kit.
