Overview

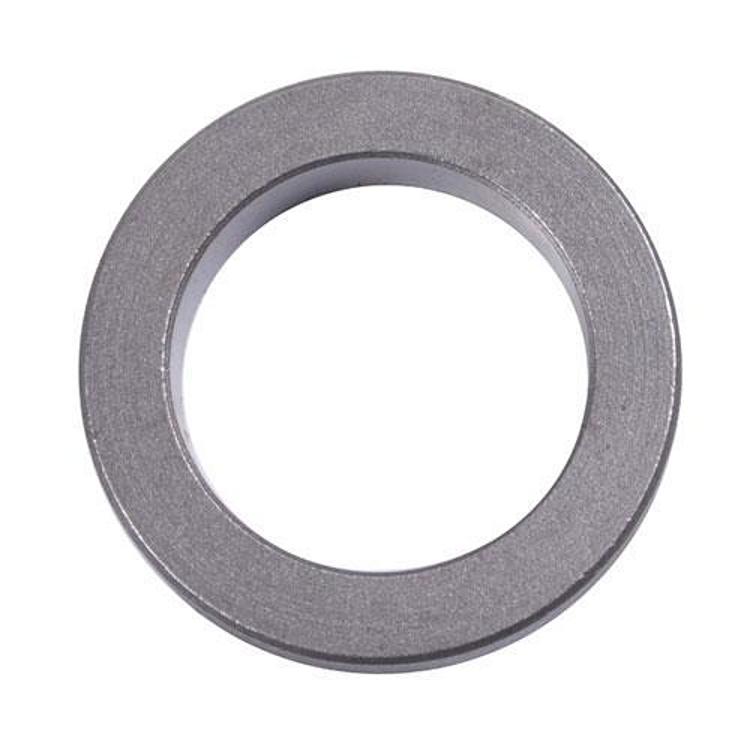

The Crown Automotive 83503077 is an axle bearing retaining ring with a 2-1/4 inch outside diameter for the rear inner position. It fits a wide range of Jeep models, from the SJ Cherokee and Wagoneer to the Wrangler YJ, TJ and JK. It is a direct fit.
An axle bearing retaining ring, also called a snap ring, is a small spring clip that keeps an axle shaft bearing from moving along the shaft. It is a modest part, but it is the item that holds the bearing in place, so a worn or distorted ring is worth replacing during an axle shaft or bearing job.
Crown describes itself as a maker and distributor of replacement parts for Jeep vehicles, with over 8,000 part numbers including many factory-discontinued items. The only measurement Crown gives for the ring is its outside diameter, so compare that figure with the ring you are replacing.
Key features
- Axle bearing retaining ring (snap ring)
- 2-1/4 inch outside diameter
- Rear inner position
- Listed by Crown as a direct fit
- Listed across SJ, XJ, CJ, Comanche, Wagoneer, J-series and Wrangler models
- Wide year coverage, from 1970 to 2018
Snap ring installation checks
An axle bearing retaining ring holds the bearing against a shoulder, so it carries the load that tries to push the bearing out of its seat. Rings that have been pried open too far lose their spring force and can slide out of the groove. A ring that looks bent, flattened or discolored from heat is best replaced rather than reused, even if it still fits.
When fitting a new ring, seat it fully in the groove and make sure it sits evenly all the way around. A ring that sits partly out of its groove can cause the bearing to walk and make noise. Check the bearing and the surrounding parts for wear at the same time, since a loose bearing or a damaged housing bore can cause the same symptoms as a bad ring.
- Replace a ring that looks bent or heat-discolored
- Use snap ring pliers that fit the ring’s opening
- Confirm the ring is fully seated before reassembly
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 83503077 |
| UPC | 848399025163 |
| _pn | 83503077 |
| Part type | Axle bearing retaining ring (snap ring) |
| Outside diameter | 2-1/4 inch |
| Position | Rear inner |
| Fit type | Direct fit (Crown) |
Check the ring’s material, thickness and any included hardware against your installation before starting.
Vehicle fitment
The years differ for each Jeep model line, so compare your model and year against the ranges below. Fitment applies to whole models and years, not to particular trims.
The manufacturer fitment list for part 83503077 covers: 1974–1983 Jeep Cherokee (SJ); 1987–1990 Jeep Cherokee (XJ); 1970–1975 Jeep CJ5; 1970–1975 Jeep CJ6; 1986 Jeep CJ7; 1986–1992 Jeep Comanche; 1984–1991 Jeep Grand Wagoneer (SJ); 1974–1988 Jeep J10; 1974–1988 Jeep J20; 1971–1990 Jeep Wagoneer (SJ); 2007–2018 Jeep Wrangler (JK); 1997–2006 Jeep Wrangler (TJ); 1988–1995 Jeep Wrangler (YJ).
Not listed: Cherokee (XJ) before 1987 or after 1990, Wrangler (YJ) before 1988, Wrangler (JK) before 2007, the Wrangler (JL), and any CJ outside the years shown. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The ring seats on the rear axle shaft inside the axle housing, so the shaft has to be removed to reach it. Retaining rings should seat fully in their groove; reuse of a stretched ring is not recommended.
What’s included
- Axle bearing retaining ring, 83503077
