Crown Automotive AX4

Crown Automotive

$19.97Usually ships within 6 to 7 days
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 3:40 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

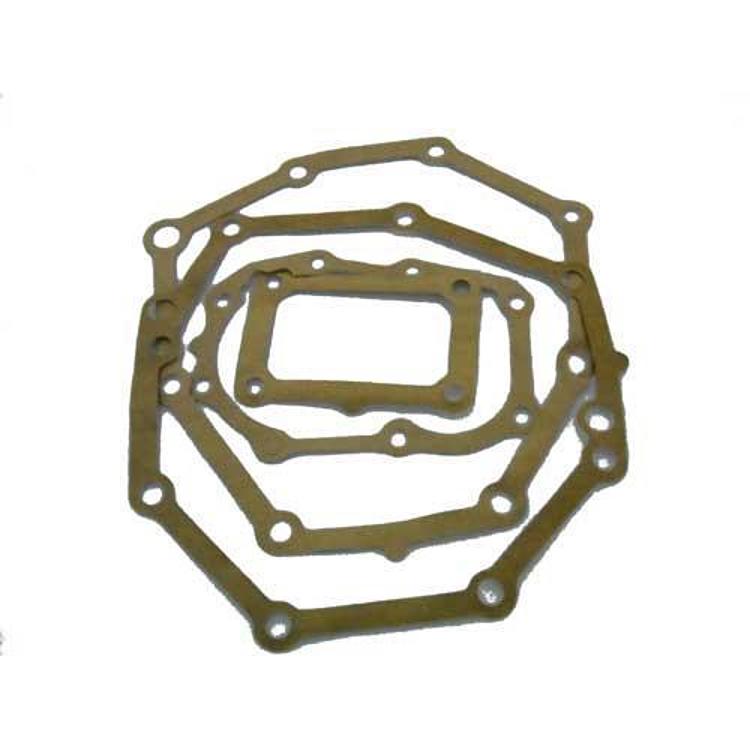

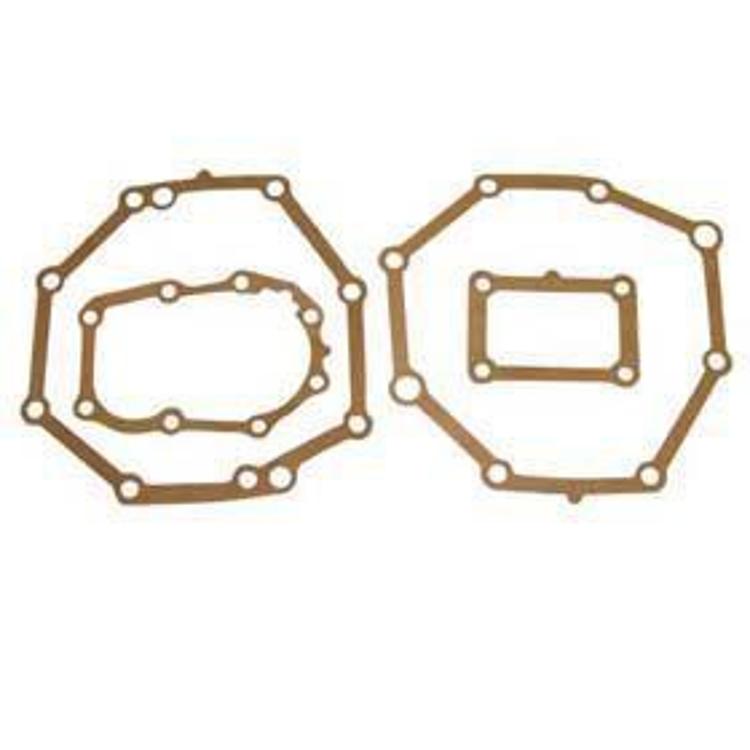

  • AX4 gasket kit, part 83500632, from Crown Automotive
  • Crown Automotive names the AX4 and AX5 transmissions for this kit
  • Fits 1984–2000 Jeep Cherokee (XJ), 1986–1992 Jeep Comanche, 1987–1995 Jeep Wrangler (YJ) and 1998–2002 Jeep Wrangler (TJ)
  • Gasket set only, UPC 848399075182

Description

Overview

The Crown Automotive AX4 gasket kit, part 83500632, is made for the AX4 and AX5 transmissions. It fits the 1984–2000 Jeep Cherokee (XJ), the 1986–1992 Jeep Comanche, the 1987–1995 Jeep Wrangler (YJ) and the 1998–2002 Jeep Wrangler (TJ).

Because this kit is sized by transmission rather than one vehicle range, match the AX4 or AX5 in your Jeep before choosing it. The years covered are a guide to which vehicles use those transmissions, not a replacement for checking your own unit.

Key features

  • Gasket kit named for the AX4 and AX5 transmissions
  • Fits several Cherokee, Comanche and Wrangler years from 1984 to 2002
  • Part number 83500632 with UPC 848399075182
  • Gasket kit contents are described only as gasket kit

Planning a transmission gasket job

A gasket job on an AX4 or AX5 is mostly preparation. The fluid comes out first, the covers are opened, and the old material has to be removed from both faces before anything new goes in. Surfaces that look clean often hold old gasket residue, so work slowly and keep debris out of the internal passages.

Keep the parts in order as you go, so the right gasket goes back in the right place. Check mating faces for scoring or warp, and replace any seal you disturb when the cover comes off. Refill with the fluid your transmission requires once the new gaskets are torqued and the job is complete, and check for leaks on the first drive. Leave the new gaskets in their packaging until the moment they are fitted.

Specifications

Brand Crown Automotive
Part number 83500632
UPC 848399075182
Product type Gasket kit
Transmissions AX4 and AX5

Vehicle fitment

It fits the 1984–2000 Jeep Cherokee (XJ) in Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE and Sport trims; the 1986–1992 Jeep Comanche in Base, Chief, Custom, Eliminator, Laredo, Pioneer, X and XLS trims; the 1998–2002 Jeep Wrangler (TJ) in SE, Sahara, Sport and X trims; and the 1987–1995 Jeep Wrangler (YJ) in Base, Islander, Laredo, Rio Grande, S, SE, Sahara and Sport trims.

It does not fit the Wrangler TJ after 2002, the Cherokee after 2000 or the Wrangler JK. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Gasket work on these transmissions usually involves draining fluid and cleaning the mating surfaces, so plan the job around that. Remove the old gaskets completely before fitting the new set.

What’s included

One gasket kit for the AX4 and AX5. Check the package contents against your installation before starting, including whether seals are needed.

SKU: CRO83500632 Category:

Specification

Shipping weight 0.12 lbs
Package dimensions 12.00 × 9.00 × 9.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1984–2000Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE, Sport
Jeep Comanche1986–1992Base, Chief, Custom, Eliminator, Laredo, Pioneer, X, XLS
Jeep Wrangler (TJ)1998–2002SE, Sahara, Sport, X
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Crown AX4 gasket kit 83500632 fit an AX5 transmission?

Yes, Crown Automotive names both the AX4 and AX5 transmissions for this gasket kit. Confirm which transmission is in your Jeep before choosing it, because the fitment years cover several models.

Which Jeep models does part 83500632 fit?

It fits the 1984–2000 Jeep Cherokee (XJ), the 1986–1992 Jeep Comanche, the 1987–1995 Jeep Wrangler (YJ) and the 1998–2002 Jeep Wrangler (TJ). The Wrangler JK is not covered, so confirm your year, model and trim before ordering.

Does the AX4 gasket kit include seals or a set number of gaskets?

This is a gasket kit only. Check the package contents against your installation and confirm which seals your transmission setup needs before ordering. Gasket kits for these transmissions usually need extra seals depending on the rebuild, so plan the full parts list before starting the job.

How should the mating surfaces be cleaned?

Use a plastic scraper and a solvent that is safe for aluminum to remove old gasket material. Keep debris out of the case, wipe the surfaces dry and fit the new gaskets while they are clean.
