Overview

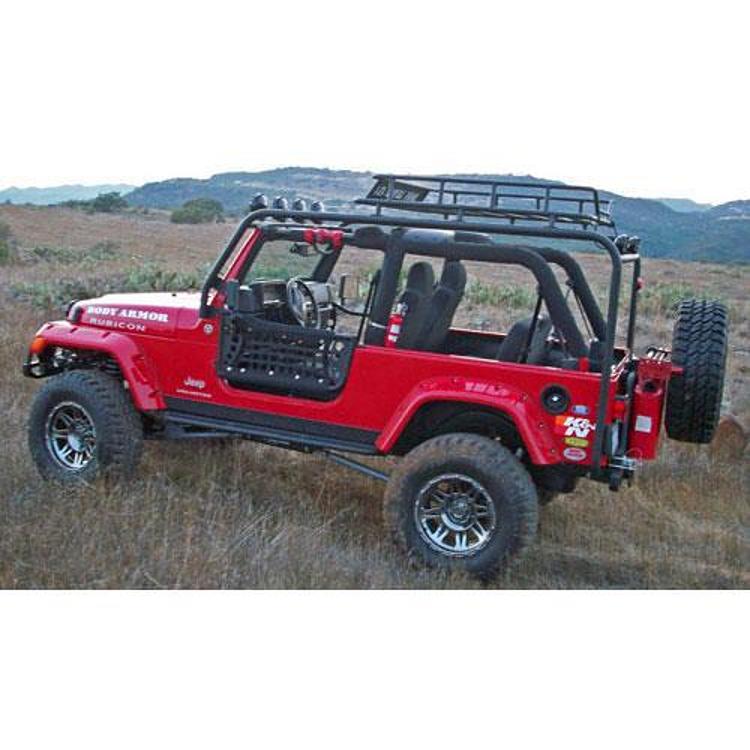

The Body Armor TJ-6124 is a textured black steel roof rack base made from 2-inch .120 wall tubing. It has a front light bar that holds 4 lights and a rear light bar that holds 2 lights. It fits 2004–2006 Jeep Wrangler LJ Unlimited and Unlimited Rubicon models.
The rack bolts on by attaching to the windshield hinges and at the frame at the rear. The soft top or hardtop can be removed with the base rack installed. The Body Armor cargo basket PN 5124 attaches to this base.
The part number carries a TJ code, but it fits 2004–2006 Wrangler LJ models, so confirm the year and model before choosing it. On a JK four-door hardtop, the T top can be removed even with the cargo basket installed.
Key features
- Textured black finish
- Front light bar holds 4 lights
- Rear light bar holds 2 lights
- Bolt-on mounting at the windshield hinges and rear frame
- Soft top or hardtop removable with the base installed
- Cargo basket PN 5124 attaches to the base
Choosing a light bar setup
A roof rack base carries the weight of the rack, the gear and any lights, so its mounting points at the windshield hinges and rear frame do most of the work. Before you buy, think about how you will load the rack. Heavy cargo placed high raises the center of gravity, and wind pressure at highway speed pulls on the whole assembly. Spread weight evenly across the base and keep the heaviest items low and centered.
Light bars add wiring to the roof area. Run any auxiliary light wiring through a fused circuit, secure the harness so it cannot rub on the top or the rack tubing, and aim each light with the vehicle parked on level ground. Lights mounted high change the beam pattern, so plan the aim before the first night drive.
- Check bolt tightness after the first few drives
- Look for cracked welds or paint chips that can start rust on steel
- Keep harness clips clear of moving top panels
Specifications
| Brand | Body Armor 4×4 |
|---|---|
| Part number | TJ-6124 |
| UPC | 859909001959 |
| Material | Steel |
| Tubing | 2-inch diameter, .120 wall |
| Finish | Textured black |
| Light capacity | Front bar 4 lights, rear bar 2 lights |
| Drilling | Not required, per the spec listing |
| Roof rack type | Roof rack |
Vehicle fitment
It fits the 2004–2006 Jeep Wrangler (LJ) in Unlimited and Unlimited Rubicon trims.
It does not fit TJ years or 2007–2018 JK models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a bolt-on installation at the windshield hinges and the rear frame, so the soft top or hardtop can be removed while the base stays mounted. Wire any auxiliary lights with fused wiring and follow local road-use rules for lighting.
What’s included
The base rack comes with its front and rear light bars.
Not included: The lights for the front and rear bars, and the Cargo basket PN 5124.
