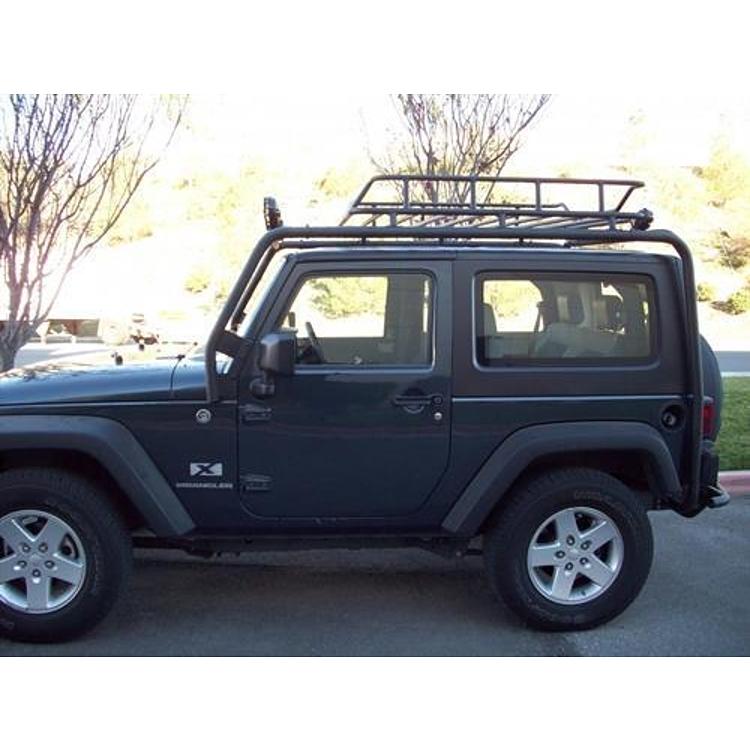

Body Armor Roof Rack Base – JK-6125-2

Body Armor 4x4

Shop Body Armor 4X4 Roof Racks on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Steel roof rack base for 2-door Jeep models, Body Armor part JK-6125-2
  • Side and cross tubes included
  • Front crossbar with four welded light tabs and rear bar with two tabs
  • Rear uprights mount to the frame rails without drilling

Description

Overview

The Body Armor JK-6125-2 is a steel roof rack base for 2-door Jeep models, supplied with side tubes and a cross tube. It pairs with part JK-6124-1, which carries the uprights and hardware.

The front crossbar has four welded light tabs for auxiliary lights, and the rear bar has two tabs for rear facing lights. Access holes under the tabs and internal holes in the elbow joints let wires run inside the tubes. The finish is a dual process textured black powder coat.

The front uprights attach to the A pillars with the four existing bolts on each side. The rear uprights can mount on the frame rails for a no-drill installation. Mounting near the taillights on the body requires four drilled holes, and frame mounting requires modifying the factory rear bumper.

The 5125 adapters allow Yakima towers and crossbars for bikes, kayaks or a roof top tent.

Key features

  • Side and cross tubes included
  • Front crossbar with four welded light tabs
  • Rear bar with two light tabs
  • Internal wire routing through the elbow joints
  • Rear uprights mount without drilling
  • Dual process textured black powder coat

Two-door roof rack planning

A two-door roof rack base has a shorter wheelbase and a different body profile, so the load and the mounting points feel different than on a four-door. Plan the crossbar position around the rear door and the spare tire area if the vehicle has one, so the load stays clear of the swing and the opening. Measure before drilling anything.

The front uprights bolt to the A pillars, which carry the windshield frame, so keep the bolts snug and check them periodically. Frame mounting changes the rear bumper and is hard to reverse, so decide on it early. For the lights and wiring, route the cable through the tube passages and secure it with clips.

  • Measure before drilling
  • Check A-pillar bolts periodically
  • Secure wiring with clips

Specifications

Brand Body Armor 4×4
Part number JK-6125-2
UPC 859909002901
Material Steel tube
Finish Dual process textured black powder coat
Light tabs Front crossbar four welded, rear bar two
Drilling Not required, per the spec listing
Companion part JK-6124-1
Models 2-door

Vehicle fitment

It is designed for 2-door models only. Match your year, model and trim to the covered vehicles before buying.

The JK-6124-2 listing names both 2 and 4-door models, while this part names 2-door models only. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The front uprights use the four existing bolts on each side at the A pillars. Frame mounting requires modifying the factory rear bumper, and the body-mount option requires drilling four holes near the taillights. Drilling and bumper changes are permanent, so check every hole position before starting.

What’s included

Side and cross tubes are included.

Not included: The uprights and hardware listed with JK-6124-1, auxiliary lights, and accessories.

SKU: B/AJK-6125-2 Category:

Specification

Shipping weight 38.00 lbs
Package dimensions 65.00 × 7.00 × 7.00 in
brands

Questions & Answers

Is the Body Armor JK-6125-2 for 4-door Jeeps?

No. It is designed for 2-door models. The JK-6124-2 base fits both 2 and 4-door models, so match your body style to the correct part number.

Does the JK-6125-2 need drilling?

No drilling is needed when the rear uprights mount to the frame rails. The body-mount option near the taillights requires four drilled holes, which is a permanent change.

What does the JK-6125-2 come with?

It includes side tubes and a cross tube. The uprights and hardware come with companion part JK-6124-1, and auxiliary lights are not included.

Should the crossbars be moved when a roof load changes?

Yes, reposition the crossbars when the load shifts so weight stays balanced and clear of the doors. Recheck the uprights and clamps after moving anything. Heavier gear placed near one end can change how the vehicle handles on rough roads.
