Overview

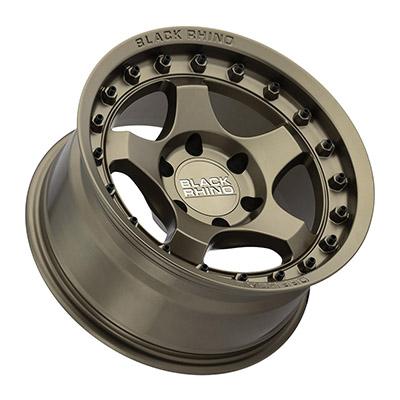

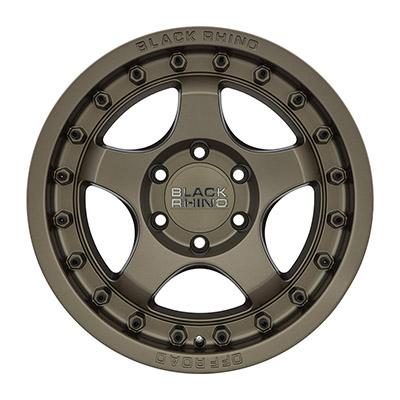

The Black Rhino Bantam 16×8 spoke wheel, part number TSW1680BTM-05127Z71, has a 5 on 5 bolt pattern, -10 offset and bronze finish. It is an aluminum wheel from the Bantam series, a five-spoke style that Black Rhino Wheels describes as sharp and concave.
The wheel has a 72 center bore and 0 backspacing. The Bantam comes in three finishes, and its widths and offsets are designed for Toyota truck and SUV fitments, including 5 on 150 and 6 on 5.5 patterns. It works with the OEM Toyota Racing Development center cap.
Key features
- Five-spoke concave design
- Bronze finish, one of three Bantam finishes the brand offers
- 5 on 5 bolt pattern with -10 offset
- Compatible with the OEM Toyota Racing Development center cap.
- Aluminum construction
Choosing wheel fitment and offset
Wheel offset and backspacing decide where the wheel sits relative to the hub and fenders. A -10 offset pushes the mounting face outward compared with a zero offset wheel, which can bring the tire closer to suspension parts and the outer fender lip. Tire width, sidewall height and suspension lift all change clearance, so check the full setup rather than the wheel alone.
Bolt pattern, center bore and seat type are the three specifications that must match the vehicle before the wheel is mounted. Hub-centric wheels rely on the center bore to carry load, and a centering ring can be used when the bore is larger than the hub. Lug nuts must match the seat type of the wheel, and a mismatch can loosen the wheel over time. Recheck lug torque after the first drive and again after the first few trail runs.
- Confirm tire clearance at full steering lock
- Check brake caliper and inner fender clearance
- Use a torque wrench and recheck after the first drive
Specifications
| Brand | Black Rhino Wheels |
|---|---|
| Part number | TSW1680BTM-05127Z71 |
| Series | Bantam |
| Style | Spoke |
| Diameter | 16 inches |
| Width | 8 inches |
| Offset | -10 |
| Backspacing | 0 |
| Center bore | 72 |
| Bolt pattern | 5 on 5 |
| Finish | Bronze |
| Construction | Aluminum |
Vehicle fitment
The Bantam is designed for 5 on 5 Jeep truck and SUV fitments. It is also designed for 5 on 150 and 6 on 5.5 Toyota trucks and SUVs, with widths and offsets suited to those hubs. Match your hub’s bolt pattern and your vehicle’s year before ordering this bronze 5 on 5 wheel.
The Jeep and Toyota fitments are described by the brand, not by year, model and trim. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check tire clearance against the 0 backspacing and -10 offset, especially with larger tires. Choose lug nuts that suit the wheel’s seat type, and test steering lock once the wheel is mounted.
What’s included
The Toyota Racing Development center cap is compatible with the wheel but is not part of this package. Tires and lug nuts are also not included.
Not included: tires, and the Toyota Racing Development center cap.
