Overview

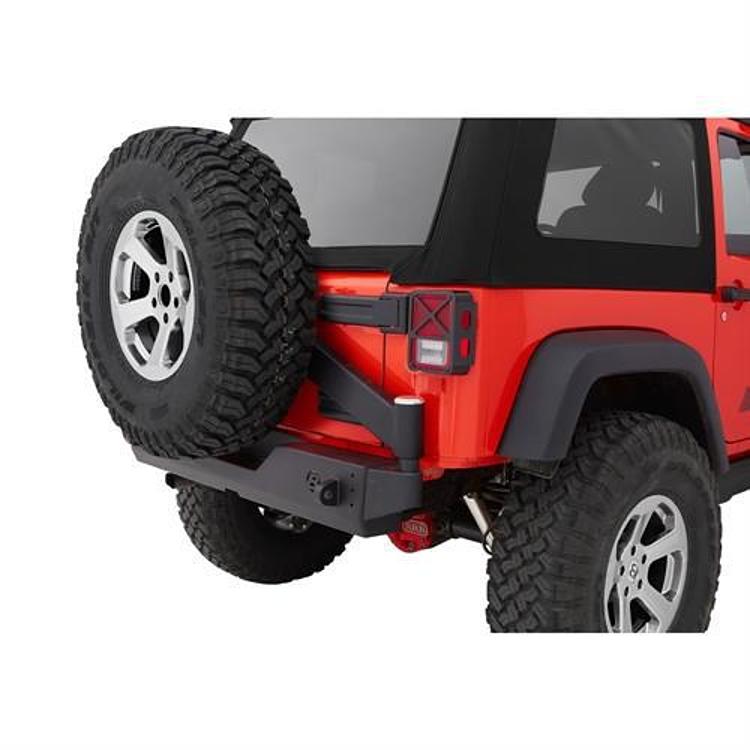

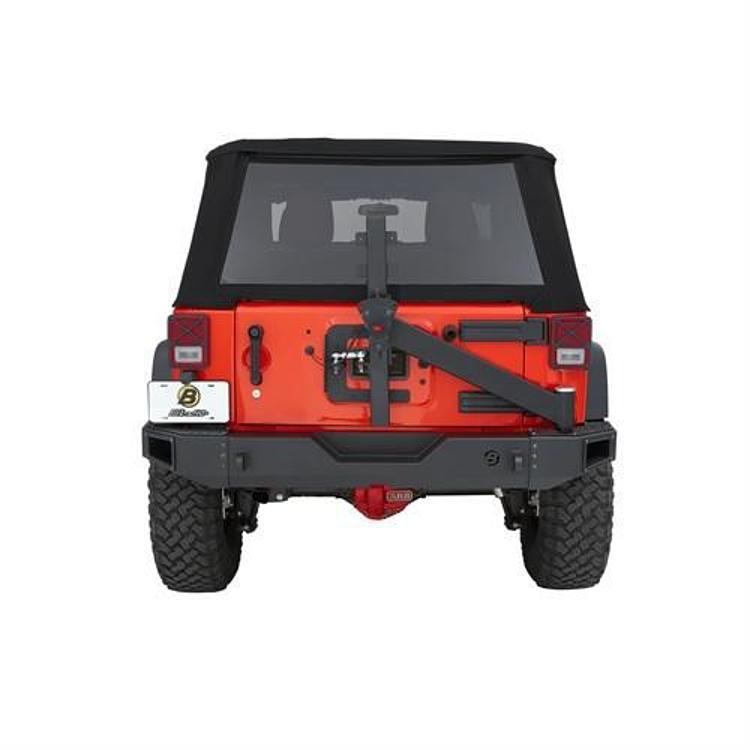

The Bestop Highrock 4×4 Modular Rear Tire Carrier Assembly, part number 44943-01, is a black powder coated swing-out tire carrier for the 2007–2018 Jeep Wrangler JK.
The carrier accommodates a tire up to 37″ and 200 lbs. An articulating Heim joint lets it swing out with the tailgate using one hand, which takes the tire weight off the tailgate and reduces wear on the tailgate hinges, and a Mega-Spindle pivot point provides support. It bolts onto the existing factory bumper mounting locations without drilling and mounts to the center section of the Highrock modular rear bumper.
Key features
- Accommodates up to a 37″ tire, up to 200 lbs

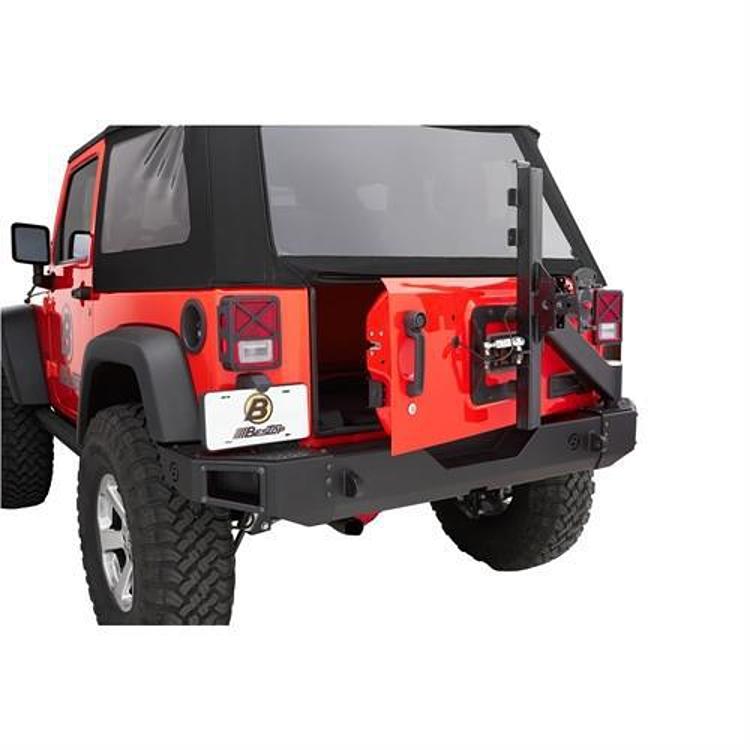

- Heim joint lets the carrier swing out with the tailgate with one hand
- Mega-Spindle pivot point
- 1/8″ and 3/16″ thick steel
- E-coat base layer with matte-black powder coat top finish
- Bolt-on installation at existing factory bumper mounting locations, no drilling
- Includes a 3rd brake light module that mounts to the center of the wheel
Tailgate and tire loads
A swing-out carrier moves the weight of the spare tire away from the tailgate hinges, but the carrier itself adds load to the rear bumper and its mounts. Heavier off-road tires put more force through the pivot each time the tailgate opens. Keeping the pivot clean and lightly greased helps it move freely and reduces wear on the joint.
Look at the carrier and its bolts after rough trails and before long highway trips. Check for play at the pivot, bent arms, and cracks at welds. The third brake light module and its wiring should be checked for damage at the same time, since the wiring runs along the carrier.
- Check pivot for play
- Inspect welds and arms for cracks
- Confirm the third brake light works
Specifications
| Brand | Bestop |
|---|---|
| Part number | 44943-01 |
| UPC | 77848131753 |
| Product type | Modular rear tire carrier assembly |
| Tire capacity | Up to 37″ tire, up to 200 lbs |
| Material | Steel, 1/8″ and 3/16″ thick |
| Finish | Electrostatically-applied E-coat base with matte-black powder coat |
| Pivot | Articulating Heim joint, Mega-Spindle |
| Installation | Bolt on, no drilling |
| Mounts to | Rear Bumper Center Section |
Vehicle fitment
The tire carrier assembly 44943-01 is made for the 2007–2018 Jeep Wrangler JK. It mounts to the rear bumper center section and can be combined with the optional rear end caps and departure roller accessories.
It mounts to the rear bumper center section on the JK. Verify your vehicle’s year, model and trim match before ordering.
Installation notes
The carrier bolts to the existing factory bumper mounting locations and needs no drilling.
What’s included
- Modular rear tire carrier assembly
- Third brake light module
Not included: the optional accessories such as end caps and the departure roller.
