Baja Designs Squadron Sport/SAE Fog Light Kits (White) – 447530

Baja Designs

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Baja Designs Squadron Sport SAE fog light kit, white, part number 447530
  • Two Squadron lights per side, 3150 lumens
  • 26 watts, 2 amps, IP69K
  • Built for the 2014-2015 Chevrolet Silverado 1500

Description

Overview

The Baja Designs Squadron Sport/SAE Fog Light Kit (White), part number 447530, is a fog pocket kit for the 2014-2015 Chevrolet Silverado 1500. It places two Squadron lights on each side in the factory fog pocket.

The outside lights are SAE compliant and run from the factory fog switch. A pair of driving or combo lights sits inside on a secondary harness. Each light is rated at 26 watts and 3150 lumens. The kit combines SAE compliant fog lights outside with driving or combo lights inside, for both on-road and off-road use.

Key features

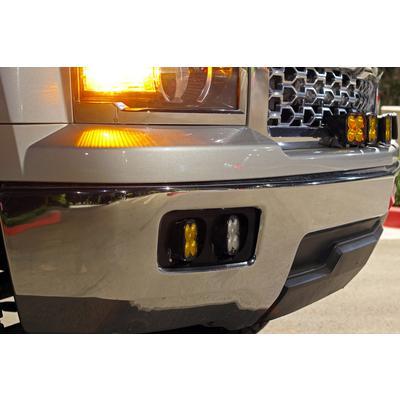

  • Two Squadron lights per side in the fog pocket
  • SAE compliant outer lights controlled by the factory fog switch
  • Inner driving or combo lights on a secondary harness
  • 26 watts, 2 amps, 3150 lumens
  • IP69K waterproof and IK10 impact compliant
  • Billet machined aluminum bezel

Inner and outer light roles

A fog pocket kit with outer and inner lights splits the work between two circuits. The outer SAE lights sit in the fog pocket and give a low, close pattern for fog and rain. The inner driving or combo pair reaches farther down the road, which helps at speed on open roads and on dusty tracks where sight distance matters.

Because the two circuits are wired separately, a fault in one may not affect the other. When a light stays dark, check the factory fog switch circuit first, then the secondary harness and its fuse. Keep the connectors dry and coated with dielectric grease so moisture does not cause intermittent faults.

Stainless hardware and billet aluminum bezels resist corrosion and keep the lights looking clean in wet, salty conditions. Rinse mud off after trail use, and check the aim of each pair every season or after any bumper work. A pair that drifts out of aim wastes output and can dazzle other drivers.

Choose the driving or combo pair with the rest of the setup in mind, especially if the truck already carries a light bar. Overlapping beams are not a problem, but mixed color or pattern can look uneven. Plan the switching so the inner pair is used for distance and the outer pair for fog and close work.

Specifications

Brand Baja Designs
Part number 447530
Watts 26
Amps 2
Lumens 3150
LED life 49930 hours
Front lens Hard coated polycarbonate
Bezel Billet machined aluminum
Housing Hard anodized and powder coated cast aluminum
Hardware and bracket Stainless steel
Waterproof IP69K, submersible to 9 feet
Color White

Vehicle fitment

The kit is for the 2014-2015 Chevrolet Silverado 1500 in High Country, LS, LT, LTZ, SSV and WT trims.

For other Silverado years, or the Silverado 2500 and 3500, check fitment against your vehicle before ordering.

Installation notes

The fog pocket is used for the outside lights, so the factory fog switch controls them. The inside driving or combo pair runs on its own harness, so both circuits need to be wired. The brackets are stainless steel and the bezel is billet machined aluminum, so the hardware matches the rest of the kit. Check the wiring split between the factory fog switch and the secondary harness before final mounting. Check the aim of each pair after mounting.

What’s included

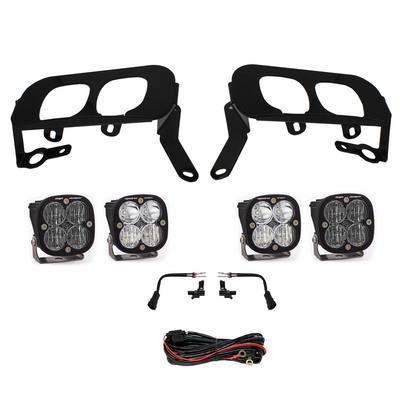

Four Squadron lights for the fog pockets and the driving or combo pair, plus the secondary harness.

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002014–2015High Country, LS, LT, LTZ, SSV, WT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What does the Baja Designs 447530 kit use for control?

The outer SAE lights run from the factory fog switch, and the inner driving or combo lights run on a secondary harness. Both circuits need wiring during installation.

How bright are the 447530 lights?

The lights are rated at 3150 lumens, 26 watts and 2 amps each. Compare these figures with other fog lights when judging output.

Does the 447530 kit fit a 2016 Silverado?

Fitment for a 2016 Silverado needs checking, since this kit is made for the 2014-2015 Silverado 1500. Confirm the year, model and trim against your truck before ordering.

Can the inner and outer lights be run separately?

Yes, the outer SAE lights and the inner driving or combo pair run on separate circuits, so each set can be switched on its own. Check the wiring split before final mounting so the fog switch and the secondary harness both work as intended.
