Overview
The Baja Designs Sportsmen Fog Light Pocket Kit with Toggle Switch Harness, part number 447760, is a complete fog light kit for the 2021-2026 Ford Bronco. It uses a set of S2 Sport lights in driving/combo, a set of S2 Sport lights in wide cornering, and a set of Squadron Sport lights in spot.
The brackets mount with no cutting or drilling, and a toggle switch in the cab operates the included wiring. The kit is complete as supplied, with brackets and harness for every light group.
Key features
- S2 Sport lights in driving/combo and wide cornering patterns
- Squadron Sport lights in spot pattern
- Toggle switch harness for control from the cab
- No cutting or drilling for the brackets
- Designed for Bronco owners who want trail lighting in one kit
- Hard coated polycarbonate front lens
- IP69K waterproof, IK10 impact compliant, MIL-STD810G tested
Trail lighting with a cab switch
A mixed light set gives a Bronco owner three different patterns: a combo for general trail use, a wide cornering spread for corners and side visibility, and a tighter spot for distance. Each pattern does a different job, so the lights are most useful when they are switched on as needed rather than all at once.
A cab toggle switch keeps control simple, but the harness still needs a clean route. Run the wires away from exhaust heat, sharp body edges and moving suspension, and secure them with clips so they do not rub. Check connectors for moisture after deep water crossings, since a damp connector is a common cause of intermittent lights.
Trail use is hard on lights, so inspect the lens, bezel and bracket bolts after each trip. Clean mud from the lenses before storing the vehicle, and keep the spot and driving aims set so the beam lands where it is needed. Stainless hardware handles wet conditions well, but a light coat of anti-seize on fasteners can help them come apart later.
Specifications
| Brand | Baja Designs |
|---|---|
| Part number | 447760 |
| Light set | S2 Sport driving/combo, S2 Sport wide cornering, Squadron Sport spot |
| Control | Toggle switch in the cab |
| Bezel | Billet machined aluminum |
| Hardware and bracket | Stainless steel |
| Housing | Hard anodized and powder coated cast aluminum |
| Waterproof | IP69K |
| Impact | IK10 compliant |
| LED life | 49930 hours |
Vehicle fitment
The kit is for the 2021-2026 Ford Bronco in Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks and Wildtrak trims. The S2 Sport and Squadron Sport lights come from the same Baja Designs kit, so the trim list applies to the whole set.
It is not for the Bronco Sport, which uses kit 447683. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Aim each light group after mounting. The driving and wide cornering lights and the spot lights each have their own aim, so set the driving pattern first, then the spot, and check that the toggle switch works each group.

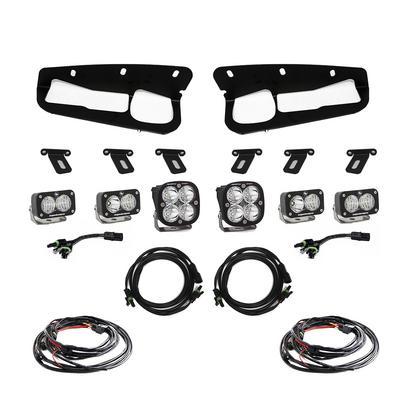

What’s included
S2 Sport driving/combo and wide cornering lights, Squadron Sport spot lights, Bronco specific brackets and the toggle switch harness.
