Overview

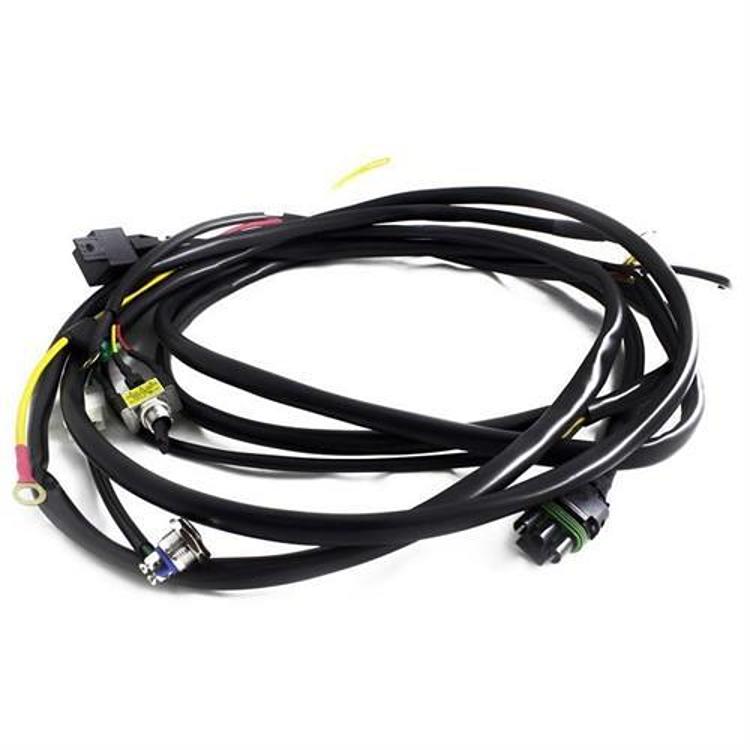

The Baja Designs S8/IR wire harness, part number BAJ640122, is a complete wiring harness for Baja Designs S8 LED light bars. It is offered with a Mode-2 bar and rated for a maximum of 325 watts. The harness runs the light bar and its dust and strobe modes, and it is suited to race use. It is universal fit, so it is not tied to a model or model year.
Key features
- Complete harness made for Baja Designs S8 LED light bars
- Supports the dust and strobe modes of the light bar
- Maximum rating of 325 watts
- The harness is built to make installation simpler, with the wiring prepared for the light bar.
- Designed for race use
Matching the harness to your bar
Matching the harness to the light bar matters more than matching it to the vehicle. Confirm the bar is an S8 model, then check that the connector style and wiring colors line up before you cut or extend anything. A mismatched plug is a common cause of a harness that will not work on the first try.
Race use means the harness will see vibration, dust and water. Route cable through grommets, use drip loops at connectors, and keep splices sealed. Mount the switch where it can be reached without leaning across the cab, and keep the wiring away from suspension arms and driveline parts that flex through travel.
- Check connector style before cutting wire
- Use drip loops at every connector
- Keep splices sealed against moisture
Specifications
| Brand | Baja Designs |
|---|---|
| Part number | BAJ640122 |
| UPC | 853774007511 |
| Compatible light bars | Baja Designs S8 LED light bars |
| Maximum rating | 325 watts |
| Category | Offroad Light Wiring and Switches |
Vehicle fitment
Fitment is universal, so this harness is not vehicle-specific. It connects to Baja Designs S8 light bars, so check that your light bars are S8 models before installing the harness.
Installation notes
Route the harness away from moving suspension parts and high heat. Because it carries power to the light bars, use a fused connection and check local rules before running lights on a road-going vehicle.
What’s included
It is a complete harness, offered with a Mode-2 bar.
Not included: S8 LED light bars.
