Pilot Illuminated Sasquatch Lights Rocker Switch – PL-SW67B

Pilot

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Illuminated 5-pin rocker switch
  • Laser-etched, accessory-specific design
  • Lights up as soon as the unit receives power
  • Controls 12-volt or 24-volt accessories

Description

Overview

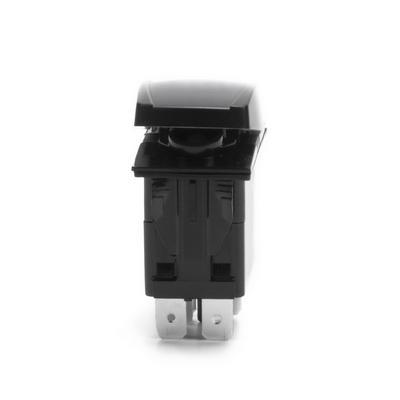

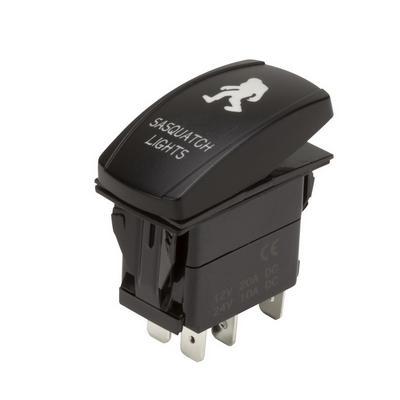

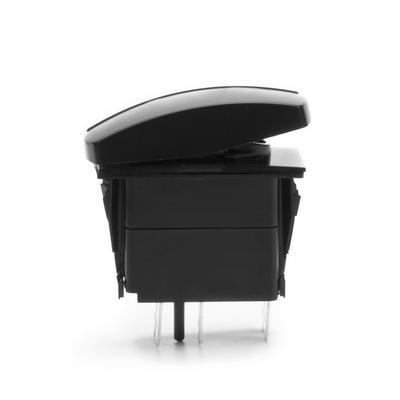

The Pilot Illuminated Sasquatch Lights Rocker Switch, part number PL-SW67B, is a 5-pin illuminated switch for controlling lights and other accessories. It has a laser-etched, accessory-specific design and lights up as soon as it receives power.

The switch fits most vehicle dash panels and controls 12-volt or 24-volt accessories. Because it is a dash-mounted control, its position on the panel is part of the installation plan.

Key features

  • Illuminated rocker face
  • Laser-etched, accessory-specific design

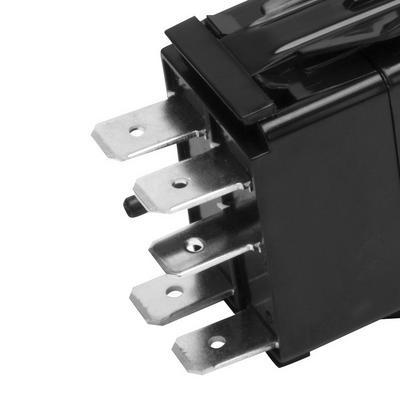

  • 5-pin layout
  • Lights when the switch receives power
  • Controls 12-volt or 24-volt accessories

Dash layout and wiring

Dash switches are easiest to use when they sit where the driver can reach them without looking away from the road. Plan the switch location before cutting, and leave room behind the panel for the connector and the wires. Check that the panel is free of airbag and steering components before drilling or cutting.

Accessory voltage must match the switch rating and the circuit. Fuse the accessory circuit at the power source, and use wire that suits the load. An illuminated face helps at night, and it lights as soon as power is applied, so it can show when a circuit is live. Clean the face with a soft cloth when dust builds up.

  • Plan the switch position before cutting
  • Check clearance behind the panel
  • Confirm accessory voltage before wiring

Specifications

Brand Pilot
Part number PL-SW67B
Product type Illuminated rocker switch
Pins 5
Voltage 12 V or 24 V accessories
Illumination Lights when powered

Vehicle fitment

It is a universal fit, so it is not built for one vehicle. It is designed for most vehicle dash panels, and the owner chooses the panel and location. Confirm the dash opening suits your panel before cutting.

Installation notes

Cut the dash opening to the switch size, then wire the five pins to the accessory and power circuit. Fuse the accessory circuit and check that the accessory voltage matches the switch rating.

What’s included

The item is one illuminated rocker switch. Check the package contents against your wiring plan before starting, since wiring and the accessory are not part of this package.

Questions & Answers

Does the Pilot PL-SW67B work with 24-volt accessories?

Yes. The switch is rated for either 12-volt or 24-volt accessories, so it suits either system when wired to a matching circuit and the accessory voltage fits the switch.

How many pins does the Pilot rocker switch have?

It has five pins, which connect the switch to the accessory and power circuits, and it is designed to integrate into most vehicle dash panels.

Does the switch light up?

Yes. The switch lights up as soon as it receives power, and its laser-etched face is designed for the accessory it controls.

Does the switch need a separate ground?

Wiring should follow the switch's pin layout for the accessory circuit. Confirm the ground and power pins against the accessory's wiring before connecting anything, and keep the connections dry and tight.
