Overview

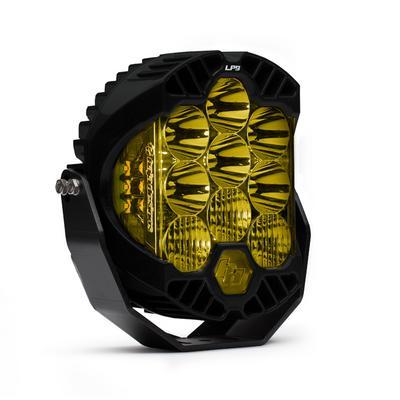

The Baja Designs LP9 Sport LED Driving/Combo Light (part 350013, amber) is a driving light for enthusiasts who want the LP9 look and features with a little less output. It uses the same core technology as the LP9 series, including Direct Ducted Cooling and Integrated Peripheral Technology, and it produces a 200 degree spread of usable light.
The LP9 Sport uses 9 forward projecting LEDs to produce 6,500 lumens at 61 watts, and 6 LEDs for Integrated Peripheral Technology that produce 2,550 lumens at 24 watts. The housing moves air from the front of the light to the rear. The uService design lets the owner change the lens pattern and color for changing conditions or to refresh the lens. The forward LEDs provide the reach and the six peripheral LEDs fill the sides, so the light covers both the trail ahead and the area around the vehicle. The lens can be swapped for a different pattern or color as conditions change. Direct Ducted Cooling is designed to keep the light cool under stress. The light is sold as a single unit in a black finish with an amber lens.
Key features
- Driving combo beam pattern
- 9 forward projecting LEDs at 6,500 lumens
- 6 peripheral LEDs at 2,550 lumens
- Direct Ducted Cooling carries heat away under stress
- 200 degree spread of usable light
- uService technology for changing lens pattern and color
- Amber lens
Choosing a driving combo setup
A driving combo light works best when the forward beam and the peripheral beam are both aimed with the vehicle at its normal load and on level ground. Mount the light where the lens sits clear of mud and debris thrown by the tires, and keep the bracket solid so it does not drift on rough trails. Because the light draws a meaningful load, run it through a relay and a fused feed rather than directly from a switch, which keeps the wiring cooler and easier to troubleshoot.
Pairing the light with a clean wiring harness and a switch you can reach from the driver seat makes it easier to use the lens pattern you need. Other parts that often get replaced alongside driving lights include mounting brackets, wiring connectors and the grommets where wires pass through the body. Inspect those after the first few trail runs for chafing or loose hardware.
- Keep the lens clean for even output
- Recheck bracket bolts after rough trails
- Use a relay and fused feed for the load
Specifications
| Brand | Baja Designs |
|---|---|
| Part number | 350013 |
| Series | LP9 Sport |
| Lens color | Amber |
| Beam pattern | Combo |
| Forward output | 6,500 lumens at 61 watts, 9 LEDs |
| Peripheral output | 2,550 lumens at 24 watts, 6 LEDs |
| Finish | Black |
| Mounting | Bracket |
| Sold as | Single |
Vehicle fitment
The LP9 Sport is a universal driving light and is not built for one vehicle. It mounts on its bracket, so choose a location that suits the vehicle. Check clearance before drilling.
Installation notes
The light mounts on a bracket. Fuse the power feed, and check local rules before using driving lights on public roads.
What’s included
One LP9 Sport light with its bracket.
