Artec Industries Boatside Body Mounts – TJ2014

Artec Industries

Shop Jeep Wrangler TJ Body Mount Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

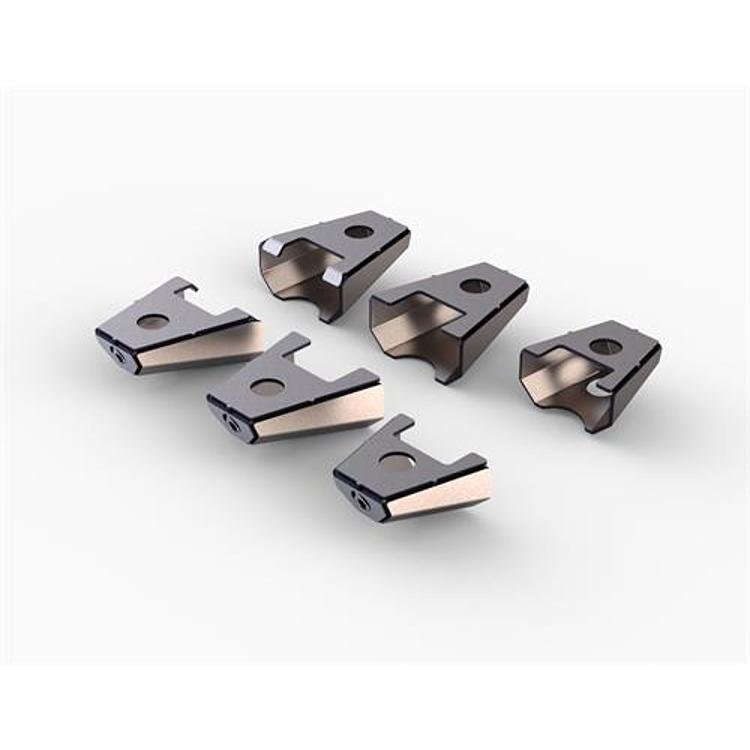

  • Artec Industries boatside body mounts, part number TJ2014
  • Steel mounts laser cut and bent from 3/16″ thick steel
  • Boxed, angled underside for better break-over angles
  • Fits 1997 to 2006 Wrangler TJ and 2004 to 2006 Wrangler LJ
  • Black, used with normal OEM height bushings

Description

Overview

The Artec Industries TJ2014 is a set of boatside body mounts for Jeep Wrangler TJ and LJ owners. The steel mounts replace the factory body mounts with a fully boxed underside. The listed vehicles are 1997 to 2006 Wrangler TJ and 2004 to 2006 Wrangler LJ models. Artec designed them to replace mounts that catch on obstacles or rot off the frame.

The underside is boxed in and angled so it works as a skid plate, which reduces the chance of the vehicle hanging up on the mount. Artec says these mounts go places factory mounts never could. The kit is used with normal OEM height bushings.

Key features

  • Boatside design with a fully boxed underside that acts as a skid plate
  • Angled sides for better break-over angles
  • Tabs locate the laser cut pieces correctly during assembly
  • CNC laser cut and CNC bent from 3/16″ thick steel
  • OEM height, used with normal bushings
  • Made in the USA.

Things to check

Body mounts carry the weight of the body and take a lot of stress on the trail. When a factory mount rots or tears away from the frame, the body can shift and the tub can start to flex. Replacing the mounts restores the body’s position, which helps keep door gaps and the cowl more even. Boatside designs spread the load differently, so the frame mounting area should be cleaned and inspected before the new parts go in.

Because the mounts sit low, they are exposed to rocks, stumps and ledges. A boxed underside protects the mounting point, though the lowest edge can still catch on rocks and ledges. Check the mounts after hard trail runs for dents, cracks at the welds and loose hardware. Rust on the frame behind the mount is worth checking before reinstalling, since steel mounts are only as good as the surface they bolt to.

  • Clean the frame surface before fitting
  • Inspect welds and seams after hard trail use
  • Re-check hardware after the first few drives
  • Look for rust around the bushing holes

Specifications

Brand Artec Industries
Part number TJ2014
UPC 816791027177
Material Steel
Thickness 3/16″
Color Black
Mount height OEM height
Construction CNC laser cut and CNC bent
Fitment type Direct Fit

Vehicle fitment

The fitment covers the 1997 to 2006 Jeep Wrangler TJ (65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X) and the 2004 to 2006 Jeep Wrangler LJ (Unlimited and Unlimited Rubicon).

Other Wrangler generations, such as YJ and JK, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The bushings insert from the back side above the frame, so the boatside underside only needs a smaller hole. Use normal OEM height bushings with this kit.

What’s included

Steel boatside body mounts.

Not included: OEM height body bushings, which are used with this kit

SKU: A/ITJ2014 Category:

Specification

Shipping weight 25.00 lbs
Package dimensions 12.00 × 9.00 × 6.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Do these fit my Jeep TJ or LJ?

It fits 1997 to 2006 Wrangler TJ and 2004 to 2006 Wrangler LJ models, including the trims covered. Confirm your year, model and trim before choosing these mounts, since Wrangler YJ and JK are not covered.

Do I need special bushings?

Normal OEM height bushings are used with this kit. Bushings are not part of the included items, so check your package contents before installation.

What are the mounts made of?

They are steel, CNC laser cut and CNC bent from 3/16 inch thick steel. The mounts are black and made in the USA.

Why is the underside boxed?

The underside is completely boxed in and angled to act as a skid plate. That design lowers the chance of the vehicle hanging up on the mount when driving over obstacles, and the angled sides help improve break-over angles.

How do I tell if body mounts need replacing?

Look for cracked or collapsed bushings, a body that sits unevenly, or gaps around the doors and cowl that have changed. Visible rust or separation at the frame mounting point is a strong sign the mount needs attention. Inspect both sides, since wear is often uneven.

Should all the body mounts be replaced at once?

It is common to replace them together so the body sits evenly on the frame. Mixing new and worn mounts can leave the body out of alignment. Check each position before installing the kit and replace any that show damage.
