Overview

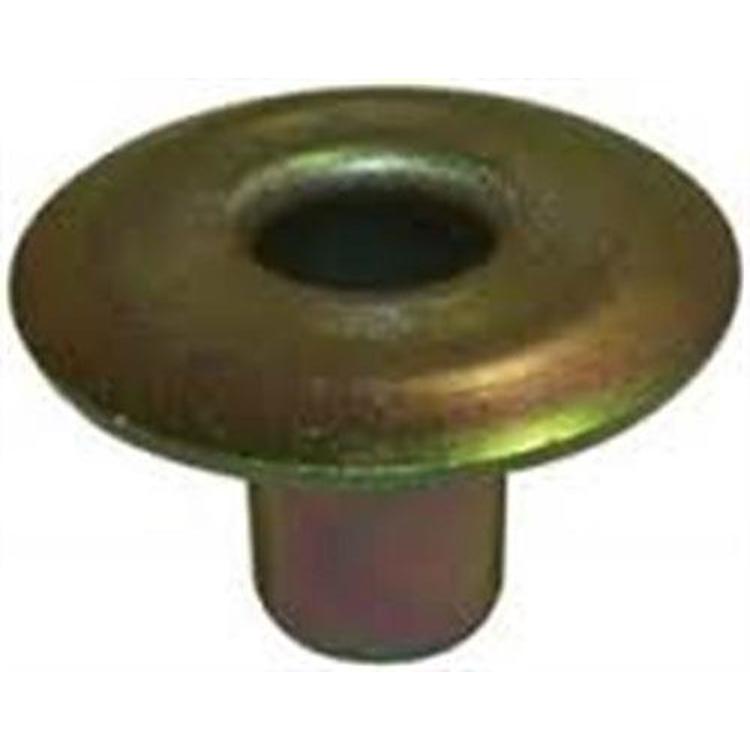

The Crown Automotive 52002661 is a rear body mount retainer for Jeep Wrangler YJ (1987–1995) and TJ (1997–2006) models. It is a tube with a washer built onto it, which holds the bushing in its bracket.
Four retainers are needed. It fits the YJ and TJ Wrangler generations.
Key features
- Tube-style retainer with a washer built on
- Rear body mount position
- Four needed for the rear position
- Part number 52002661, UPC 848399012934
Retainer and washer inspection
A body mount retainer holds the bushing in its bracket, so its condition affects how well the bushing stays put. A tube-style retainer with a built-on washer can flatten, crack at the seam, or rust where it meets the bracket. Look at the retainer and the bracket face together, since a worn bracket can hide retainer damage until the bushing starts to move.
When you replace a retainer, clean the bracket and remove any rust so the new piece sits square. Confirm the washer is seated flat against the bracket before tightening, since an angled washer can cause the bushing to bind. Re-torque the fasteners after the first few trips and check again at regular service.
- Look for cracks at the tube seam
- Check the washer for flattening
- Clean rust from the bracket face
- Confirm the bushing sits centered
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 52002661 |
| UPC | 848399012934 |
| Type | Body mount retainer |
| Design | Tube with built-on washer |
| Position | Rear body mount |
| Quantity required | 4 |
Vehicle fitment
It fits the 1987–1995 Jeep Wrangler (YJ) and the 1997–2006 Jeep Wrangler (TJ) across the trims covered. Verify year, model and trim against this part before buying.
Other Wrangler generations, including the LJ Unlimited and JK, are not on the list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Check the contents against your installation before starting, including any bushings and bolts you need.
