Overview

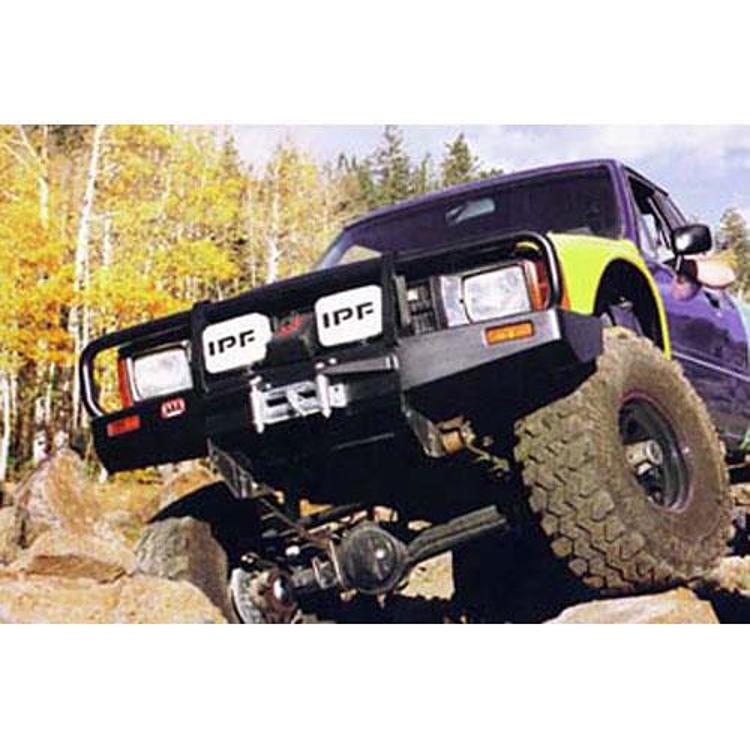

The ARB Toyota Pickup Bull Bar Winch Mount Front Bumper, part number 3414070, is a black powder coated steel Deluxe Bull Bar with a winch mount for the Toyota Pickup. Fitting it to the first generation 4Runner requires some cutting and modification.
This bar is built from 250 heavy grade wall tubing and cold roll sheet steel, and it has recessed indicators and tow points. Its mounting system fully replaces the factory bumper. Check the model years against your truck before buying.
Key features
- Winch mount included
- 250 heavy grade wall tubing
- Cold roll sheet steel construction
- Recessed indicators
- Tow points
- Black powder coat finish
Preparing the truck for install
Some trucks need preparation before a bull bar goes on. Inspect the existing front bumper brackets, the frame rails and the radiator support for rust or damage, since the new bar will carry the loads those parts handle. Where cutting is needed, mark the cut lines carefully, deburr the edges and seal bare steel with primer before paint.
A winch-capable bar also changes how the front end handles a recovery. Use a winch line of the right size, keep the fairlead aligned, and avoid pulling at an angle that stresses one side of the mount. Route the lights and winch wiring through protected channels, and check that the hood and grille still open and close freely once the bar is in place.
- Check frame rails for rust before mounting
- Deburr and prime any cut edges
- Leave slack in wiring near the bar’s pivot points
- Recheck fasteners after the first off-road outing
Specifications
| Brand | ARB 4×4 Accessories |
|---|---|
| Part number | 3414070 |
| UPC | 837290000744 |
| Product type | Deluxe bull bar, winch mount front bumper |
| Position | Front |
| Width | Full |
| Material | Steel, 250 heavy grade wall tubing and cold roll sheet steel |
| Finish | Powder coat, black |
| Winch mount | Included |
| D-ring mount | Included |
| Light mounts | Included |
| Fitment type | Direct fit |
Vehicle fitment
It is intended for the Toyota Pickup. Confirm the model years that match your truck before ordering.
The first generation 4Runner needs some cutting and modification. Other Toyota models are not covered, so match your vehicle’s year, model and trim to this bar before ordering.
Installation notes
For the first generation 4Runner, ARB says some cutting and modification is required.
What’s included
- Winch mount bull bar
- Light mounts
- D-ring mount
Not included: The winch and the lights.
