Overview

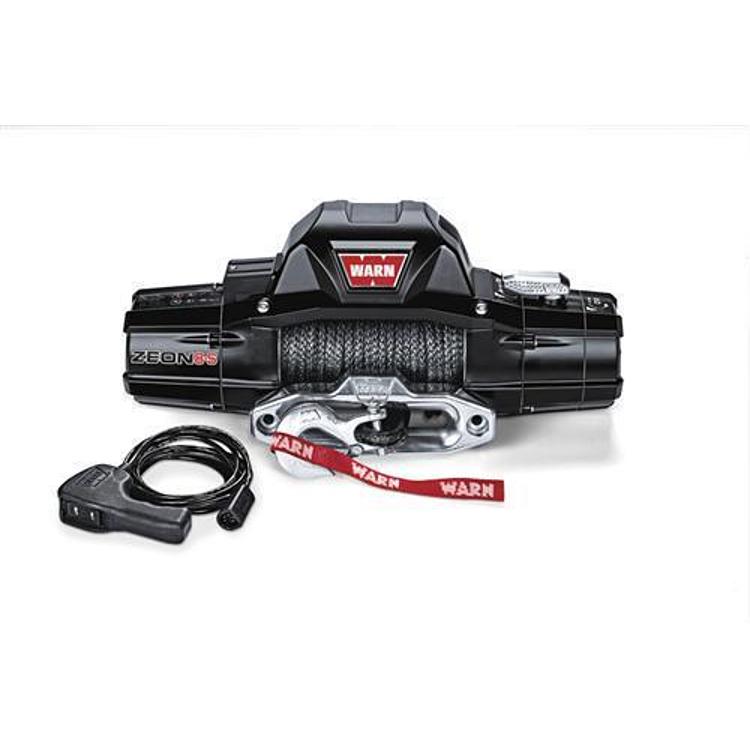

The Warn ZEON 8-S is an 8000 lb electric winch packaged with 100 ft of Spydura synthetic rope, catalogued as model 89305 with UPC 12748893059. It belongs to Warn’s ZEON line, which the brand describes as its next generation of winches with upgraded internal components and a modern rugged design.

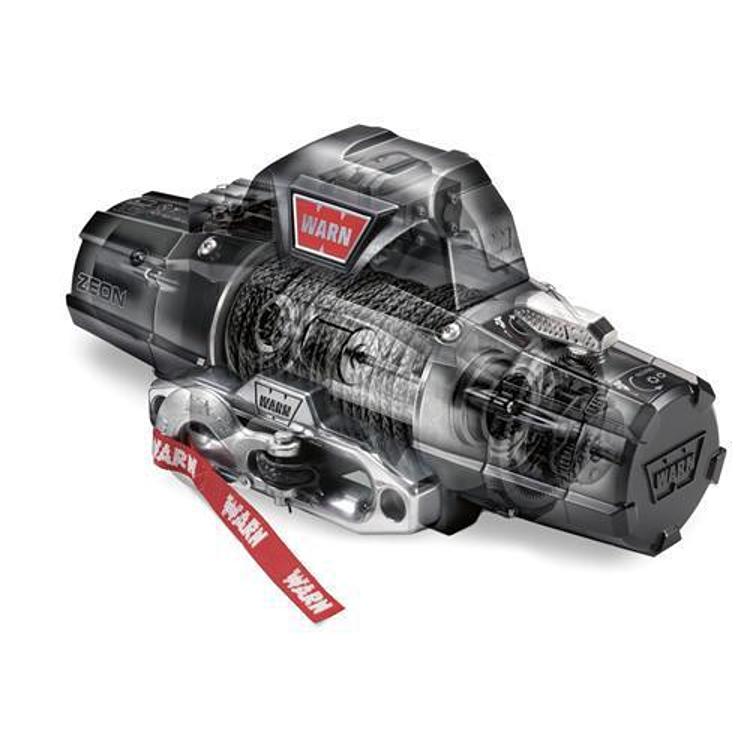

Synthetic rope is the main difference from the wire rope versions, and the ZEON 8-S pairs it with a hawse fairlead instead of a roller. The 162:1 planetary geartrain and series-wound 12V motor deliver fast, quiet and reliable pulling power. The aluminum drum is large in diameter, which reduces rope wear, and the control pack can be attached to the winch or mounted remotely with a relocation kit.
Key features
- 8000 lb rated line pull on a 12V motor
- 100 ft of 3/8 Spydura synthetic rope
- Hawse fairlead for synthetic line
- Planetary geartrain at 162:1 with a series-wound motor
- Large diameter aluminum drum with integrated rope anchor
- IP68 rated sealing and stainless steel fasteners
- Remote switch with 12 ft lead
Caring for synthetic rope
Synthetic line is lighter to handle than wire, but it is sensitive to abrasion and heat. Dirt and grit work into the fibers and wear them from the inside, so rinse the rope after muddy outings and let it dry completely before storing it. Keep it spooled with even tension and avoid dragging it over sharp rock edges.
Inspect the rope for cuts, fused strands and soft or glazed spots, since these signal damage that a visual check may miss at first. Store the rope out of direct sun and away from fuel or chemicals, and replace it when the damage is more than surface wear.
- Rinse rope after muddy use and dry it fully
- Avoid dragging rope across sharp rock edges
- Store out of direct sun and away from chemicals
Specifications
| Brand | Warn |
|---|---|
| Part number | 89305 (model number from the product title; the part number field is blank) |
| UPC | 12748893059 |
| Rated line pull | 8000 lbs |
| Motor | 12V |
| Type of winch | Electric |
| Gear ratio | 162:1 |
| Remote control | Remote switch, 12 ft lead |
| Size | 24.25 in x 7.15 in x 10.52 in |
| Weight | 75 lbs |
| Synthetic rope | 100 ft of 3/8 Spydura rope |
| Fairlead | Hawse |
| Sealing | IP68 rated |
| Finish | Satin-black powder coat |
| Warranty | Limited Lifetime Warranty (per Warn) |
Vehicle fitment
The ZEON 8-S is not tied to a particular year, make or model. Fit depends on the bumper or mount you use, so compare the overall size and weight with the mounting space before installing it.
It is suited to general truck and SUV use. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Synthetic rope needs a hawse fairlead, and this winch is supplied with one. Keep the rope clean and inspect it for abrasion before each recovery. If you move the control pack, the relocation kit is required and is not included.
What’s included
The specifications list 100 ft of 3/8 Spydura synthetic rope, a hawse fairlead and a remote switch with a 12 ft lead.
Not included: the relocation kit needed for remote control pack mounting.
