Overview
The Warn 9.5cti is a 12V electric recovery winch rated for a 9,500 lb single-line pull, catalogued as model 97550 with UPC 1274897550. Warn positions it as a balance of tough construction and modern controls for trucks and SUVs that need fast line speeds and dependable off-road recovery.
The new contactor uses cadmium-plated copper contacts for heat resistance and duty cycle, and the weather sealing has been upgraded. A motor-mounted thermometric sensor sends motor temperature to an indicator lamp on the remote, so heat can be seen before the winch slows. The pistol-grip remote has been redesigned for ergonomics, durability and sealing. The winch is aimed at trucks and SUVs.
Key features
- 9,500 lb rated single-line pull with fast line speeds
- New contactor with cadmium-plated copper contacts for heat resistance and duty cycle
- Motor-mounted thermometric sensor with temperature indicator lamp on the remote
- Redesigned pistol-grip remote with LED indicator and 12 ft lead
- 3-stage planetary gear train at 156:1 with sliding ring gear freespool clutch
- Cast aluminum-alloy housing, integrated control box and extreme-duty sealing
- Chip-resistant high-gloss black powder-coated finish with roller fairlead
Reading the temperature indicator
The motor-mounted sensor gives the operator a heat reading on the remote, which helps with pacing a recovery. A lamp that starts to show heat is a cue to pause, let the motor cool and resume at a steadier pace. Repeated long pulls without rest are the usual reason a winch overheats, so the indicator is most useful when it is checked during the pull rather than after.
Good habits help the sensor do its job. Keep the remote and its LED clean and dry, and check the lead for cuts after rough trail use. Spool the rope evenly, use snatch blocks where the angle calls for them, and avoid stacking long pulls back to back when the lamp is already warm.
- Pause and let the motor cool when the lamp warms
- Keep the remote LED clean and visible
- Use snatch blocks when the pull angle is steep
Specifications
| Brand | Warn |
|---|---|
| Part number | 97550 |
| UPC | 1274897550 |
| Rated line pull | 9,500 lbs (4310 kg) |
| Motor | 12V DC, series wound |
| Electrical controls | Contactor |
| Remote control | Remote switch with LED indicator, 12 ft lead |
| Geartrain | 3-stage planetary, 156:1 gear ratio |
| Clutch | Sliding ring gear (freespool) |
| Brake | Automatic direct drive cone |
| Drum diameter and length | 2.5 in diameter, 9.0 in length |
| Mounting bolt pattern | 10.0 in x 4.5 in |
| Winch dimensions | 23.1 in L x 6.3 in D x 10.4 in H |
| Winch weight | 89 lbs |
| Wire rope | 125 ft of 5/16 in (8mm) diameter |
| Fairlead | Roller |
| Housing | Cast aluminum alloy |
| Finish | High-gloss black powder coat |
Vehicle fitment
No year, make or model is named for this winch. It is aimed at trucks and SUVs in general, so fit depends on your bumper or winch mount and the 10.0 in x 4.5 in bolt pattern. Confirm your vehicle’s year, model and trim before ordering.
Warn’s description names no specific generations, so no vehicle is excluded by name. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Plan the mounting first: the 10.0 in x 4.5 in bolt pattern has to line up with a rated winch plate or bumper. Wire the motor and contactor to a 12V supply through a fused, heavy-gauge feed, as a winch of this size requires, and route the remote lead away from the rope and fairlead. Keep hands and clothing clear of the rope whenever the winch is under load.
What’s included

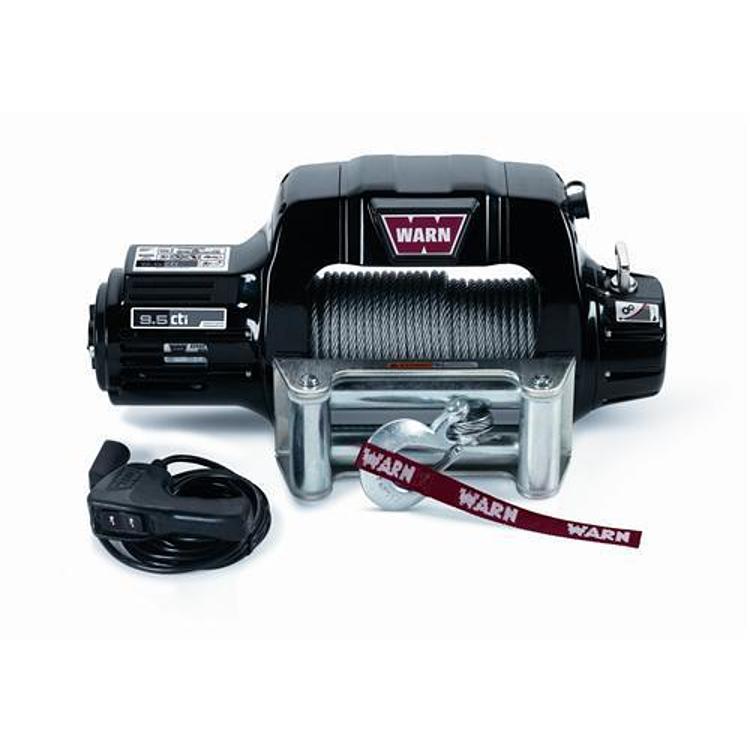

The package includes 125 ft of 5/16 in (8mm) diameter wire rope, a hook and a roller fairlead, plus a pistol-grip remote with an LED indicator and a 12 ft lead.
Not included: A winch mounting plate or bumper is not included, so plan for one before installing.
